FUEL TANK (GSX750EF)

GSX750E 1985 (F) (E01 E02 E21 E24)

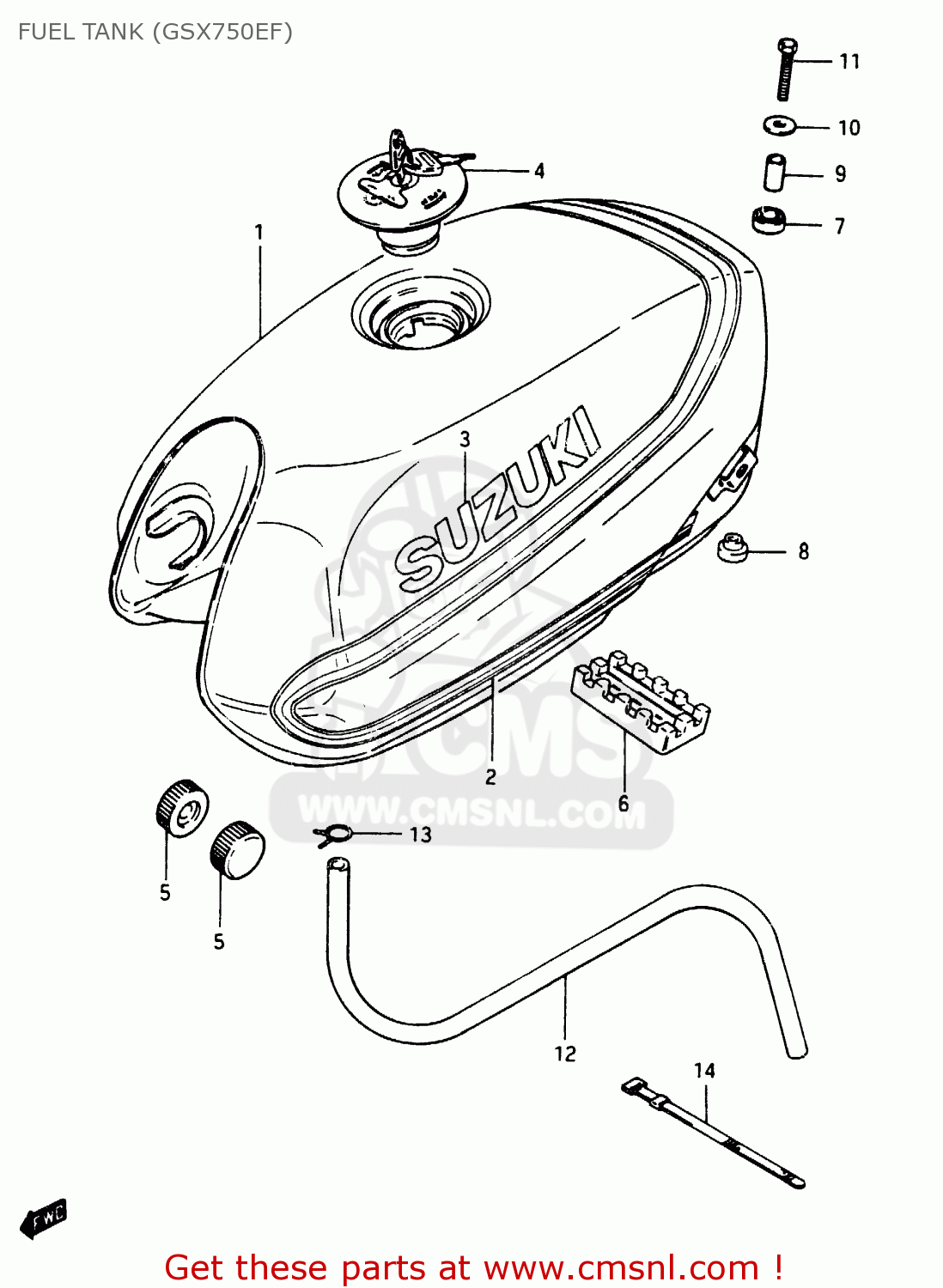

Fuel tank (gsx750ef) diagram GSX750E 1985 (F) (E01 E02 E21 E24)

prices are in EUR

ref

part #

description

quantity

49100313107JH
ref: 1

TANK, FUEL

€ 675.50

68110313607JF
ref: 2

TAPE SET, FUEL TANK

€ 0.00

681113320007G
ref: 3

EMBLEM

€ 14.00

4420031310KEY
ref: 4

CAP, FILLER

€ 99.50

0932910016
ref: 5

CUSHION

€ 3.00

4454134500
ref: 6

CUSHION,FUEL TANK CTR

€ 13.00

0932014013
ref: 7

CUSHION

€ 3.00

0932010020
ref: 8

CUSHION

€ 4.00

0918006072
ref: 9

SPACER

€ 2.00

0916006072
ref: 10

WASHER (6.5X24X1.6)

€ 2.00

0110706306
ref: 11

BOLT

€ 2.50

0934305165
ref: 12

HOSE,FUEL

€ 13.00

0940108402
ref: 13

CLIP

€ 1.50

0940800021
ref: 14

CLIP(ID:16)

€ 1.50
