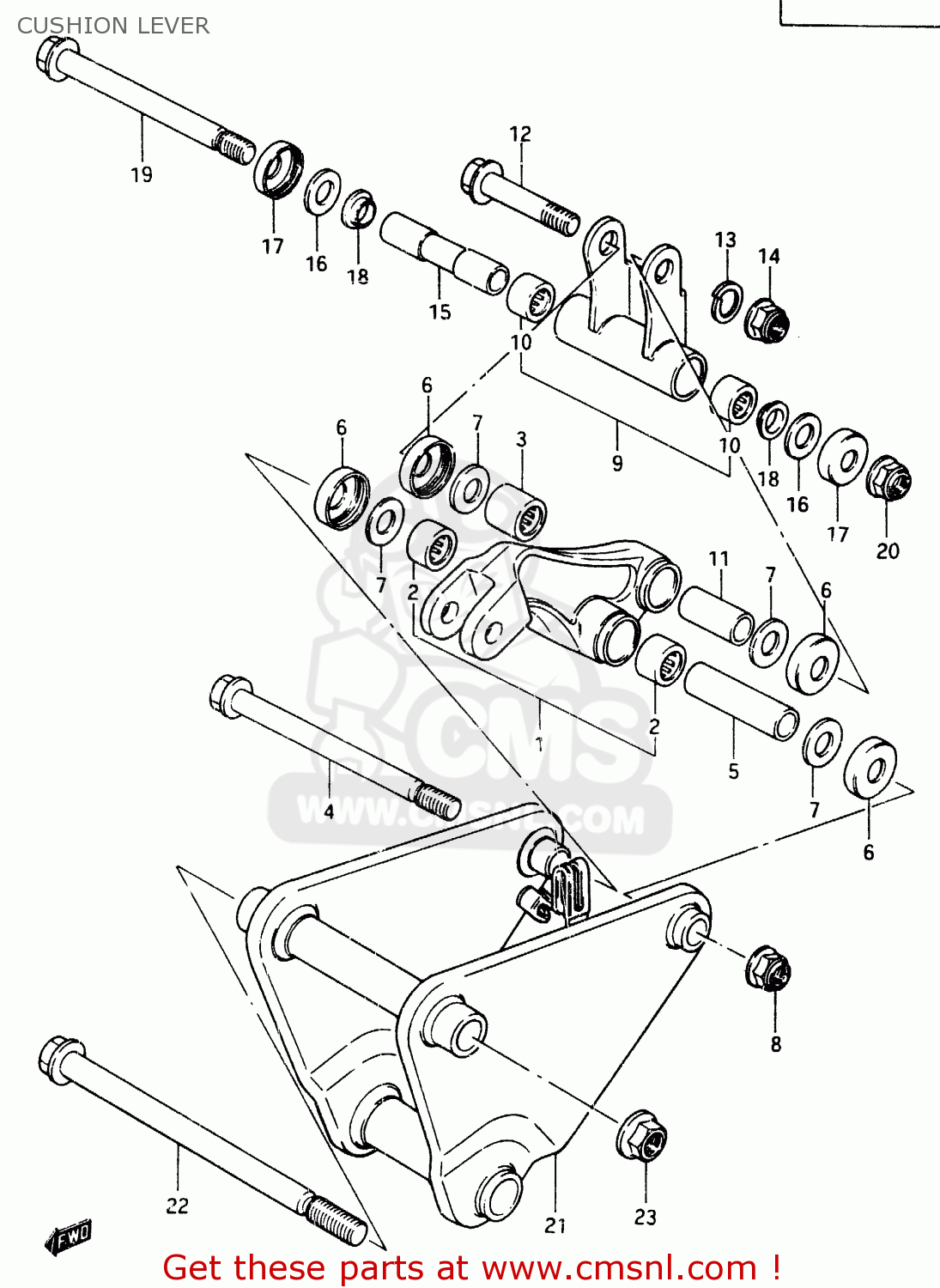

CUSHION LEVER

ref

part #

description

quantity

1

6260033811
ref: 1

LEVER SET,REAR CUSHION

€ 0.00

2

0926317011
ref: 2

ROLLER BEARING (17X24X2

€ 14.50

3

0926317020
ref: 3

ROLLER BEARING (17X24X25)

€ 19.00

4

6262131300
ref: 4

SHAFT,RR CUSHION LEVER

€ 15.50

5

6262315500
ref: 5

SPACER,REAR CUSHION LEVER

€ 11.50

6

6126241500
ref: 6

COVER,RR SWGARM DUST SEAL

€ 7.50

7

0821112281
ref: 7

WASHER

€ 2.50

8

0831931125
ref: 8

NUT 12MM

€ 3.00

9

6260031810
ref: 9

ROD SET,REAR CUSHION

€ 47.50

10

0926317011
ref: 10

ROLLER BEARING (17X24X2

€ 14.50

11

6264615500
ref: 11

SPACER,RR CUSHION LEVER ROD UP

€ 11.50

12

6264815500
ref: 12

BOLT, UPPER

€ 8.00

13

0832121125
ref: 13

WASHER

€ 1.50

14

0831921125
ref: 14

NUT

€ 3.50

15

6265615500
ref: 15

SPACER,RR CUSHION LVR ROD LOW

€ 187.00

16

0821112281
ref: 16

WASHER

€ 2.50

17

6126241500
ref: 17

COVER,RR SWGARM DUST SEAL

€ 7.50

18

6262631301
ref: 18

SPACER,REAR CUSHION ROD

€ 8.00

19

6265731301
ref: 19

BOLT,CUSHION ROD

€ 19.00

20

0831931125
ref: 20

NUT 12MM

€ 3.00

21

6241031310
ref: 21

BRACKET,REAR SHOCK ABSORBER

€ 0.00

22

6241331300
ref: 22

SHAFT,SHOCK ABSORBER BRACKET

€ 9.50

23

0831616125
ref: 23

NUT

€ 2.50

all assemblies
