SHOCK ABSORBER
GSX750E 1985 (F) (E01 E02 E21 E24)

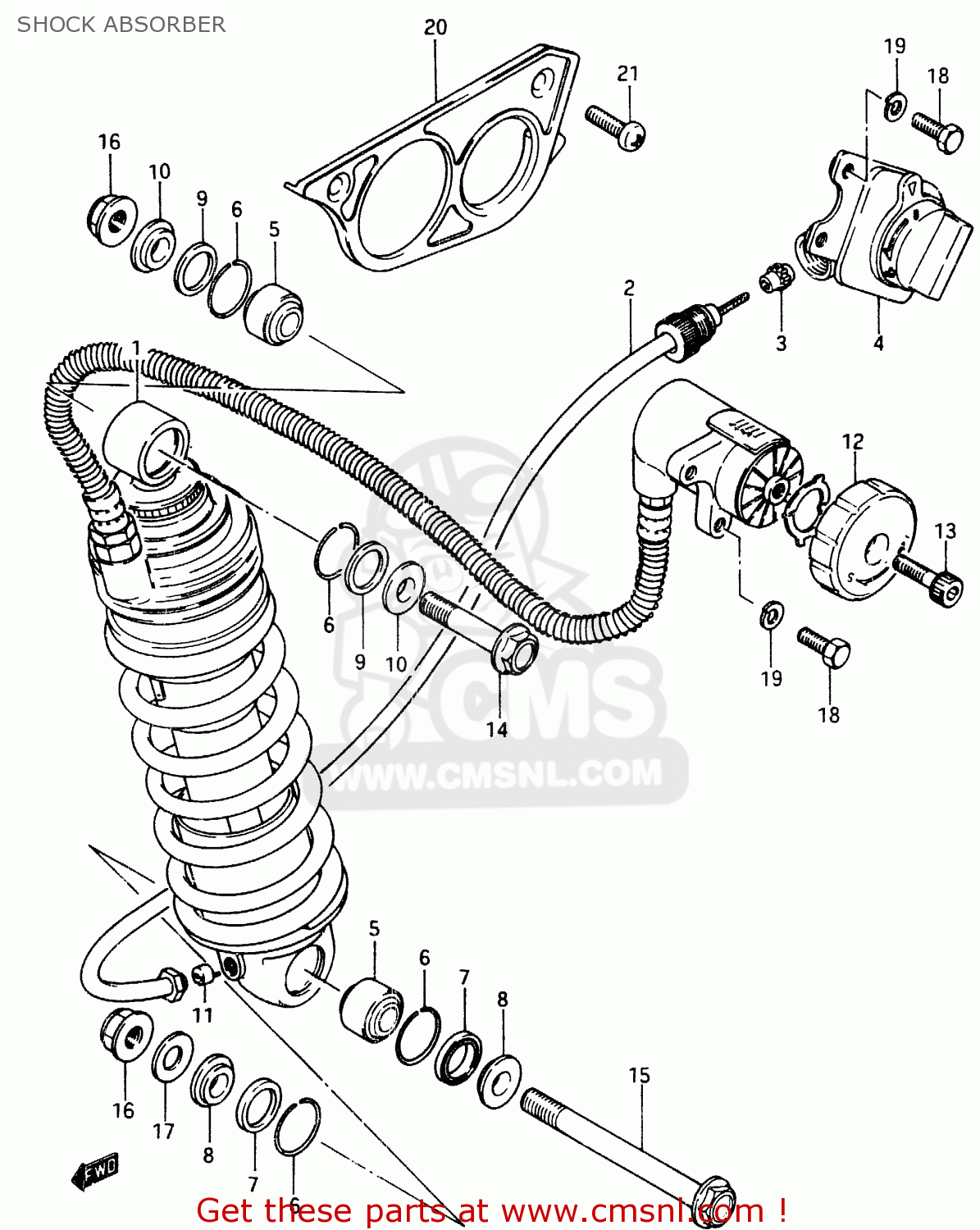

Shock absorber diagram GSX750E 1985 (F) (E01 E02 E21 E24)
SHOCK ABSORBER GSX750E 1985 (F) (E01 E02 E21 E24)
×
prices are in EUR
ref
part #
description
quantity
1
6210031340
ref: 1
MONO GSX750ESG
€ 1,077.50
2
6235831340
ref: 2
CABLE,CONTROL
€ 62.50
3
6235631340
ref: 3
GEAR
€ 9.00
4
6235031300
ref: 4
ADJUSTER
€ 128.50
5
6217520920
ref: 5
BEARING,REAR SHOCK ABSORBER
€ 66.00
6
6227720900
ref: 6
RING
€ 1.50
7
6222620900
ref: 7
DUST SEAL
€ 8.00
8
6268420900
ref: 8
SPACER
€ 8.00
9
6222631300
ref: 9
SEAL,DUST
€ 8.00
10
6268431300
ref: 10
COLLAR
€ 8.00
11
6235531301
ref: 11
CAM,DAMPER ADJUSTER
€ 7.00
12
6237531340
ref: 12
PLATE,LEVELING
€ 69.50
13
6237631300
ref: 13
BOLT
€ 2.50
14
0910310064
ref: 14
BOLT(10X50)
€ 4.50
15
0910310063
ref: 15
BOLT(10X115)
€ 5.00
16
0831931107
ref: 16
NUT
€ 3.00
17
0832221108
ref: 17
WASHER
€ 2.50
18
0110706165
ref: 18
BOLT 6X16
€ 2.00
19
0832121064
ref: 19
WASHER,LOCK
€ 2.00
20
6236131300
ref: 20
COVER,REAR SHOCK ABSORBER ADJUSTER
€ 6.00
21
0212206205
ref: 21
SCREW
€ 2.00
