CAM CHAIN

GSX750E 1985 (F) (E01 E02 E21 E24)

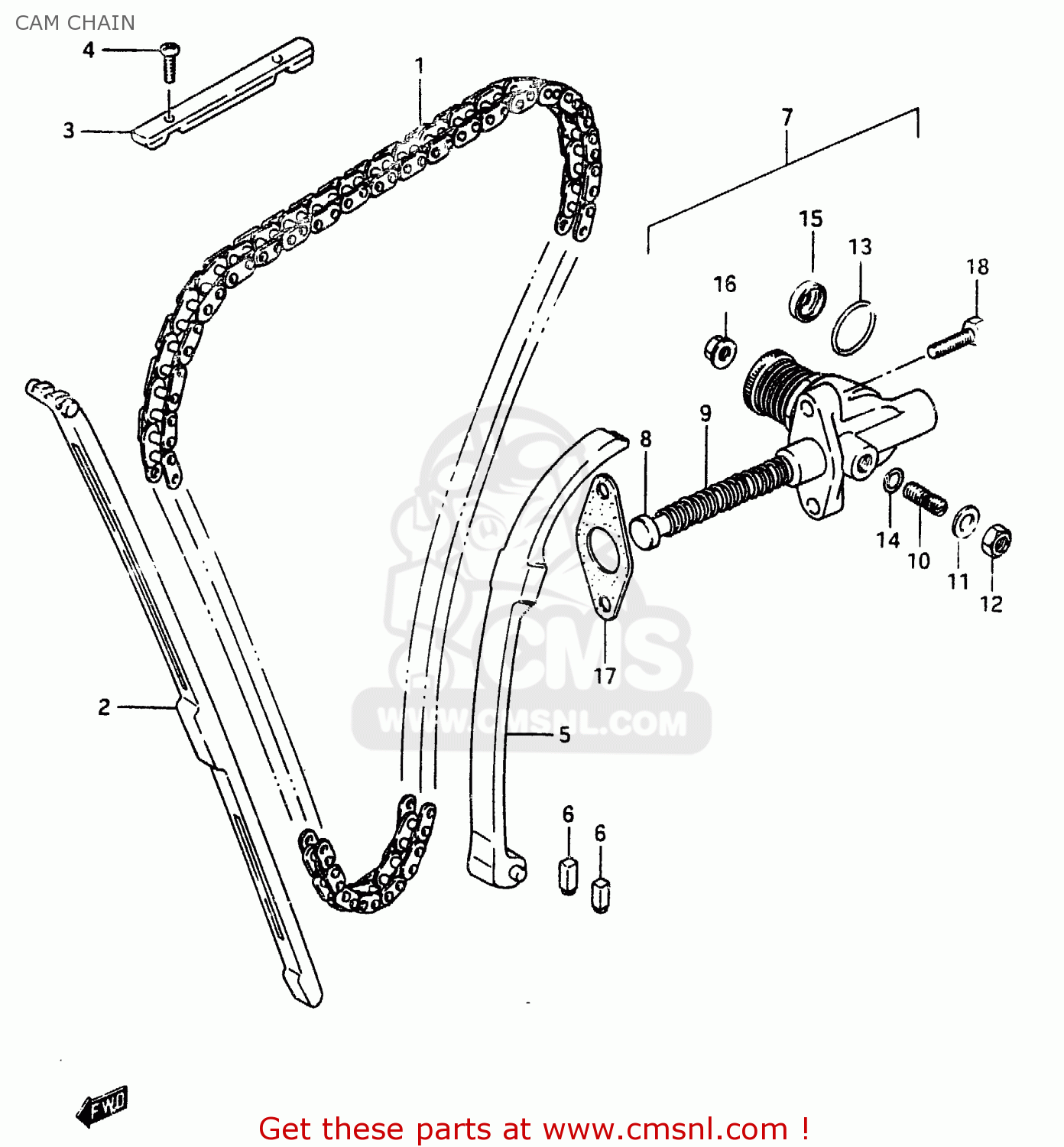

Cam chain diagram GSX750E 1985 (F) (E01 E02 E21 E24)

CAM CHAIN GSX750E 1985 (F) (E01 E02 E21 E24)
CAM CHAIN GSX750E 1985 (F) (E01 E02 E21 E24)
CAM CHAIN GSX750E 1985 (F) (E01 E02 E21 E24)
prices are in EUR
ref
part #
description
quantity
1
1276045040
ref: 1
CHAIN,CAMSHAFT DRIVE(120L)
1276045040
€ 112.00
2
1277131301
ref: 2
GUIDE,CAM CHAIN NO.1
1277131301
€ 30.50
3
1278247040
ref: 3
GUIDE,CAM CHAIN NO.3
1278247040
€ 89.50
4
0211205128
ref: 4
SCREW
€ 2.50
5
1281031301
ref: 5
TENSIONER
1281031301
€ 49.00
6
1281444101
ref: 6
CUSHION,CAM CHAIN TENSIONER
1281444101
€ 8.50
7
1283033302
ref: 7
ADJUSTER ASSY,TENSIONER
1283033302
€ 116.50
8
1283333201
ref: 8
ROD,PUSH
€ 17.00
9
0944012029
ref: 9
SPRING
0944012029
€ 3.50
10
1283845010
ref: 10
SCREW,TENSIONER ADJUST
€ 6.00
11
0832211084
ref: 11
WASHER
0832211084
€ 1.50
12
0831011085
ref: 12
NUT
€ 1.50
13
0928021013
ref: 13
O RING(D:2.4,ID:20.8)
0928021013
€ 4.50
14
0928006005
ref: 14
O RING(D:1.9,ID:5.7)
0928006005
€ 2.50
15
0928410006
ref: 15
SEAL,OIL(10X16X4)
0928410006
€ 4.00
16
0831616064
ref: 16
NUT 6MM
0831616064
€ 2.50
17
1283731310
ref: 17
GASKET,TENSIONER ADJUSTER (MCA)
1283731310
€ 7.50
18
0912806022
ref: 18
SCREW
€ 2.50
