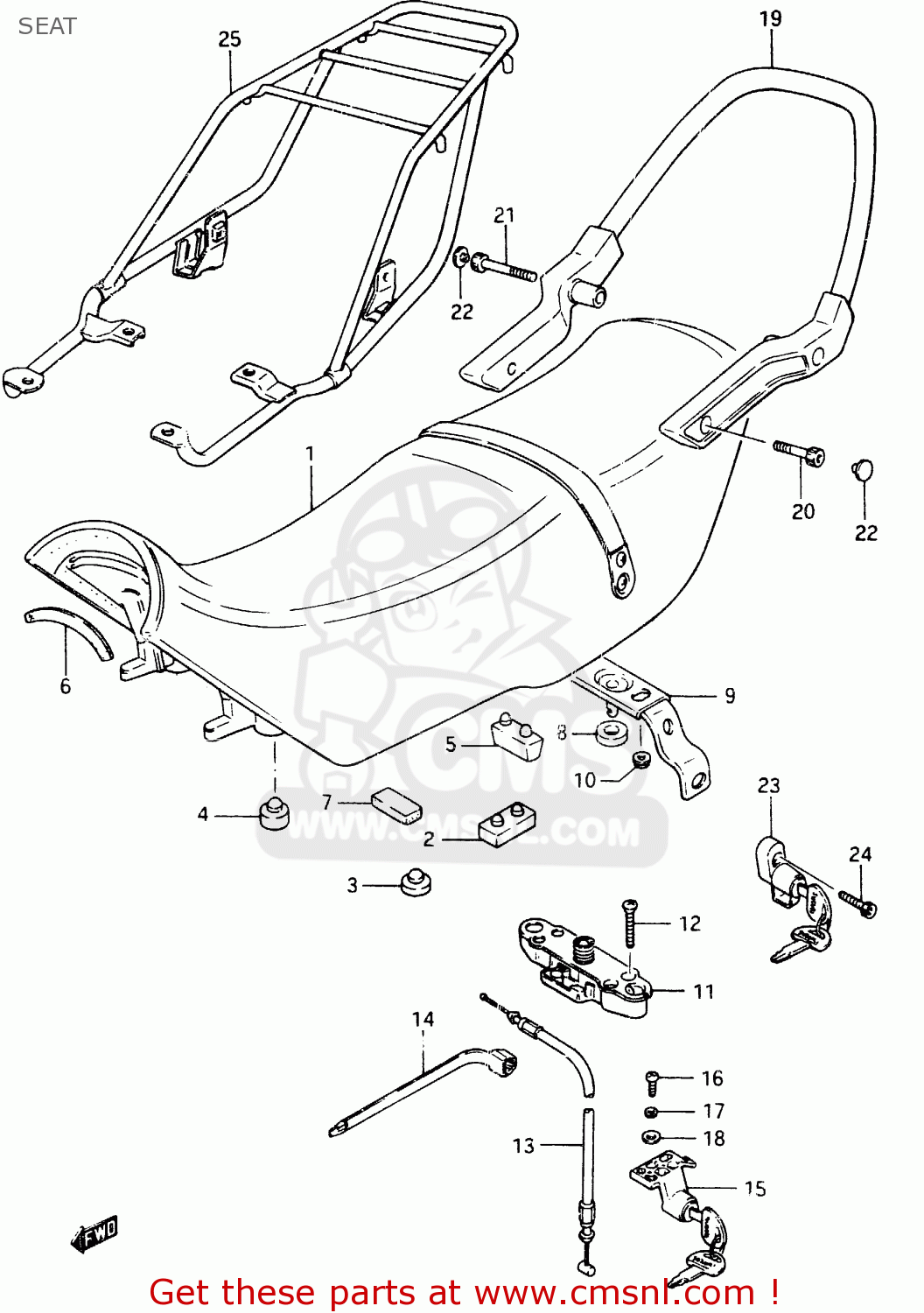

SEAT

ref

part #

description

quantity

1

451003132048H
ref: 1
MODEL F

SEAT ASSY (BLACK)

€ 319.00

1

451003134158R
ref: 1
MODEL G

SEAT ASSY (BLACK)

€ 292.00

1

451003131048H
ref: 1
MODEL F E39

SEAT ASSY (BLACK)

€ 0.00

1

451003133158R
ref: 1
MODEL G E39

SEAT ASSY (BLACK)

€ 0.00

1

451003136048H
ref: 1
E22

SEAT ASSY (BLACK)

€ 319.00

2

4514931300
ref: 2

CUSHION,SEAT(40X20X15)

€ 2.00

3

0932110012
ref: 3

CUSHION

€ 3.00

4

0932110001
ref: 4

CUSHION

€ 2.50

5

4514945330
ref: 5

CUSHION,SUPPORT(50X25X32)

€ 2.00

6

4525631300
ref: 6

WEATHERSTRIP,SEAT

€ 15.00

7

4525515510
ref: 7

CUSHION,TOOL(40X30X15)

€ 4.00

8

4521331300
ref: 8

CUSHION

€ 1.50

9

4521531300
ref: 9

PLATE,SEAT LOCK STRIKE

€ 9.00

10

0831626066
ref: 10

NUT

€ 2.00

11

4522013601
ref: 11

LOCK ASSY,SEAT STRIKER

€ 47.00

12

0211206306
ref: 12

SCREW,6X30

€ 2.50

13

4528031300
ref: 13

CABLE,SEAT LOCK

€ 9.50

14

0940718402
ref: 14

CLAMP(L:165)

€ 2.50

15

4570031300KEY
ref: 15

LOCK ASSEMBLY,SEAT

€ 35.00

16

0211205105
ref: 16

SCREW

€ 2.00

17

0832121055
ref: 17

WASHER,LOCK

€ 3.00

18

0832221055
ref: 18

WASHER,5MM

€ 2.50

19

4621031300
ref: 19

HANDLE, PILLION RIDER

€ 184.00

20

0711008305
ref: 20

BOLT, REAR (8X30)

€ 3.00

21

0711008755
ref: 21

BOLT, REAR

€ 8.50

22

0925006002
ref: 22

CAP(OD:19.5)

€ 2.00

23

9570031300KEY
ref: 23

LOCK SET

€ 49.50

24

0711006165
ref: 24

BOLT

€ 3.00

25

4631031300
ref: 25
OPT

CARRIER, SPORTS

€ 54.50
