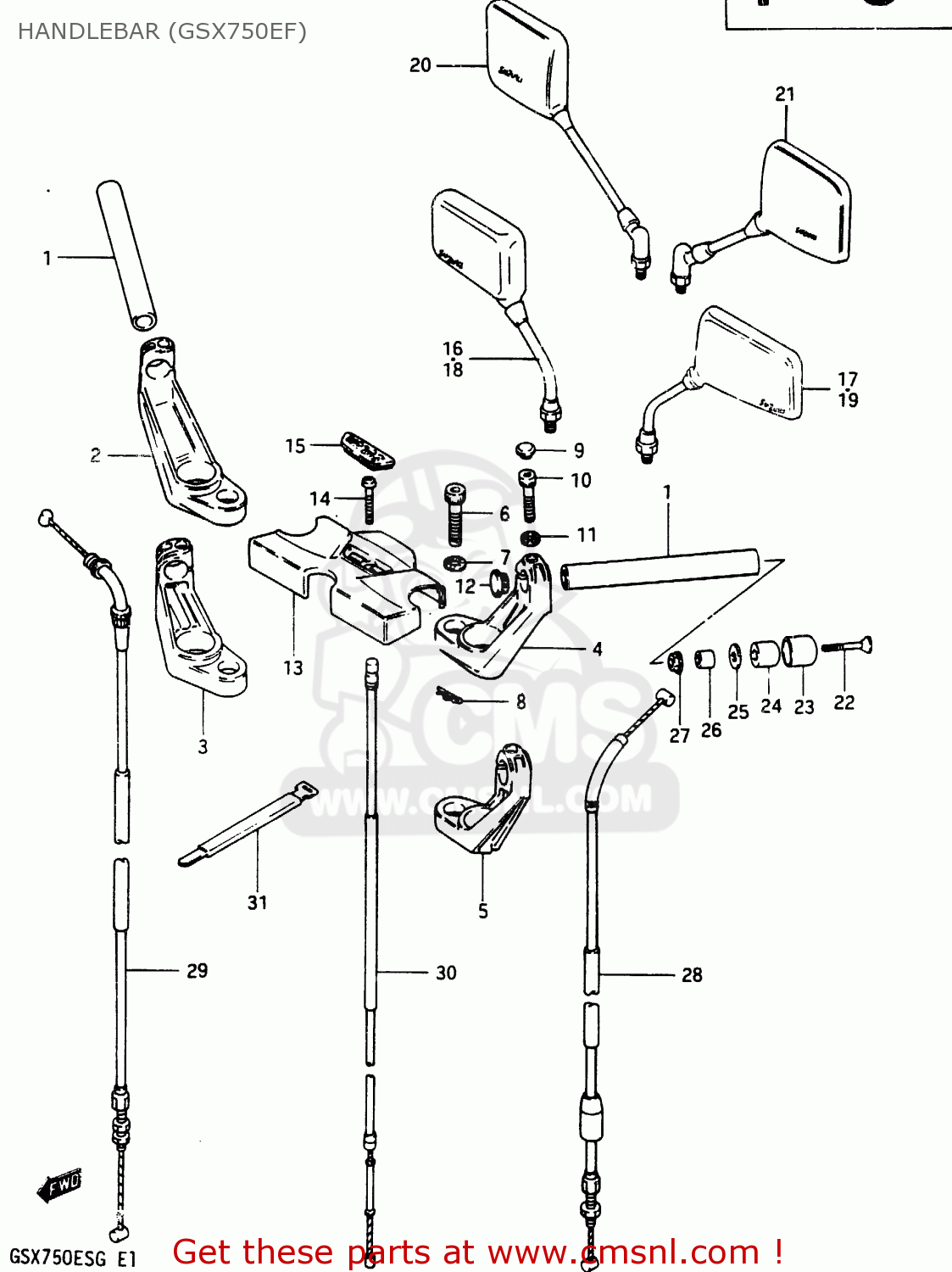

HANDLEBAR (GSX750EF)

ref

part #

description

quantity

1

5611131330
ref: 1

HANDLEBAR

€ 20.00

2

5621131311
ref: 2

HOLDER,HANDLEBAR,RIGHT

€ 28.50

3

5621131301
ref: 3

HOLDER,HANDLEBAR,RIGHT

€ 163.50

4

5622131311
ref: 4

HOLDER,HANDLEBAR,LEFT

€ 124.00

5

5622131301
ref: 5

HOLDER,HANDLEBAR,LEFT

€ 163.50

6

0910610024
ref: 6

BOLT 10X50

€ 3.00

7

0916410005
ref: 7

WASHER

€ 6.50

8

0938510005
ref: 8

CLIP

€ 1.50

9

0925006004
ref: 9

CAP(OD:14.5)

€ 1.50

10

0711008355
ref: 10

BOLT 8X35

€ 4.00

11

0916408015
ref: 11

WASHER

€ 3.00

12

5721543401
ref: 12

CAP,GRIP END

€ 4.00

13

5617031310
ref: 13

PAD,HANDLE

€ 27.50

14

0211206168
ref: 14

SCREW

€ 2.50

15

5617400A00
ref: 15

CAP,HANDLE PAD

€ 8.00

16

5650031301
ref: 16

MIRROR ASSEMBLY,RIGHT

€ 48.50

17

5660031301
ref: 17

MIRROR ASSEMBLY,REAR VIEW

€ 47.00

18

5650031321
ref: 18
E24

MIRROR, REAR VIEW RH

€ 43.50

19

5660031321
ref: 19
E24

MIRROR, REAR VIEW LH

€ 43.50

20

5650010020
ref: 20
E2,E21

MIRROR ASSEMBLY,REAR VIEW

€ 90.00

21

5660010020
ref: 21
E2,E21

MIRROR ASSEMBLY,REAR VIEW

€ 92.00

22

0213206655
ref: 22

SCREW 6X65

€ 2.50

23

5627431300
ref: 23

CAP,BALANCER

€ 223.50

24

5627149400
ref: 24

BALANCER,HANDLE

€ 19.50

25

5627534400
ref: 25

SPACER,BALANCER

€ 2.50

26

5627204700
ref: 26

EXPANDER,BALANCER

€ 5.00

27

0915906024
ref: 27

NUT

€ 2.00

28

5820031311
ref: 28

CABLE ASSY,CLUTCH

€ 30.00

28

5820031300
ref: 28

CABLE ASSY,CLUTCH

€ 22.50

29

5830031311
ref: 29

CABLE ASSEMBLY,THROTTLE

€ 31.00

29

5830031301
ref: 29

CABLE ASSY,THROTTLE

€ 26.50

30

5841031310
ref: 30

CABLE COMP,STARTER

€ 9.50

30

5841031300
ref: 30

CABLE COMP,STARTER

€ 14.00

31

0940718301
ref: 31

CLAMP

€ 6.00

all assemblies
