CARBURETOR
GSX750E 1985 (F) (E01 E02 E21 E24)

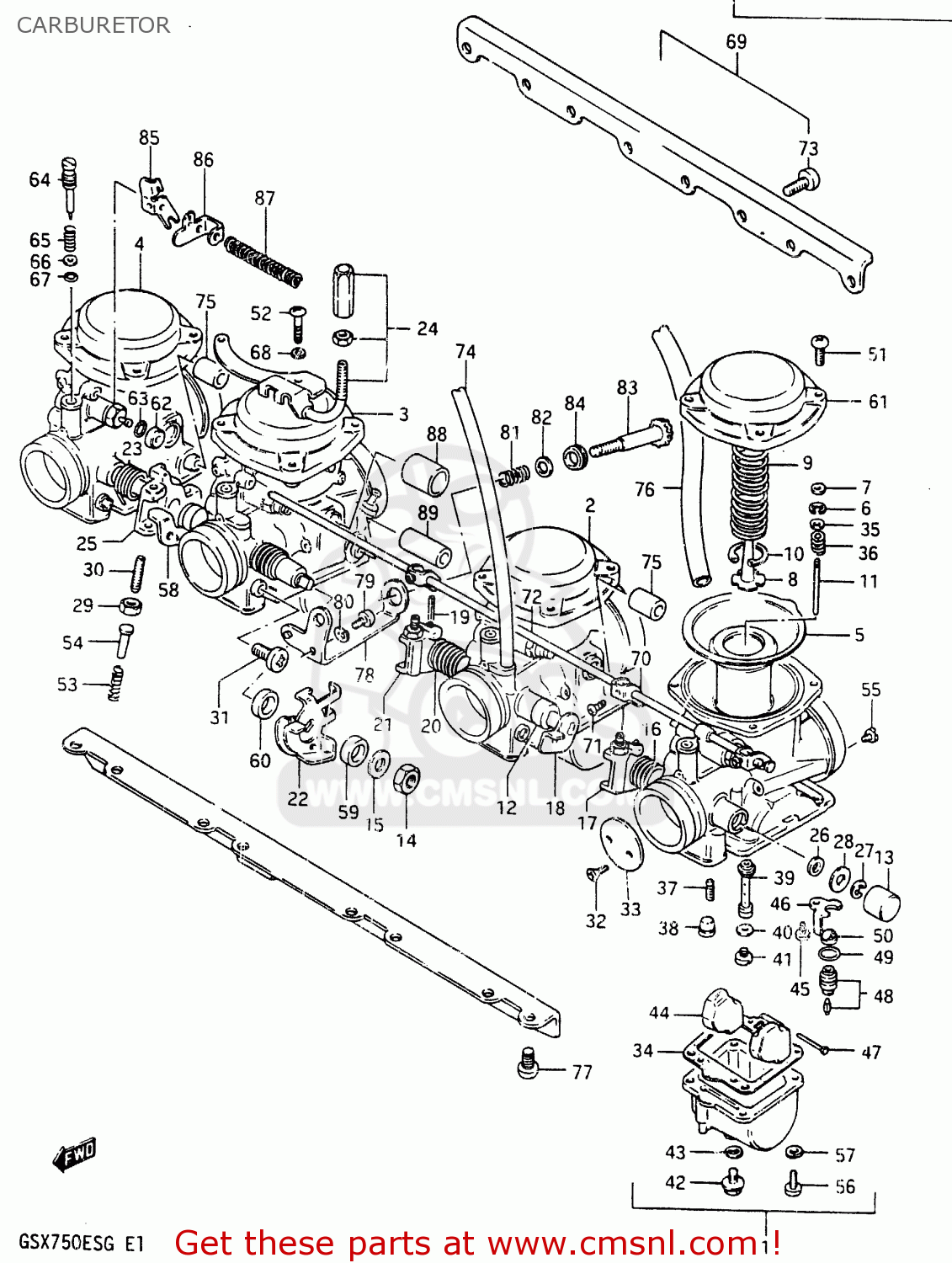

Carburetor diagram GSX750E 1985 (F) (E01 E02 E21 E24)
CARBURETOR GSX750E 1985 (F) (E01 E02 E21 E24)
×
prices are in EUR
ref
part #
description
quantity
1
1320131360
ref: 1
CARBURETOR, LH
€ 0.00
1
1320131320
ref: 1
E18
CARBURETOR, LH
€ 181.50
2
1320231360
ref: 2
CARBURETOR, ML
€ 0.00
2
1320231320
ref: 2
E18
CARBURETOR, ML
€ 0.00
3
1320331360
ref: 3
CARBURETOR, MR
€ 0.00
3
1320331320
ref: 3
E18
CARBURETOR, MR
€ 0.00
4
1320431360
ref: 4
CARBURETOR, RH
€ 0.00
4
1320431320
ref: 4
E18
CARBURETOR, RH
€ 0.00
5
1350031300
ref: 5
DIAPHRAGM,CARBURETOR
€ 184.50
6
1339431210
ref: 6
CLIP,NEEDLE
€ 3.50
7
1338744030
ref: 7
RING
€ 5.00
8
1338944030
ref: 8
HOLDER,GUIDE
€ 10.50
9
1350331300
ref: 9
SPRING,DIAPHRAGM
€ 8.00
10
1358144030
ref: 10
E RING
€ 6.50
11
1338345410
ref: 11
NEEDLE,JET
€ 15.00
11
1338331310
ref: 11
E18
NEEDLE, JET (5D10-3)
€ 13.00
12
1355749200
ref: 12
ML,MR
GASKET
€ 7.00
13
1357847070
ref: 13
RH,LH
CAP
€ 5.50
14
0831022086
ref: 14
MR
NUT
€ 1.50
15
1360647070
ref: 15
MR
WASHER
€ 3.00
16
1357347070
ref: 16
LH
SPRING,THROTTLE SHAFT
€ 6.00
17
1355047070
ref: 17
LH
SHAFT,THROTTLE
€ 44.50
18
1355045400
ref: 18
ML
SHAFT,THROTTLE
€ 0.00
19
1356347070
ref: 19
ML
PIN,THROTTLE SHAFT
€ 0.00
20
1357345110
ref: 20
ML
SPRING,THROTTLE SHAFT
€ 0.00
21
1355347070
ref: 21
ML
LEVER,THROTTLE SHAFT
€ 0.00
22
1355547070
ref: 22
MR
LEVER ASSEMBLY,THROTTLE
€ 0.00
23
1357347080
ref: 23
MR,RH
SPRING,THROTTLE SHAFT
€ 0.00
24
1362131300
ref: 24
MR
BRACKET,THROTTLE CABLE
€ 14.50
25
1355047090
ref: 25
RH
SHAFT,THROTTLE
€ 0.00
26
1355631210
ref: 26
SEAL
€ 4.00
27
1361744080
ref: 27
LH,RH
E RING
€ 3.50
28
1355747070
ref: 28
LH,RH
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
29
1360747070
ref: 29
LH,ML,RH
NUT
€ 4.00
30
1360547080
ref: 30
LH,ML,RH
SCREW
€ 7.00
31
1360573000
ref: 31
MR
SCREW
€ 10.50
32
1360444080
ref: 32
SCREW
€ 3.50
33
1355147090
ref: 33
VALVE,THROTTLE (BUTTERFLY)
€ 17.00
34
1325144080
ref: 34
GASKET,FLOAT CHAMBER (NAS)
€ 9.50
35
1338244030
ref: 35
WASHER
€ 3.50
36
1338844030
ref: 36
SPRING
€ 6.00
37
0949245016
ref: 37
JET,PILOT(45)
€ 12.00
37
0949240014
ref: 37
E18
JET(40)
€ 8.50
38
1335744080
ref: 38
PLUG,NEEDLE JET
€ 4.50
39
0949400473
ref: 39
JET,NEEDLE(Y-7)
€ 19.50
39
0949400416
ref: 39
E18
JET, NEEDLE (Y-7)
€ 17.00
40
1333244080
ref: 40
WASHER,NEEDLE NOZZLE
€ 2.50
41
0949123017
ref: 41
JET,MAIN(117.5)
€ 11.00
41
0949124005
ref: 41
E18
JET
€ 11.50
42
1324744080
ref: 42
PLUG,DRAIN
€ 9.50
43
1324644080
ref: 43
GASKET (NAS)
€ 3.50
44
1325044080
ref: 44
FLOAT
€ 31.00
45
0211204066
ref: 45
SCREW
€ 2.00
46
1337311400
ref: 46
PLATE,NEEDLE VALVE FITING
€ 7.00
47
1325492311
ref: 47
PIN,FLOAT
€ 2.00
48
1337011400
ref: 48
VALVE ASSEMBLY,NEEDLE
€ 40.50
49
1337444080
ref: 49
O-RING,NEEDLE VALVE
€ 6.00
50
1337665010
ref: 50
FILTER
€ 6.50
51
1360234390
ref: 51
LH:4,ML:4,MR:2,RH:4
SCREW
€ 2.50
52
0211205166
ref: 52
MR:2
SCREW
€ 2.00
53
1326844010
ref: 53
LH,ML,RH
SPRING,THROTTLE SCREW
€ 3.00
54
1357547070
ref: 54
LH,ML,RH
PIN,THROTTLE LEVER
€ 2.50
55
0949338001
ref: 55
JET,AIR(190)
€ 9.00
55
0949330005
ref: 55
E18
JET,AIR
€ 17.00
56
0211205166
ref: 56
SCREW
€ 2.00
57
0832121056
ref: 57
LOCK WASHER
€ 3.00
58
1355045410
ref: 58
MR
SHAFT,THROTTLE
€ 0.00
59
1357445110
ref: 59
MR
RING
€ 3.50
60
1357445120
ref: 60
MR
RING
€ 2.50
61
1350234390
ref: 61
COVER
€ 29.00
62
1368231210
ref: 62
CAP,STARTER VALVE
€ 5.00
63
1327847090
ref: 63
O RING
€ 2.00
64
1327947080
ref: 64
SCREW,PILOT AIR
€ 11.50
64
1327947080
ref: 64
E18
SCREW,PILOT AIR
€ 11.50
65
1326847070
ref: 65
SPRING
€ 5.00
66
1327744080
ref: 66
GASKET
€ 2.00
67
1327844080
ref: 67
O-RING
€ 4.00
68
0832121056
ref: 68
MR:2
LOCK WASHER
€ 3.00
69
1321031300
ref: 69
FLANGE ASSEMBLY,CARBURETOR
€ 0.00
70
1342244080
ref: 70
LEVER
€ 10.00
71
1360509300
ref: 71
SCREW,THROTTLE ADJUST
€ 3.50
72
1341045400
ref: 72
SHAFT,STARTER
€ 0.00
73
0211205126
ref: 73
SCREW 5X12
€ 1.50
74
1368345050
ref: 74
L:390->180
HOSE 4.5X8X390
€ 14.00
75
1368531300
ref: 75
NIPPLE,CARBURETOR
€ 14.50
76
1368311420
ref: 76
HOSE
€ 13.00
77
0211206126
ref: 77
SCREW
€ 1.50
78
1362744110
ref: 78
BRACKET,THROTTLE ADJUST
€ 12.50
79
0211205106
ref: 79
SCREW 5X10
€ 2.00
80
0832121056
ref: 80
LOCK WASHER
€ 3.00
81
1327137100
ref: 81
SPRING
€ 4.50
82
1343234390
ref: 82
WASHER
€ 1.50
83
1326734390
ref: 83
ADJUSTER
€ 15.50
84
1327634390
ref: 84
BUSH
€ 6.00
85
1341349220
ref: 85
LEVER,CHOKE CABLE
€ 4.00
86
1342149220
ref: 86
PLATE,CHOKE CABLE
€ 3.00
87
1343749220
ref: 87
SPRING,CHOKE CABLE
€ 0.00
88
1368344080
ref: 88
L:250->18
HOSE
€ 26.00
89
1368531310
ref: 89
NIPPLE,CARBURETOR
€ 18.00
