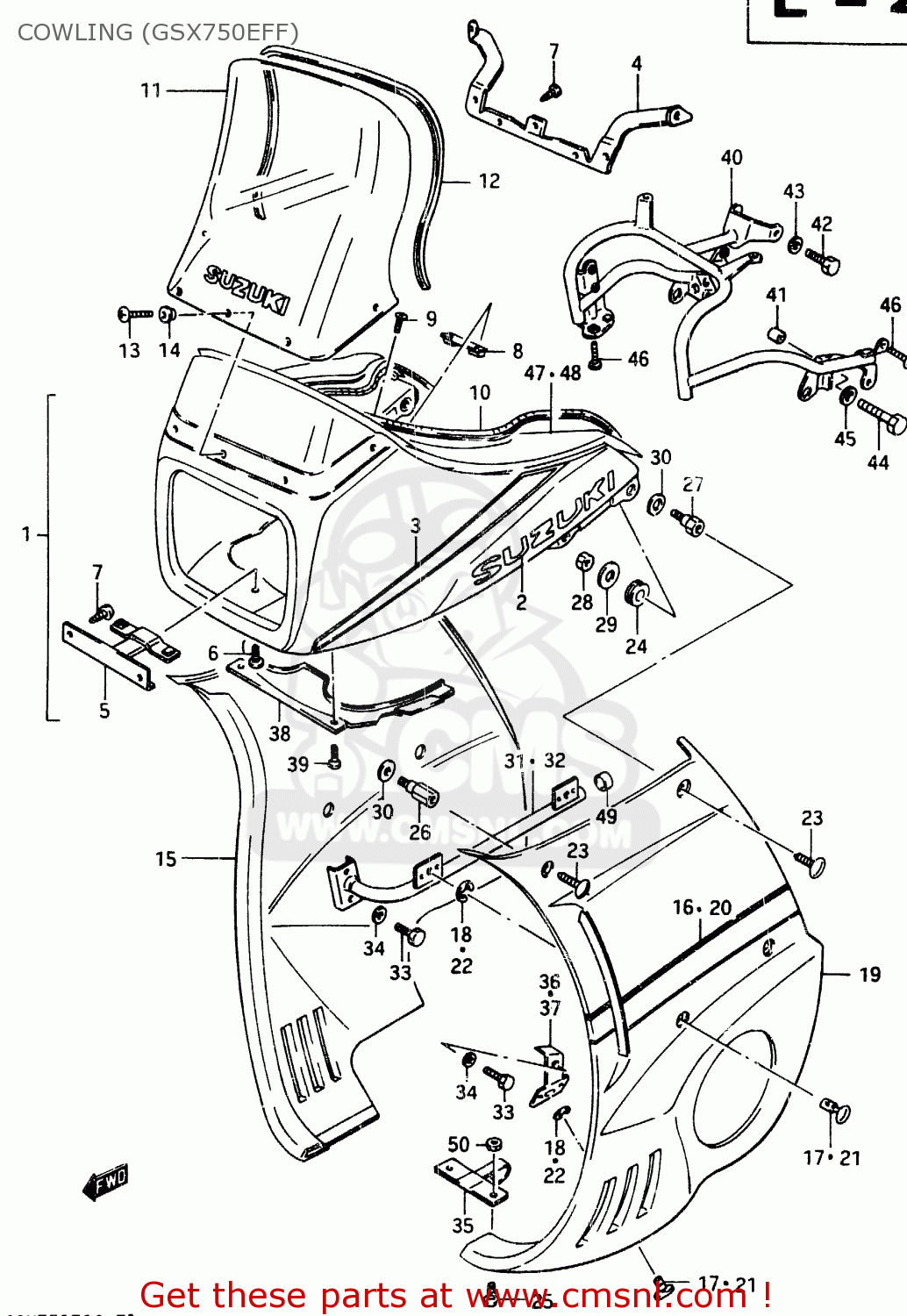

COWLING (GSX750EFF)

ref

part #

description

quantity

1

94400313907JJ
ref: 1

COWLING ASSY (WHITE/RED)

€ 745.00

1

94400313907JH
ref: 1

COWLING ASSY (WHITE/BLUE)

€ 745.00

2

681124340022R
ref: 2

EMBLEM

€ 9.50

3

68190313507JJ
ref: 3
FOR 7JJ

TAPE SET

€ 0.00

3

68190313507JH
ref: 3
FOR 7JH

TAPE SET

€ 0.00

4

9453031311
ref: 4

BRACE,COWLING,UPPER

€ 18.50

5

9454031311
ref: 5

BRACE,COWLING,LOWER

€ 10.00

6

0214205107
ref: 6

SCREW

€ 2.50

7

0321205105
ref: 7

SCREW

€ 1.00

8

9455031311
ref: 8

BRACE

€ 2.50

9

0214205105
ref: 9

SCREW

€ 2.50

10

9459331310
ref: 10

MOLDING,FUEL TANK

€ 32.00

11

9461131330
ref: 11

WINDOW

€ 318.50

11

9461131340
ref: 11
E17

WINDOW,COWLING

€ 323.00

12

9463131310
ref: 12

MOLDING

€ 18.00

12

9463131320
ref: 12
E17

MOULDING

€ 14.00

13

0214205204
ref: 13

SCREW

€ 2.00

14

0932005008
ref: 14

CUSHION

€ 5.00

15

94430313407JJ
ref: 15
FOR 7JJ

COVER, RH (WHITE/RED)

€ 174.00

15

94430313407JH
ref: 15
FOR 7JH

COVER, RH (WHITE/BLUE)

€ 174.00

16

68680313107JG
ref: 16
FOR 7JJ

TAPE SET

€ 15.50

16

68680313107JF
ref: 16
FOR 7JH

TAPE SET

€ 0.00

17

9449143400
ref: 17

FASTENER,COWL SIDE COVER

€ 8.00

18

0833211075
ref: 18

E-RING

€ 2.00

19

94440313407JJ
ref: 19
FOR 7JJ

COVER, LH (WHITE/RED)

€ 199.00

19

94440313407JH
ref: 19
FOR 7JH

COVER, LH (WHITE/BLUE)

€ 199.00

20

68690313107JG
ref: 20
FOR 7JJ

TAPE SET

€ 15.50

20

68690313107JF
ref: 20
FOR 7JH

TAPE SET

€ 0.00

21

9449143400
ref: 21

FASTENER,COWL SIDE COVER

€ 8.00

22

0833211075
ref: 22

E-RING

€ 2.00

23

9443943400
ref: 23

SCREW,COWLING SIDE COVER

€ 3.50

24

0932008018
ref: 24

CUSHION

€ 4.00

25

0214206127
ref: 25

SCREW 6X12

€ 1.50

26

9447531310
ref: 26

BOSS, FRONT

€ 5.00

27

9447631310
ref: 27

BOSS, REAR

€ 5.00

28

0831011065
ref: 28

NUT

€ 2.00

29

0916006004
ref: 29

WASHER (6.5X24X1.6)

€ 1.50

30

0916010051
ref: 30

WASHER

€ 2.00

31

9452031320
ref: 31

BRACE, RH

€ 35.50

32

9456031320
ref: 32

BRACE, LH

€ 35.50

33

0110706125
ref: 33

BOLT

€ 2.00

34

0832121064
ref: 34

WASHER,LOCK

€ 2.00

35

9457031320
ref: 35

BRACE, FRONT

€ 11.50

36

9458031310
ref: 36

BRACE, RH

€ 11.50

37

9459031310
ref: 37

BRACE, LH

€ 10.50

38

9444531310
ref: 38

COVER,COWLING,LOWER

€ 12.00

39

0321205105
ref: 39

SCREW

€ 1.00

40

9451031312
ref: 40

BRACE,COWLING

€ 98.00

41

9454949500
ref: 41

SPACER,COWLING

€ 10.50

42

0110708165
ref: 42

BOLT

€ 2.00

43

0832121084
ref: 43

WASHER,LOCK,8.

€ 2.50

44

0110708305
ref: 44

BOLT, LOWER

€ 2.50

45

0832121084
ref: 45

WASHER,LOCK,8.

€ 2.50

46

0214206125
ref: 46

SCREW 6X12

€ 2.00

47

6819731310291
ref: 47

TAPE,RIGHT

€ 8.50

48

6819831310291
ref: 48

TAPE,LEFT

€ 9.50

49

0932912004
ref: 49

CUSHION

€ 1.50

50

0831321065
ref: 50

NUT

€ 2.00
