FOOTREST
GSX750E 1985 (F) (E01 E02 E21 E24)

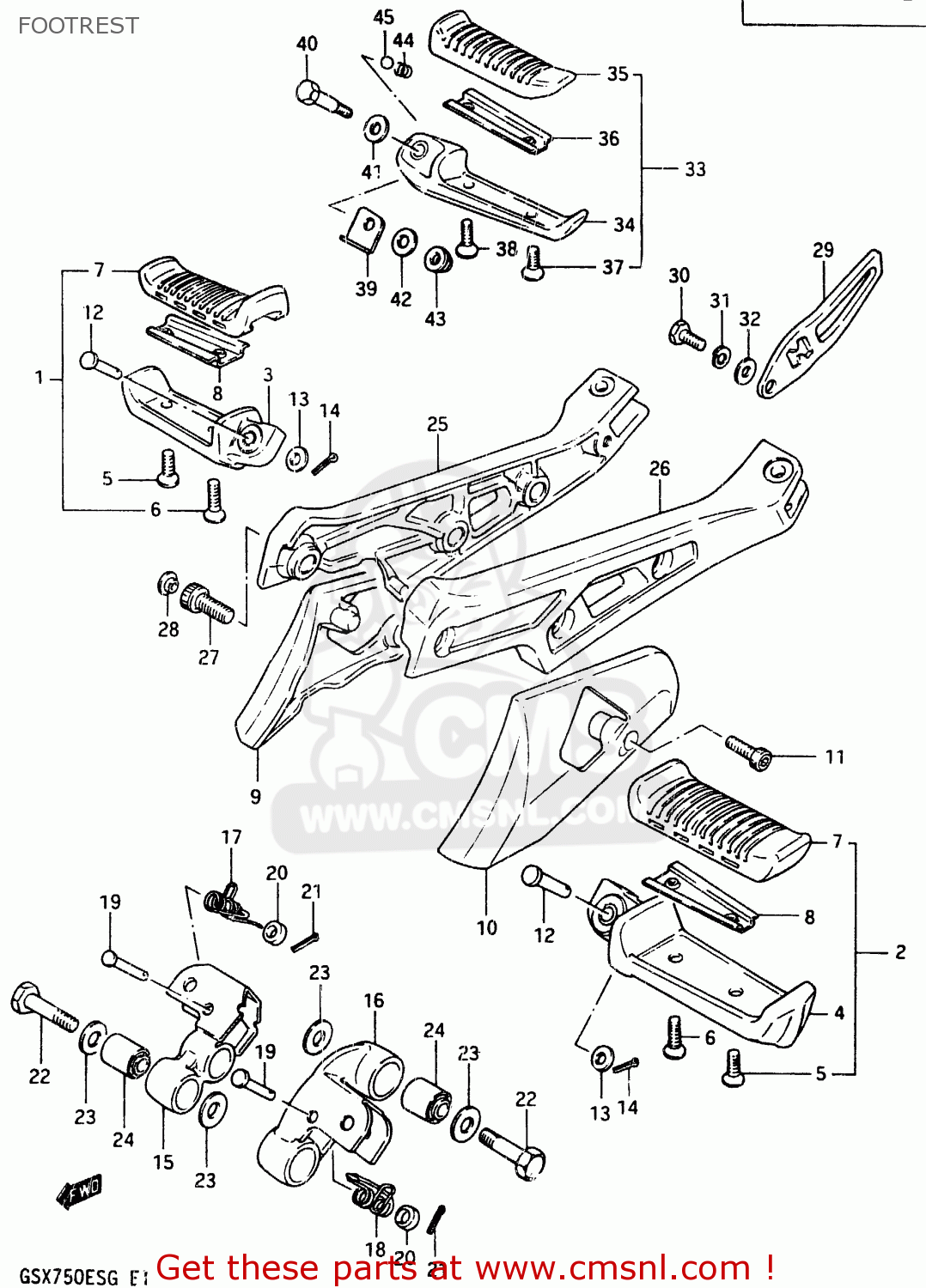

Footrest diagram GSX750E 1985 (F) (E01 E02 E21 E24)
FOOTREST GSX750E 1985 (F) (E01 E02 E21 E24)
×
prices are in EUR
ref
part #
description
quantity
1
4350131300
ref: 1
FOOTREST ASSEMBLY,FRONT,RIGHT
€ 54.50
2
4350231300
ref: 2
FOOTREST ASSEMBLY,FRONT,LEFT
€ 50.00
3
4351031300
ref: 3
BAR,FRONT FOOTREST,RIGHT
€ 18.00
4
4352031300
ref: 4
BAR,FR FOOTREST,L
€ 48.00
5
0211205128
ref: 5
SCREW
€ 2.50
6
0211205168
ref: 6
SCREW
€ 2.50
7
4355131300
ref: 7
RUBBER,FOOTREST
€ 15.50
8
4358033301
ref: 8
PLATE,FR FOOTREST RUBBER
€ 4.50
9
4358531300
ref: 9
COVER,FRONT FOOTREST,RIGHT
€ 47.50
10
4359531300
ref: 10
COVER,FRONT FOOTREST,LEFT
€ 33.50
11
0711006205
ref: 11
BOLT
€ 3.00
12
0920008034
ref: 12
PIN
€ 2.00
13
0832211084
ref: 13
WASHER
€ 1.50
14
0411120208
ref: 14
PIN 20X20
€ 1.50
15
4353031300
ref: 15
HOLDER,FRONT FOOTREST,RIGHT
€ 14.50
16
4354031300
ref: 16
HOLDER,FRONT FOOTREST,LEFT
€ 13.00
17
0944812013
ref: 17
SPRING
€ 6.00
18
0944812014
ref: 18
SPRING
€ 4.50
19
0920006010
ref: 19
PIN
€ 2.50
20
0918006074
ref: 20
SPACER (6.5X12X5.5)
€ 2.50
21
0411120208
ref: 21
PIN 20X20
€ 1.50
22
0910010191
ref: 22
BOLT 10X40
€ 2.00
23
0916010005
ref: 23
WASHER(10.5X20X3.2)
€ 2.00
24
0931910047
ref: 24
BUSH
€ 8.00
25
4381131300
ref: 25
BRACKET,MUFFLER,RIGHT
€ 119.00
26
4382131300
ref: 26
BRACKET,MUFFLER,LEFT
€ 77.50
27
0711010255
ref: 27
BOLT 10X25
€ 3.50
28
4357534500
ref: 28
CAP
€ 1.50
29
4367131300
ref: 29
GUIDE,REAR FOOT
€ 27.50
30
0110708167
ref: 30
BOLT,8X16
€ 2.00
31
0832121088
ref: 31
LOCK WASHER
€ 2.00
32
0832211088
ref: 32
WASHER
€ 2.00
33
4360031300
ref: 33
FOOTREST ASSY,PILLION,R
€ 39.50
33
4370031300
ref: 33
FOOTREST ASSEMBLY,PILLION
€ 27.50
34
4361045501
ref: 34
BAR,PILLION FOOTREST,RIGHT
€ 17.00
34
4371045501
ref: 34
BAR,PILLION FOOTREST,LEFT
€ 16.00
35
4361231300
ref: 35
RUBBER,RR FOOTREST
€ 8.00
36
4363245501
ref: 36
PLATE,RUBBER STOPPER
€ 2.50
37
0213205127
ref: 37
SCREW 5X12
€ 2.50
38
0213205167
ref: 38
SCREW 5X16
€ 2.00
39
4363509300
ref: 39
PLATE,SPRING STOP,R
€ 3.50
39
4373509300
ref: 39
PLATE,SPRING STOP
€ 3.00
40
0911106035
ref: 40
BOLT
€ 4.50
41
0918108004
ref: 41
SHIM(8.2X22X0.2)
€ 2.50
42
0832211088
ref: 42
WASHER
€ 2.00
43
0831931067
ref: 43
NUT
€ 2.50
44
0944005003
ref: 44
SPRING
€ 1.50
45
0611207004
ref: 45
BALL
€ 1.50
