STAND
GSX750E 1985 (F) (E01 E02 E21 E24)

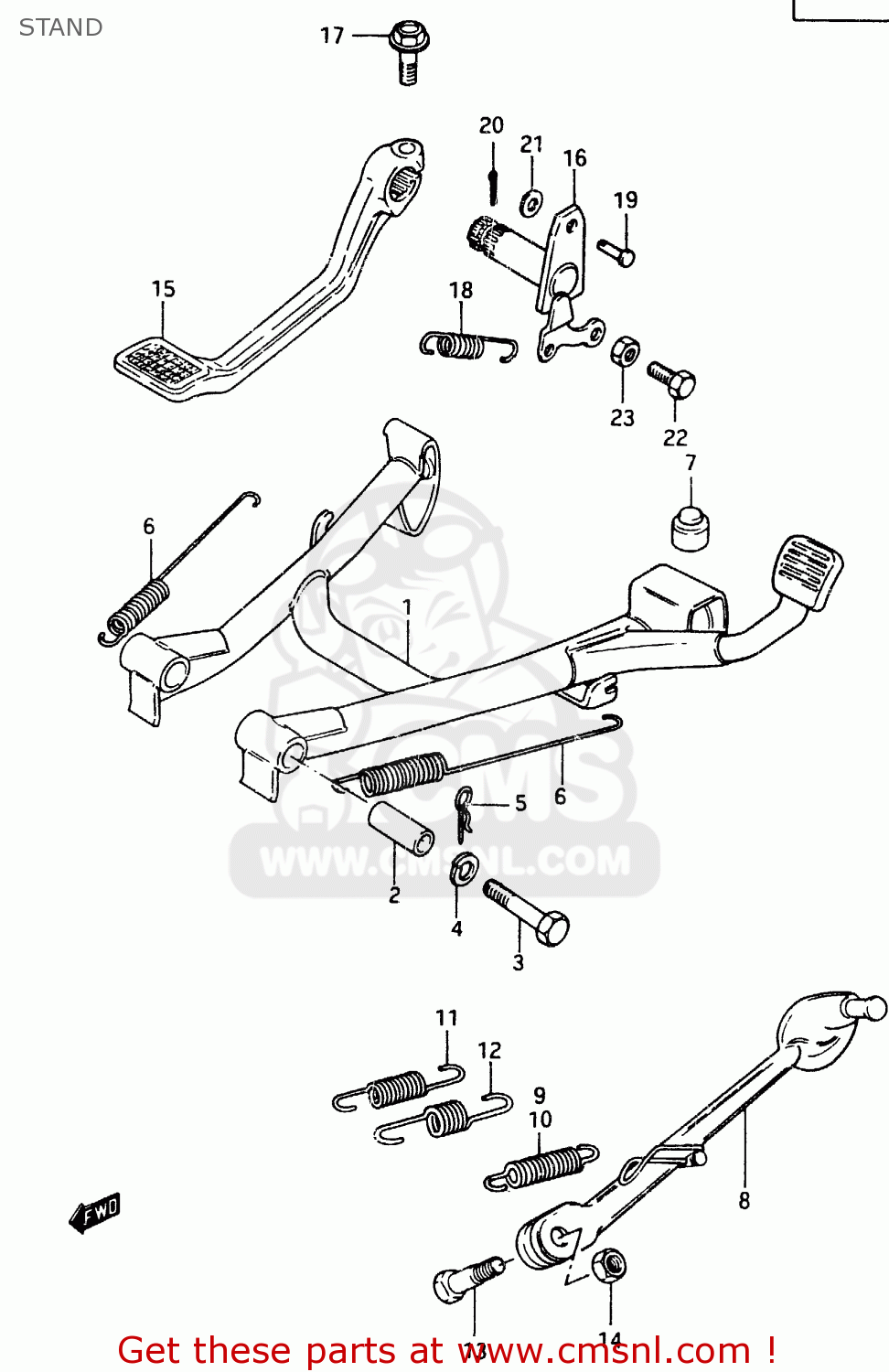

Stand diagram GSX750E 1985 (F) (E01 E02 E21 E24)
STAND GSX750E 1985 (F) (E01 E02 E21 E24)
×
prices are in EUR
ref
part #
description
quantity
1
4210031302
ref: 1
STAND,CENTER
€ 129.00
1
4210031310
ref: 1
E6,E24
STAND, CENTER
€ 0.00
2
0918010040
ref: 2
SPACER(10X16X38.8)
€ 3.00
3
0910110034
ref: 3
BOLT
€ 6.50
4
0832121107
ref: 4
WASHER,LOCK,10
€ 2.00
5
0938510001
ref: 5
CLIP
€ 1.50
6
0944317017
ref: 6
SPRING
€ 8.50
7
0932110001
ref: 7
CUSHION
€ 2.50
8
4231031301
ref: 8
STAND,SIDE
€ 44.00
8
4231031311
ref: 8
E15,E16,E18,E22,E26,
STAND, PROP
€ 55.50
9
0944317018
ref: 9
SPRING
€ 5.50
10
0944315013
ref: 10
E15,E16,E18,E26,MODE
SPRING
€ 22.50
11
0944314019
ref: 11
E22
SPRING
€ 7.00
12
0944322002
ref: 12
E22
SPRING
€ 7.00
13
0911110024
ref: 13
BOLT(10X32)
€ 4.50
14
0831022106
ref: 14
NUTM10X1.25X8
€ 2.00
15
4311131300
ref: 15
PEDAL,BRAKE
€ 72.50
16
4312031301
ref: 16
ARM,BRAKE PEDAL
€ 18.50
17
0151708258
ref: 17
BOLT
€ 2.50
18
0944314013
ref: 18
SPRING
€ 21.50
19
0920006029
ref: 19
PIN
€ 1.50
20
0411120158
ref: 20
PIN
€ 1.50
21
0832221067
ref: 21
WASHER
€ 2.00
22
0110706257
ref: 22
BOLT
€ 2.00
23
0831011067
ref: 23
NUT 6MM
€ 2.50
