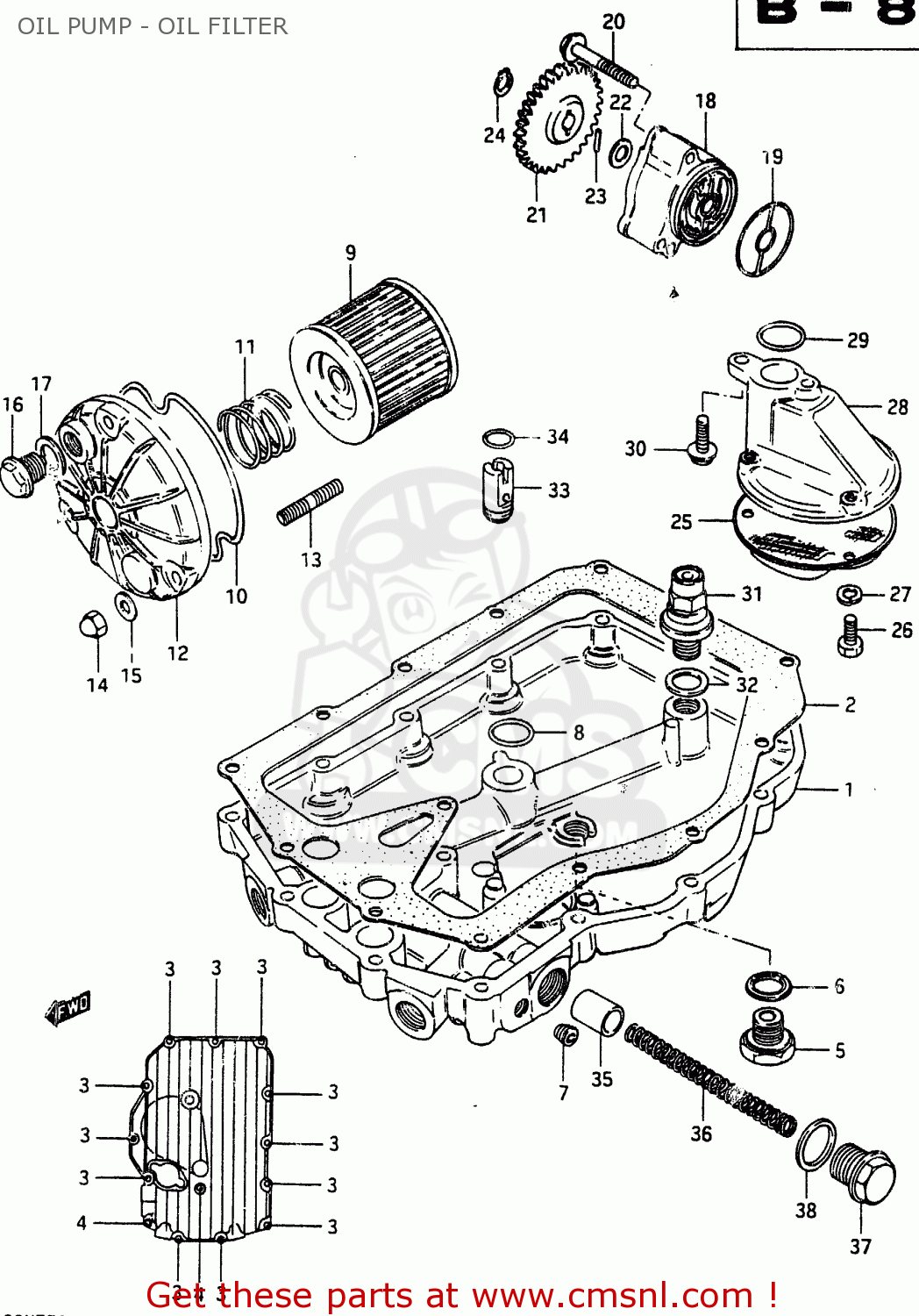

OIL PUMP - OIL FILTER - GSX750E 1985 (F) (E01 E02 E21 E24)

ref

part #

description

quantity

1

1151131300
ref: 1

PAN,OIL

€ 113.50

2

1148931301
ref: 2

GASKET,OIL PAN (MCA)

€ 20.50

3

0151706305
ref: 3

BOLT 6X30

€ 2.50

4

0151706404
ref: 4

BOLT

€ 2.00

5

0924714001
ref: 5

PLUG

€ 5.00

6

0916814004
ref: 6

GASKET(14X19.2X2) (NAS)

€ 2.50

7

0924605001
ref: 7

PLUG

€ 3.50

8

0928016008
ref: 8

O RING(D:3.2,ID:15.8)

€ 1.50

9

1651045040
ref: 9

FILTER ASSY,ENGINE OIL

€ 7.50

10

1651845000
ref: 10

O RING,OIL FILTER CHAMBER CAP

€ 7.50

11

0944032004
ref: 11

SPRING

€ 13.50

12

1651233301
ref: 12

CAP,OIL FILTER

€ 47.00

13

0142106208
ref: 13

STUD 6X20

€ 2.50

14

0831311065
ref: 14

NUT 6MM

€ 2.00

15

0832221064
ref: 15

WASHER

€ 2.00

16

0924714015
ref: 16

PLUG(14X12)

€ 2.50

17

0916814004
ref: 17

GASKET(14X19.2X2) (NAS)

€ 2.50

18

1640031310
ref: 18

PUMP ASSEMBLY,OIL

€ 119.50

19

1649131310
ref: 19

O-RING,OIL PUMP

€ 12.50

20

0151706408
ref: 20

BOLT

€ 2.50

21

1633131300
ref: 21

GEAR,OIL PUMP DRIVEN

€ 37.00

22

0822110185
ref: 22

SHIM

€ 2.00

23

0926104009
ref: 23

PIN(4X15.8)

€ 1.50

24

0833131109
ref: 24

CIRCLIP

€ 2.00

25

1652009300
ref: 25

STRAINER,ENGINE OIL

€ 14.00

26

0110706128
ref: 26

BOLT

€ 2.00

27

0832121068
ref: 27

LOCK WASHER

€ 2.50

28

1652531300
ref: 28

PROTECTOR,OIL STRAINER

€ 15.00

29

0928018008
ref: 29

O RING(D:3.2,ID:17.8)

€ 8.00

30

0151706208
ref: 30

BOLT,REAR

€ 2.50

31

1644044500
ref: 31

REGULATOR ASSY,ENGINE OIL

€ 33.00

32

0821214181
ref: 32

WASHER

€ 2.00

33

1643031300
ref: 33

VALVE ASSEMBLY,PISTON OIL

€ 30.00

34

0928010009
ref: 34

O RING(D:1.3,ID:9.8)

€ 1.50

35

1644234301
ref: 35

PLUNGER,OIL CONTROLL

€ 16.00

36

0944010011
ref: 36

SPRING

€ 3.50

37

0924716004
ref: 37

PLUG

€ 5.50

38

0928017002
ref: 38

O RING(D:2.4,ID:16.8)

€ 3.50

OIL PUMP - OIL FILTER

all assemblies
