REAR WHEEL
GSX750E 1985 (F) (E01 E02 E21 E24)

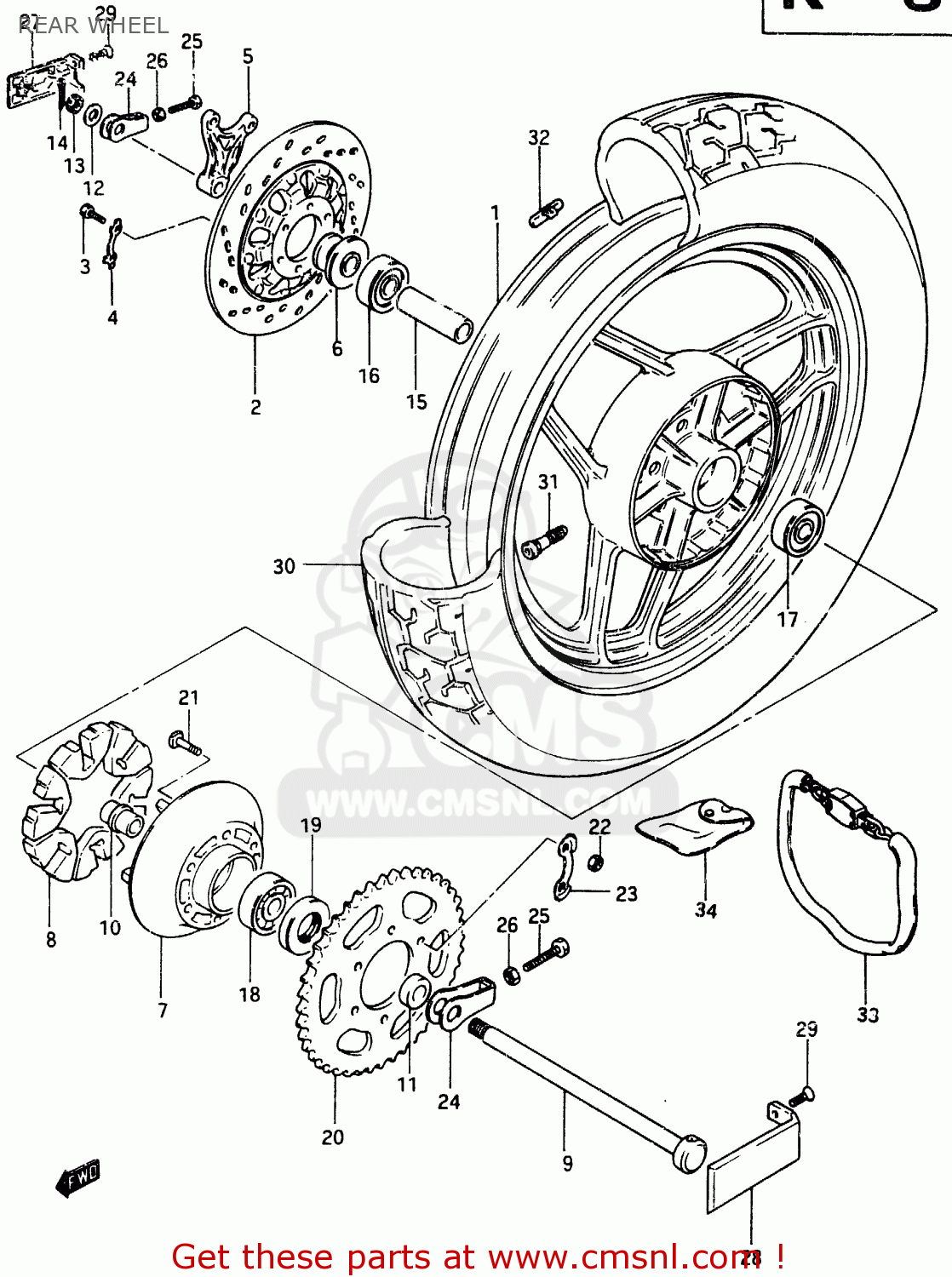

Rear wheel diagram GSX750E 1985 (F) (E01 E02 E21 E24)
REAR WHEEL GSX750E 1985 (F) (E01 E02 E21 E24)
×
prices are in EUR
ref
part #
description
quantity
1
641113130019T
ref: 1
MODEL F
CASTING WHEEL,GOLD
€ 299.00
1
6411131300291
ref: 1
MODEL G
CASTING WHEEL,REAR 2.50
€ 349.00
2
6921031300
ref: 2
DISC,BRAKE
€ 258.00
3
0910008094
ref: 3
BOLT(8X30)
€ 2.50
4
0916908016
ref: 4
WASHER
€ 3.50
5
6972131300
ref: 5
BRACKET,REAR CALIPER
€ 34.00
6
6474031301
ref: 6
SPACER,REAR AXLE,RIGHT
€ 23.00
7
6461131002
ref: 7
DRUM,REAR SPROCKET MOUNT
€ 140.00
8
6465131000
ref: 8
ABSORBER,REAR HUB SHOCK
€ 9.50
9
6471131300
ref: 9
AXLE,REAR
€ 33.50
10
6473331300
ref: 10
RETAINER,RR SPROCKET DRUM
€ 16.50
11
0918017066
ref: 11
SPACER(17X33X11.3)
€ 6.00
12
0832211168
ref: 12
WASHER
€ 2.00
13
0831441168
ref: 13
NUT
€ 4.50
14
0411140308
ref: 14
PIN,COTTER
€ 1.50
15
0918017067
ref: 15
SPACER(17.5X25X88)
€ 13.50
16
0813363037
ref: 16
BEARING
€ 28.50
17
0815363037
ref: 17
BEARING
€ 19.50
18
0811363050
ref: 18
BEARING
€ 21.50
19
0928533001
ref: 19
SEAL,OIL(33X62X7)
€ 20.00
20
6451147640
ref: 20
SPROCKET,REAR
€ 114.50
21
0910510001
ref: 21
BOLT(10X35.5)
€ 3.50
22
0914010026
ref: 22
NUT
€ 2.00
23
0916910007
ref: 23
WASHER
€ 7.50
24
6141031300
ref: 24
ADJUSTER,CHAIN
€ 9.50
25
0910408018
ref: 25
BOLT 8X50
€ 3.00
26
0831012088
ref: 26
NUT
€ 2.00
27
6144131300
ref: 27
COVER,CHAIN ADJUSTER,R
€ 29.00
28
6145131300
ref: 28
COVER,REAR AXLE,LEFT
€ 28.50
29
0213205167
ref: 29
SCREW 5X16
€ 2.00
30
6510031395
ref: 30
MICHELIN
TIRE, REAR (120/90-17 64H)
€ 139.50
31
4313075150
ref: 31
VALVE,TIRE
€ 14.50
32
5541100A0019T
ref: 32
MODEL F
BALANCER,WHEEL
€ 6.50
32
5541200A0019T
ref: 32
MODEL F
BALANCER,WHEEL
€ 7.00
32
5541300A0019T
ref: 32
MODEL F
BALANCER,WHEEL
€ 4.00
32
5541100A00291
ref: 32
MODEL G
BALANCER,WHEEL
€ 6.50
32
5541200A00291
ref: 32
MODEL G
BALANCER,WHEEL
€ 7.00
32
5541300A00291
ref: 32
MODEL G
BALANCER,WHEEL
€ 4.00
33
9414015501KEY
ref: 33
CHAIN LOCK ASSY
€ 53.50
34
9414131301
ref: 34
BAG,CHAIN LOCK
€ 0.00
