2ND AIR

GW250 INAZUMA 2014 (L4) USA (E03)

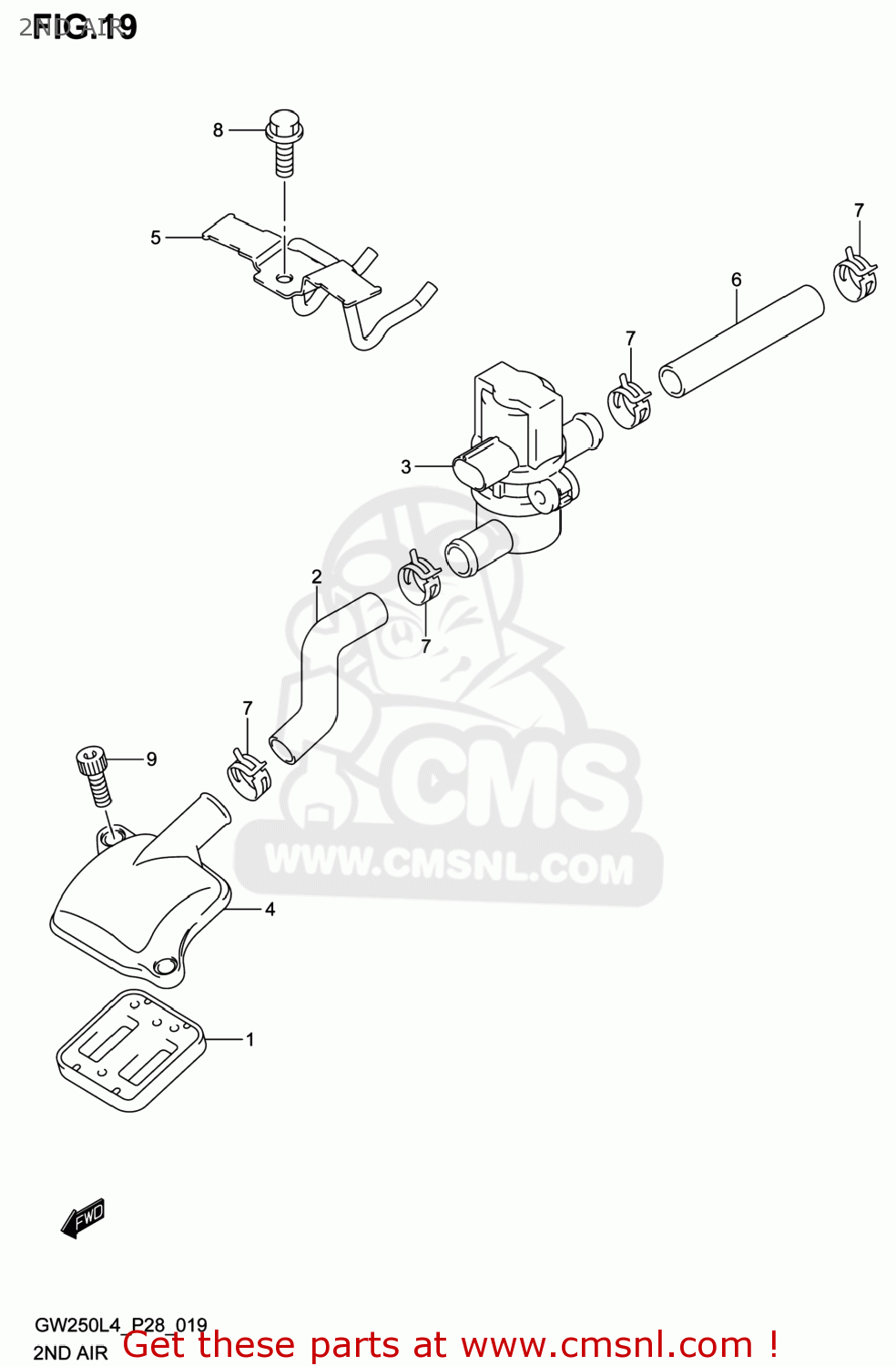

2nd air diagram GW250 INAZUMA 2014 (L4) USA (E03)

2ND AIR GW250 INAZUMA 2014 (L4) USA (E03)

2ND AIR GW250 INAZUMA 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1845048H00
ref: 1

VALVE ASSY,2ND AIR REED

€ 83.50

2

1846148H00
ref: 2

HOSE,2ND AIR VALVE

€ 5.00

3

1851048H00
ref: 3

VALVE ASSY,AIR CUT

€ 112.00

4

1853148H00
ref: 4

COVER,2ND AIR REED VALVE

€ 10.00

5

1861048H00
ref: 5

BRACKET,2ND AIR VALVE

€ 4.00

6

1871148H00
ref: 6

HOSE,2ND AIR CLEANER

€ 3.00

7

0940117L02
ref: 7

CLIP

€ 2.00

8

015500612A
ref: 8

BOLT

€ 2.50

9

071300616A
ref: 9
07130-0616B

BOLT

€ 3.00
