FRONT FENDER

GW250 INAZUMA 2014 (L4) USA (E03)

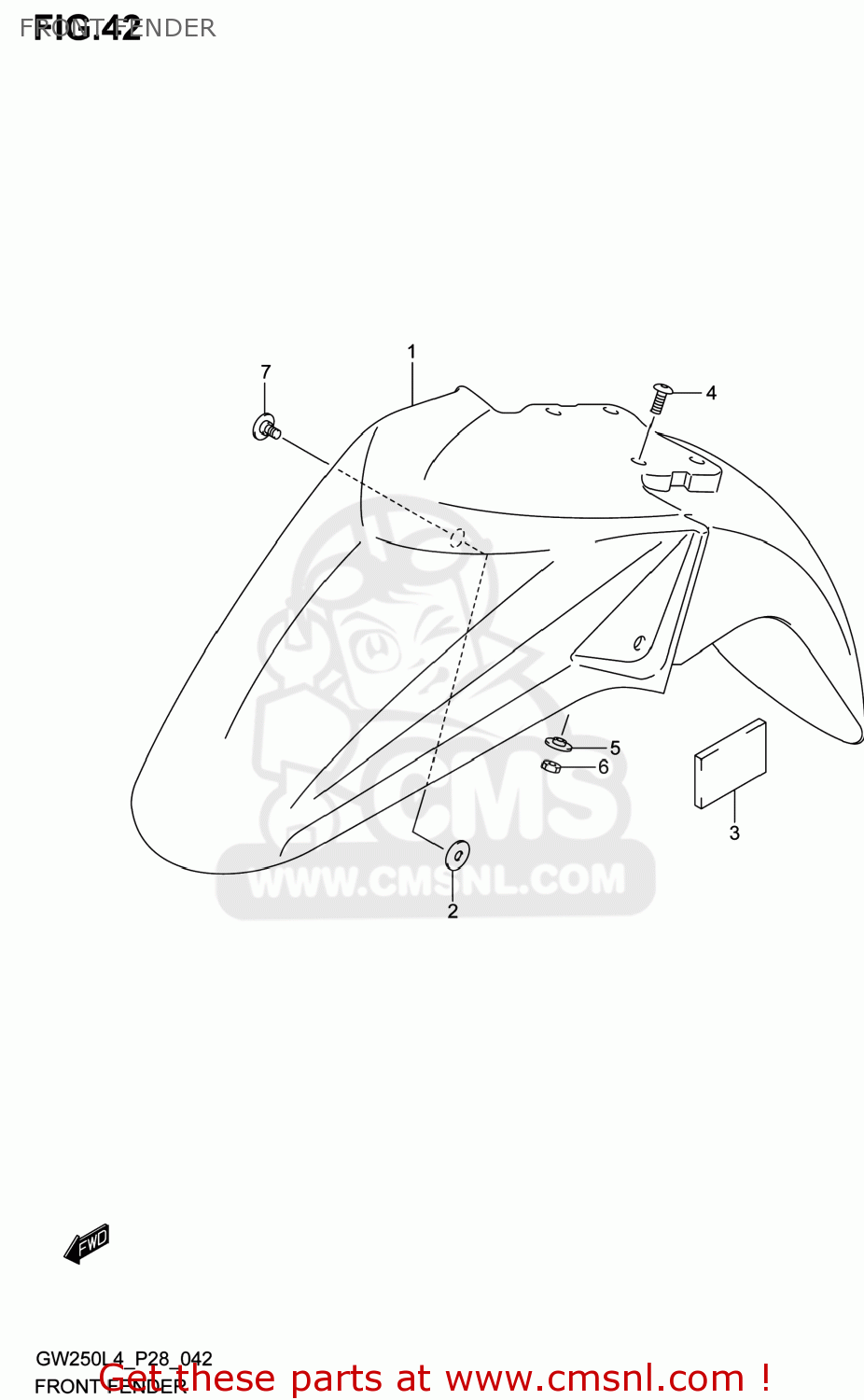

Front fender diagram GW250 INAZUMA 2014 (L4) USA (E03)

FRONT FENDER GW250 INAZUMA 2014 (L4) USA (E03)

FRONT FENDER GW250 INAZUMA 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5311148H00YAY
ref: 1-1

FENDER,FR

€ 128.50

1-2

5311148H00PDD
ref: 1-2

FENDER,FR

€ 200.00

2

5327648H00
ref: 2

WASHER,PLANE

€ 2.00

3

5314548H00
ref: 3

CUSHION,FR FENDER

€ 2.00

4

0913906030
ref: 4

SCREW(6X16)

€ 3.50

5

0916906031
ref: 5
09169-06041

WASHER

€ 2.00

6

083192106A
ref: 6

NUT

€ 2.00

7

5313548H00
ref: 7

SCREW,FR FENDER FR

€ 3.00
