RADIATOR

GW250 INAZUMA 2014 (L4) USA (E03)

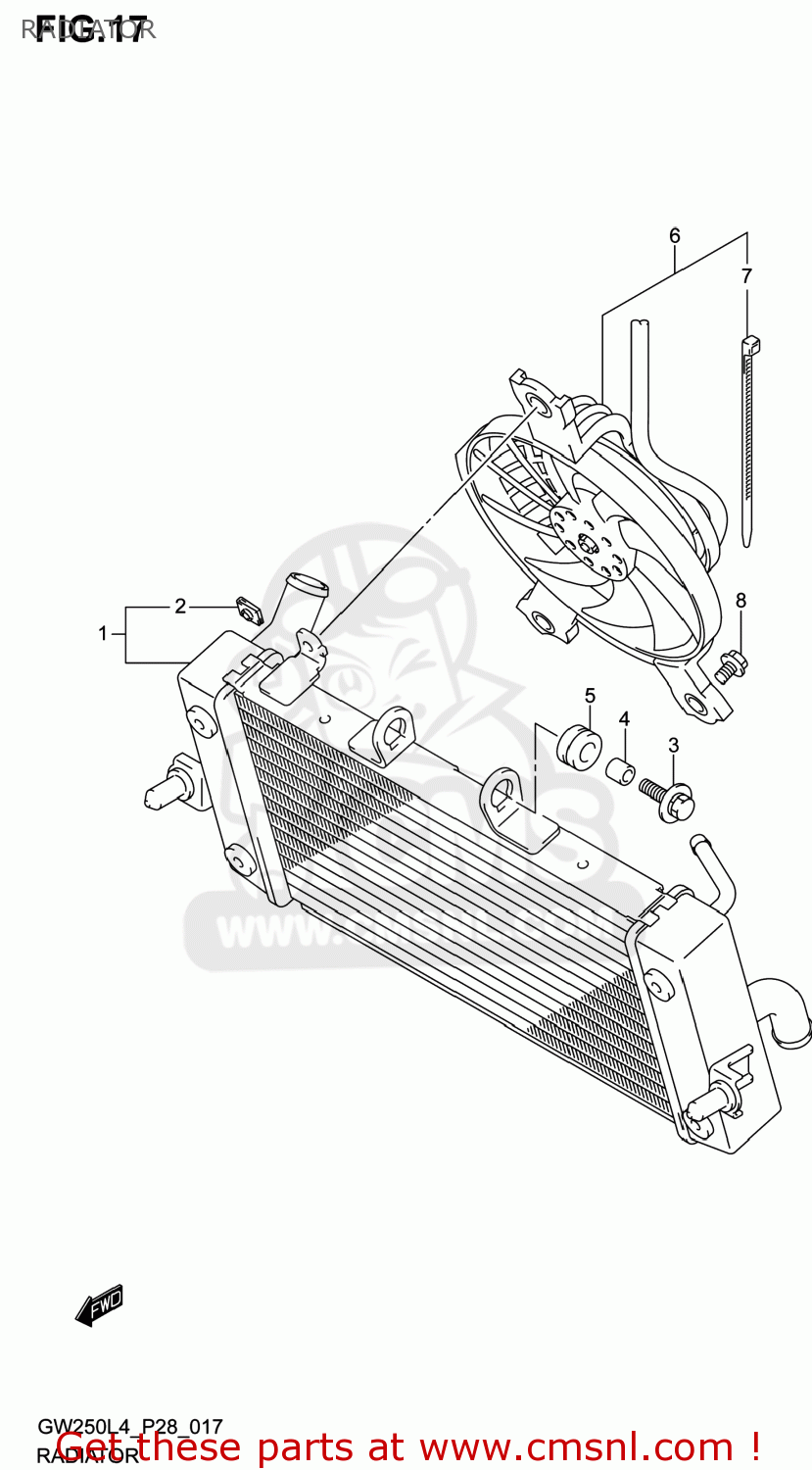

Radiator diagram GW250 INAZUMA 2014 (L4) USA (E03)

RADIATOR GW250 INAZUMA 2014 (L4) USA (E03)

RADIATOR GW250 INAZUMA 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1771048H10
ref: 1

RADIATOR ASSY,WATER

€ 213.50

2

1771248H00
ref: 2

NUT

€ 2.50

3

0911806097
ref: 3

BOLT(6X25)

€ 2.50

4

0918006364
ref: 4

SPACER(6.5X10X10)

€ 1.50

5

0932010501
ref: 5

CUSHION

€ 5.50

6

1780048H00
ref: 6

FAN ASSY,RADIATOR

€ 179.00

7

3699048H20
ref: 7

CLAMP,RR COMBINATION

€ 2.50

8

015500612A
ref: 8

BOLT

€ 2.50
