FUEL TANK COVER

GW250 INAZUMA 2014 (L4) USA (E03)

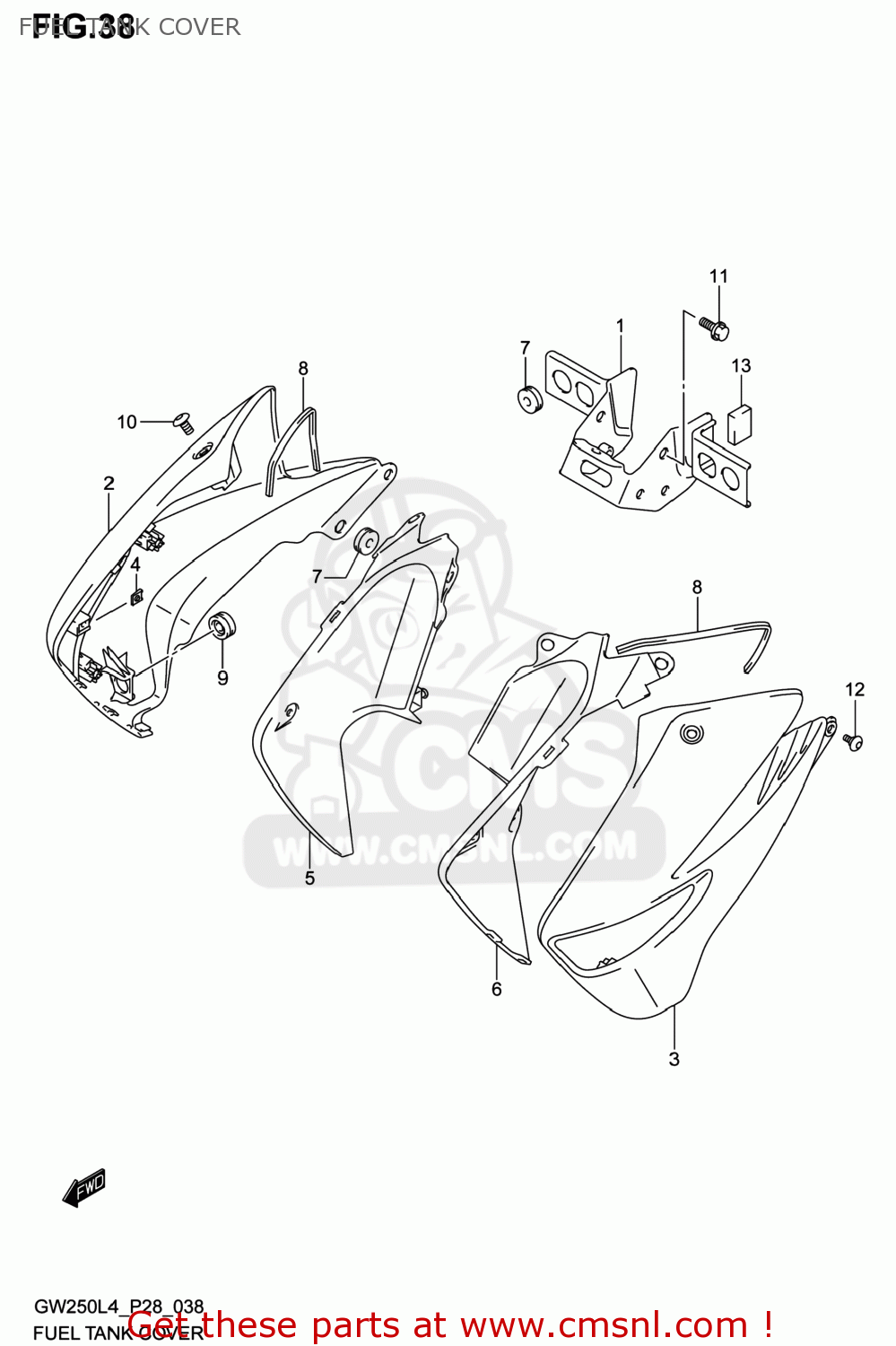

Fuel tank cover diagram GW250 INAZUMA 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

4415048H00
ref: 1

BRACKET,FR SIDE COVER

€ 14.00

2-1

4417148H00YAY
ref: 2-1

COVER,FUEL TANK,R

€ 252.50

2-2

4417148H00PDD
ref: 2-2

COVER,FUEL TANK,R

€ 252.50

3-1

4418148H00YAY
ref: 3-1

COVER,FUEL TANK,L

€ 252.50

3-2

4418148H00PDD
ref: 3-2

COVER,FUEL TANK,L

€ 252.50

4426148H00
ref: 4

NUT,FUEL TANK COVER

€ 1.50

4427148H00
ref: 5

COVER,FUEL TANK FR,R

€ 9.00

4428148H00
ref: 6

COVER,FUEL TANK FR,L

€ 9.00

4427448H00
ref: 7

CUSHION,FUEL TANK COVER

€ 2.50

4427848H00
ref: 8

CUSHION,FUEL TANK COVER SIDE

€ 3.00

4427948H00
ref: 9

CUSHION,FUEL TANK COVER

€ 2.00

0913906172
ref: 10

SCREW(6X10)

€ 3.00

015500616B
ref: 11

BOLT

€ 2.50

4451448H00
ref: 12

SCREW(6X12)

€ 4.00

4415348H00
ref: 13

CUSHION,COVER BRACKET

€ 2.00
