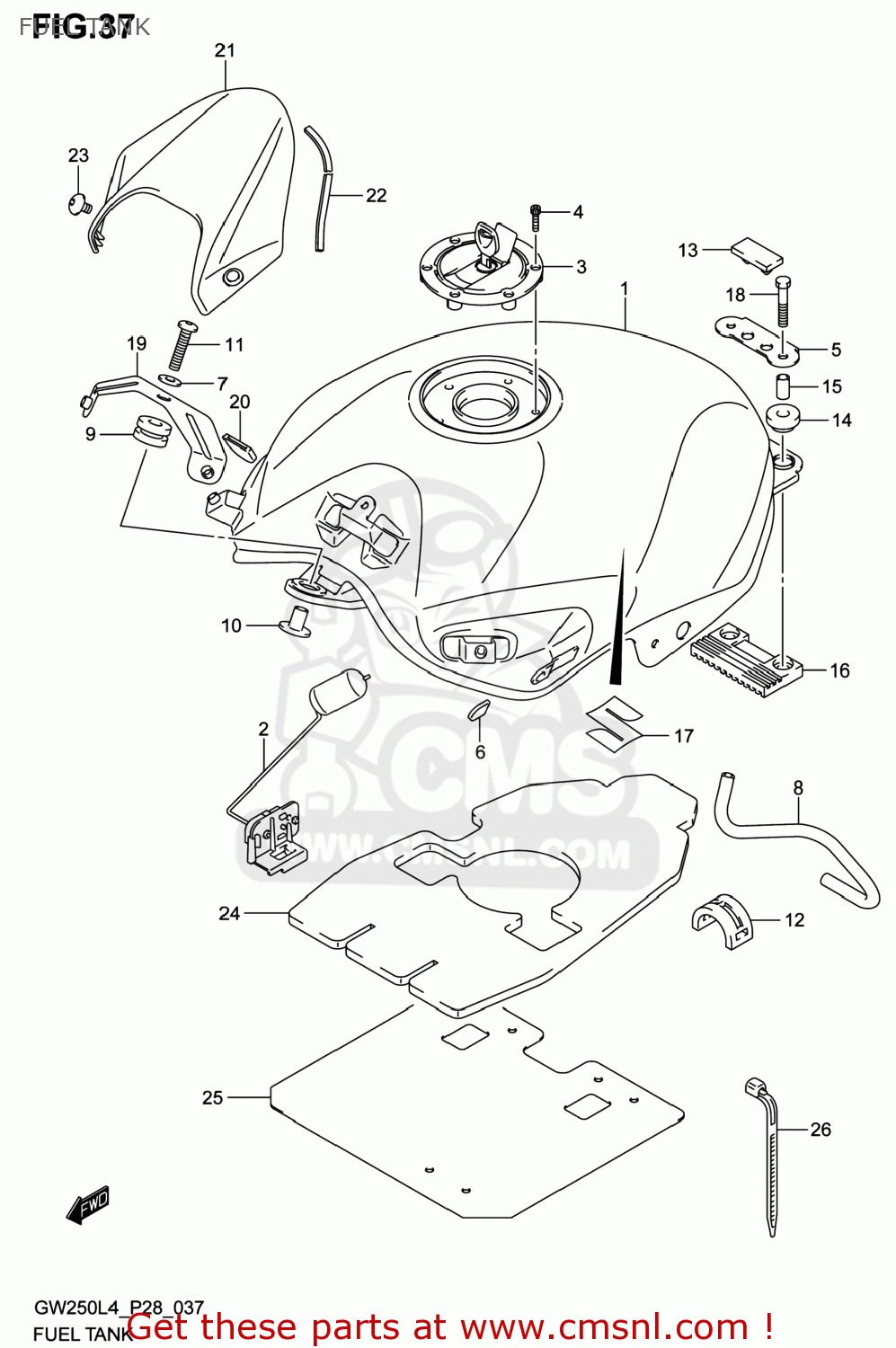

FUEL TANK

ref

part #

description

quantity

1-1

4410048H10PDD
ref: 1-1

TANK ASSY,FUEL(RED)

€ 468.50

1-2

4410048H10YAY
ref: 1-2

TANK ASSY,FUEL(BLACK)

€ 468.50

2

3481048H00
ref: 2

GAUGE ASSY,FUEL LEVEL SENDER

€ 60.00

3

4420016870
ref: 3

CAP SET,FUEL TANK

€ 148.50

4

4421148H00
ref: 4

BOLT(5X20)

€ 2.00

5

4414648H00
ref: 5

WASHER,FUEL TANK RR BRKT

€ 5.00

6

4427648H00
ref: 6

CUSHION,FUEL TANK COVER

€ 2.00

7

4426248H00
ref: 7

WASHER,FUEL TANK FR

€ 2.50

8

4442348H00
ref: 8

HOSE,FUEL TANK WATER DRAIN

€ 5.50

9

4451148H00
ref: 9

CUSHION,FUEL TANK FR

€ 2.00

10

4451248H00
ref: 10

SPACER,FUEL TANK FR

€ 2.50

11

4451348H00
ref: 11

SCREW,FUEL TANK FR

€ 4.50

12

4454148H00
ref: 12

CUSHION,FUEL TANK SIDE

€ 4.00

13

4454248H00
ref: 13

CUSHION,FUEL TANK RR BRKT

€ 2.50

14

4454348H00
ref: 14

CUSHION,FUEL TANK RR UPR

€ 2.50

15

4454448H00
ref: 15

SPACER,FUEL TANK RR

€ 2.00

16

4454548H00
ref: 16

CUSHION,FUEL TANK RR LWR

€ 5.00

17

6811118G20
ref: 17

EMBLEM,S

€ 22.50

18

015000635A
ref: 18

BOLT

€ 2.50

19

4416048H00
ref: 19

BRACKET,FUEL TANK COVER

€ 5.50

20

4416448H00
ref: 20

CUSHION,FUEL TANK COVER BRKT

€ 2.00

21

4419148H00YMD
ref: 21

COVER,FUEL TANK CTR

€ 53.00

21

4419148H00YMD
ref: 21

COVER,FUEL TANK CTR

€ 53.00

22

4427748H00
ref: 22

CUSHION,FUEL TANK COVER CTR

€ 3.00

23

0913906172
ref: 23

SCREW(6X10)

€ 3.00

24

4419248H00
ref: 24

SHIELD,FUEL TANK HEAT

€ 9.00

25

4419348H10
ref: 25

SHIELD,FUEL TANK HEAT NO.2

€ 237.00

26

3699032G10
ref: 26

CLAMP,WIRING HARNESS

€ 2.00

all assemblies
