MAGNETO
GW250 INAZUMA 2014 (L4) USA (E03)

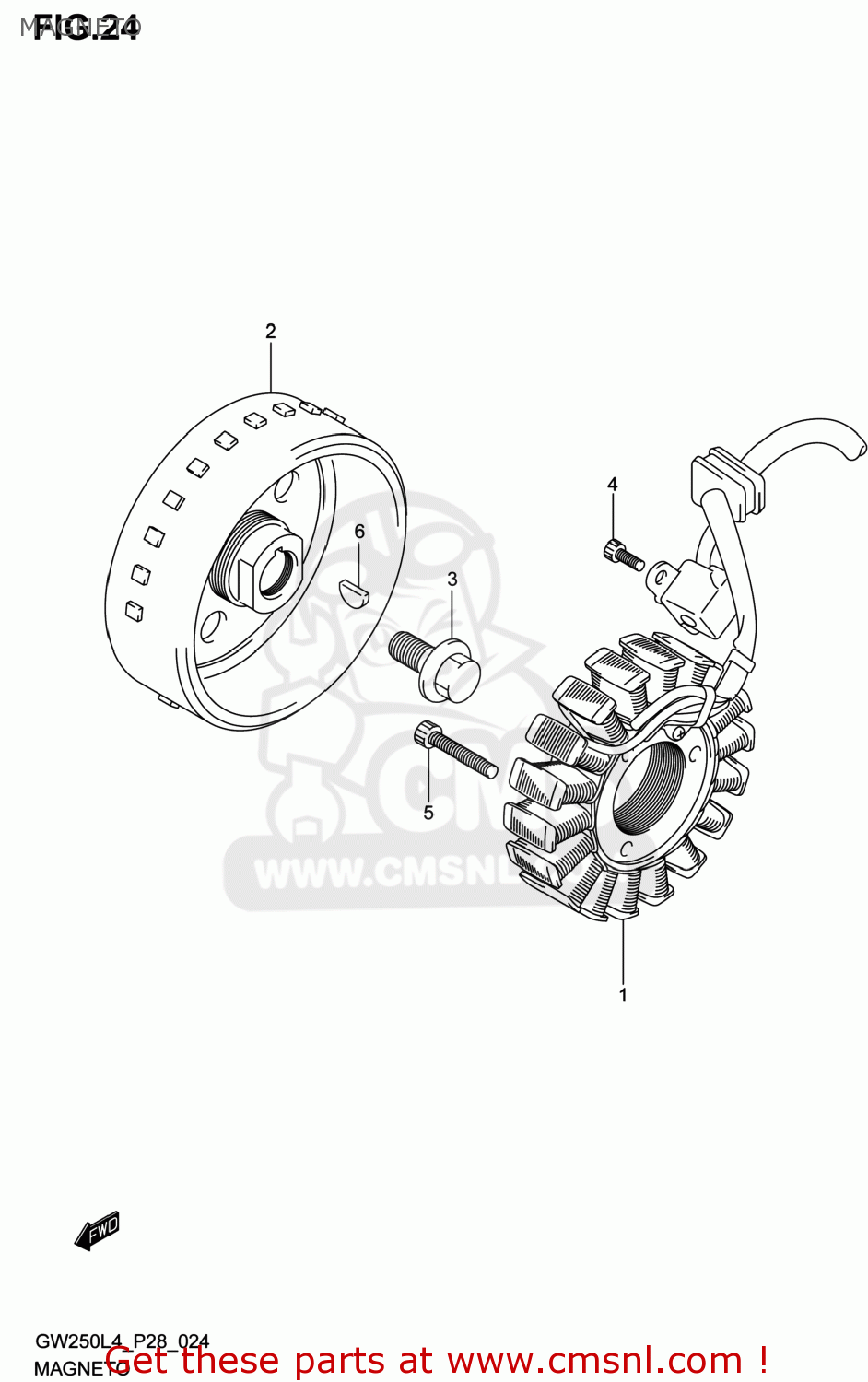

Magneto diagram GW250 INAZUMA 2014 (L4) USA (E03)
MAGNETO GW250 INAZUMA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3210148H00
ref: 1
STATOR ASSY
€ 188.50
2
3210248H00
ref: 2
ROTOR ASSY
€ 124.00
3
3249148H00
ref: 3
BOLT,MAGNETO ROTOR
€ 4.00
4
071300512A
ref: 4
BOLT
€ 2.50
5
071300630A
ref: 5
BOLT
€ 3.00
6
0834131039
ref: 6
KEY
€ 2.00
