FRAME

GW250 INAZUMA 2014 (L4) USA (E03)

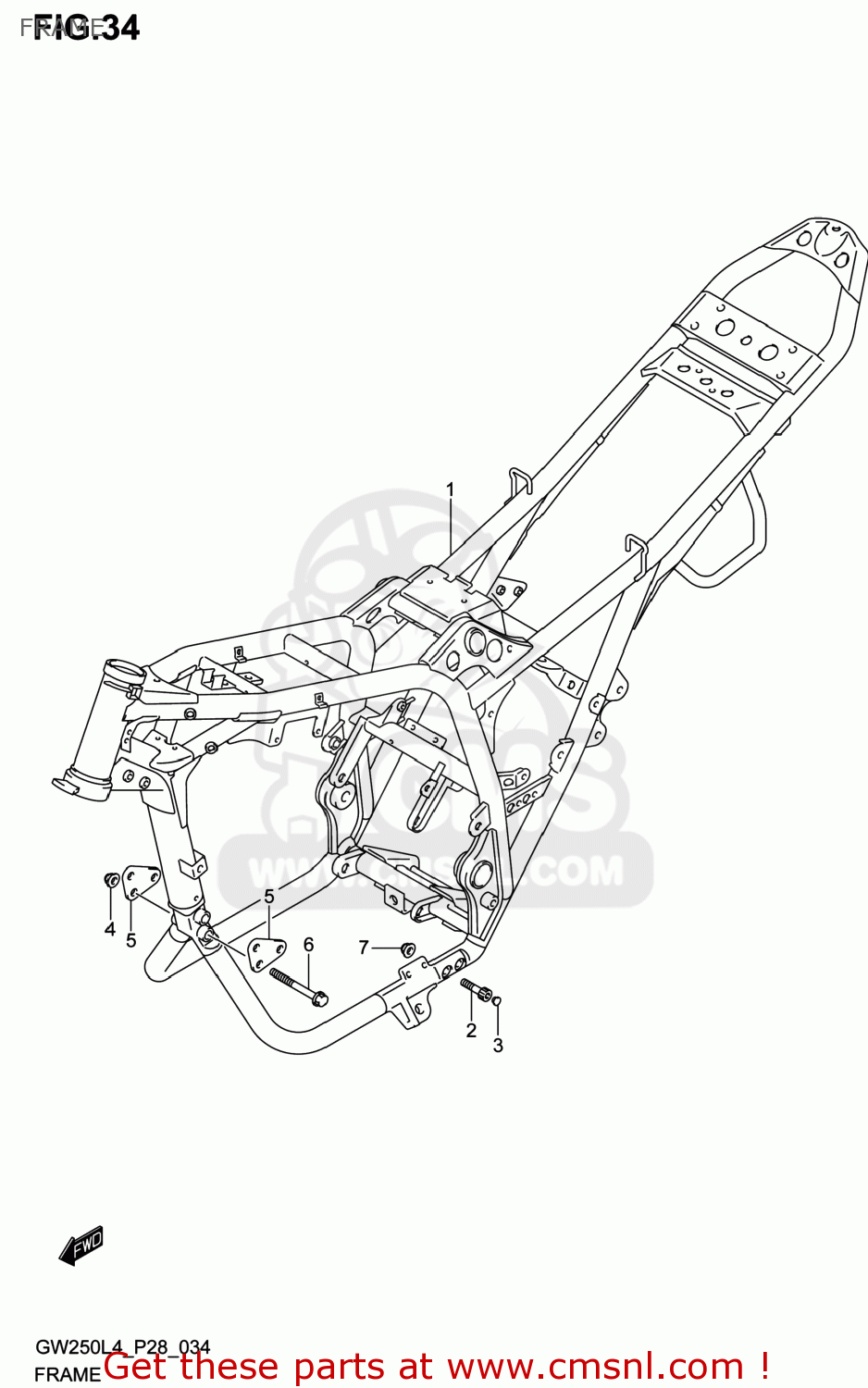

Frame diagram GW250 INAZUMA 2014 (L4) USA (E03)

FRAME GW250 INAZUMA 2014 (L4) USA (E03)

FRAME GW250 INAZUMA 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4110048H20
ref: 1

FRAME

€ 639.50

2

0910610068
ref: 2

BOLT(10X37)

€ 2.50

3

0925008012
ref: 3

CAP(OD:12)

€ 2.00

4

083193110B
ref: 4

NUT

€ 3.00

5

4194248H00
ref: 5

BRACKET,ENGINE MOUNTING FR

€ 3.50

6

0910310445
ref: 6

BOLT(10X85)

€ 4.50

7

083193110B
ref: 7

NUT

€ 3.00
