AIR CLEANER
GW250 INAZUMA 2014 (L4) USA (E03)

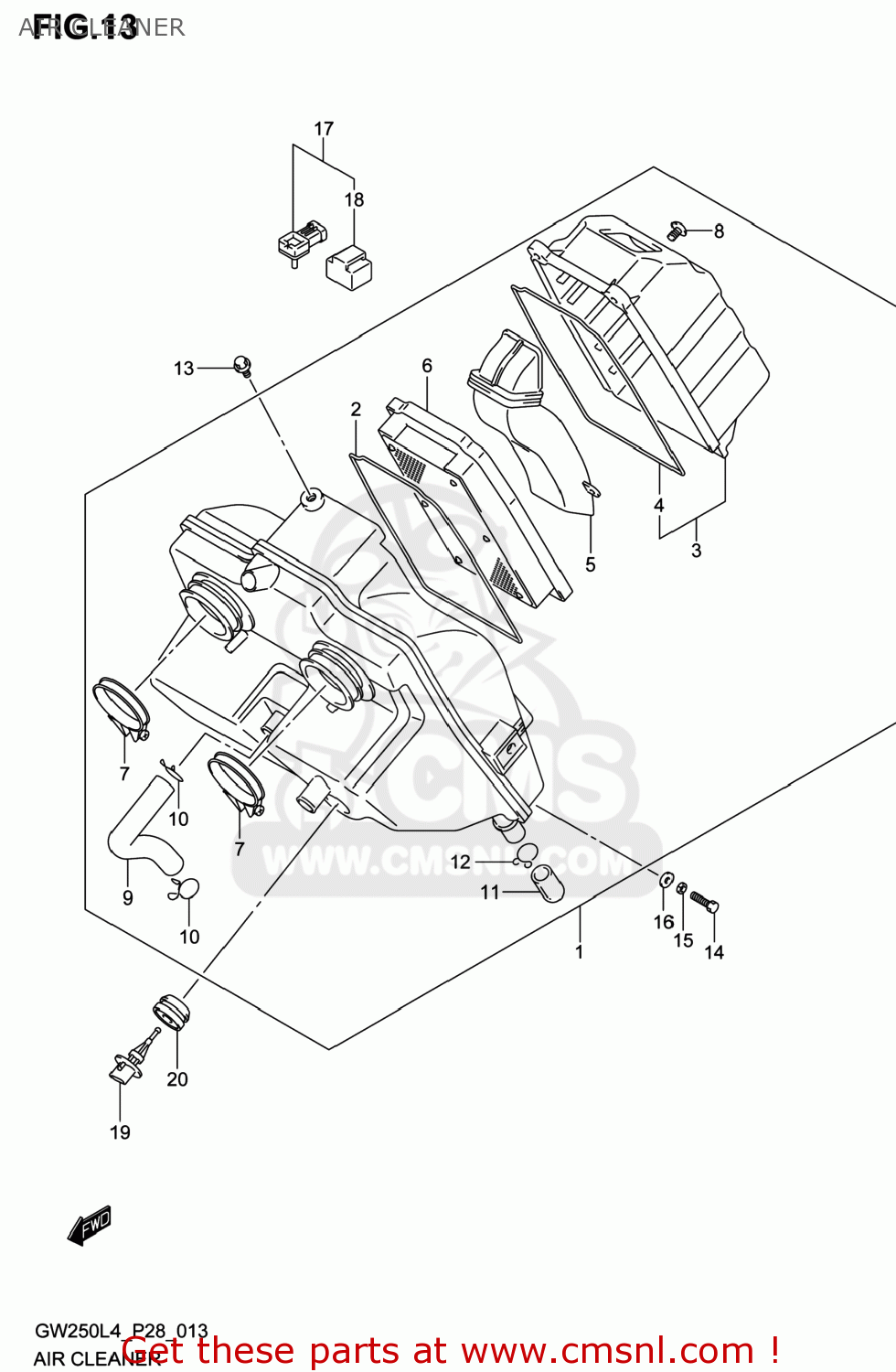

Air cleaner diagram GW250 INAZUMA 2014 (L4) USA (E03)
AIR CLEANER GW250 INAZUMA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1370048H01
ref: 1
CLEANER ASSY,AIR
€ 93.50
2
1374648H00
ref: 2
GASKET,AIR CLEANER (NAS)
€ 4.50
3
1374048H00
ref: 3
CAP,AIR CLEANER
€ 23.50
4
1374648H00
ref: 4
GASKET,AIR CLEANER (NAS)
€ 4.50
5
1389148H00
ref: 5
TUBE,INLET
€ 11.00
6
1378048H00
ref: 6
FILTER ASSY
€ 15.00
7
1382648H00
ref: 7
CLAMP
€ 4.00
8
021420512A
ref: 8
SCREW
€ 1.50
9
1385348H00
ref: 9
TUBE,BREATHER
€ 3.50
10
0940115101
ref: 10
CLIP
€ 2.00
11
1387848H00
ref: 11
PLUG,DRAIN
€ 2.00
12
0940114101
ref: 12
CLIP
€ 2.00
13
015500610A
ref: 13
BOLT
€ 2.00
14
015000620A
ref: 14
BOLT
€ 2.00
15
083210106A
ref: 15
WASHER,LOCK
€ 2.00
16
0916006077
ref: 16
WASHER(6.5X20X1.2)
€ 2.00
17
1563029G20
ref: 17
SENSOR,BOOST
€ 180.50
18
1562529G10
ref: 18
COVER
€ 7.00
19
1365052G00
ref: 19
SENSOR,INLET AIR TEMP
€ 59.50
20
1365577E00
ref: 20
GROMMET,AIR TEMP SENSOR
€ 2.00
