CAMSHAFT/VALVE

GW250 INAZUMA 2014 (L4) USA (E03)

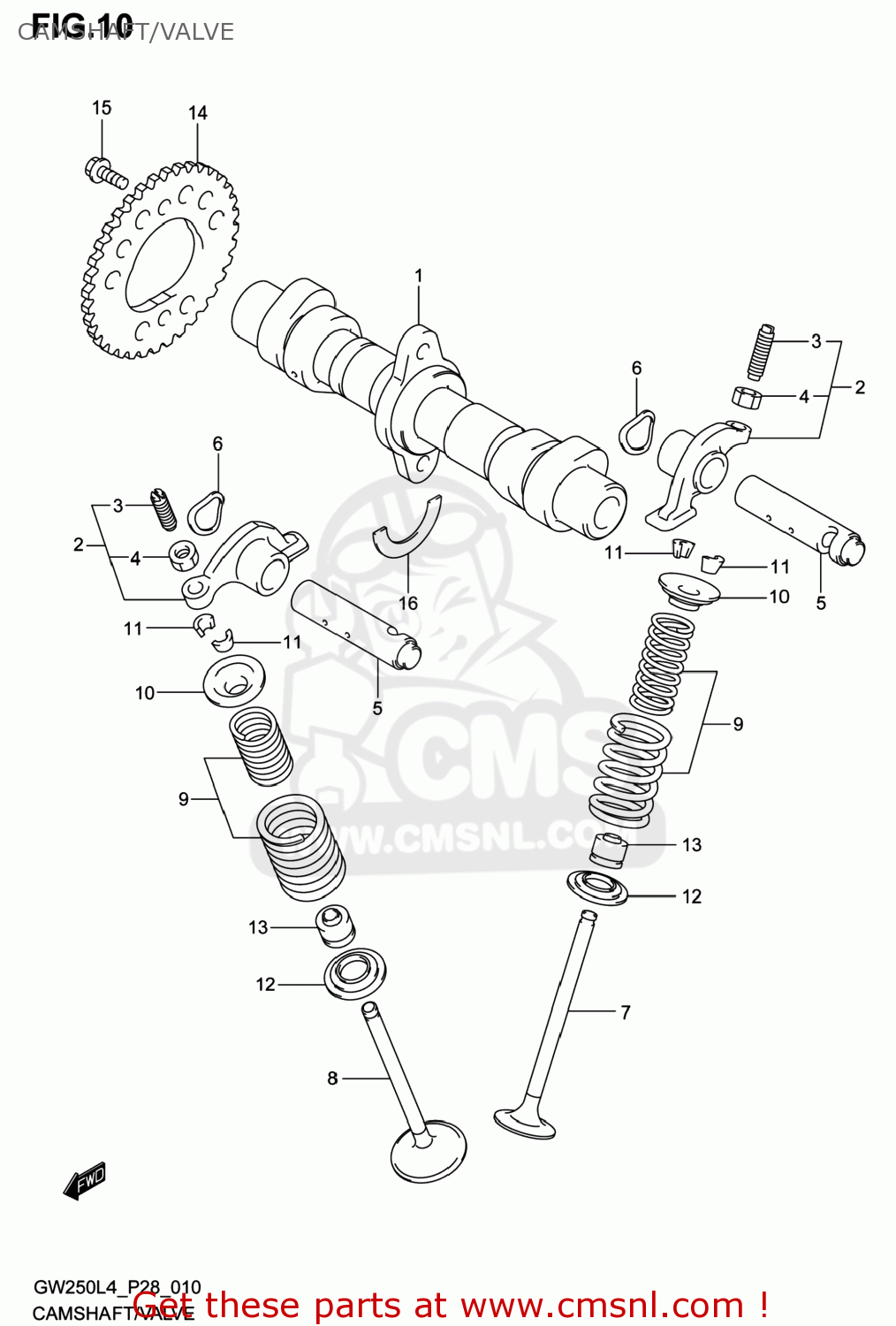

Camshaft/valve diagram GW250 INAZUMA 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1271048H00
ref: 1

CAMSHAFT

€ 145.50

1284020H10
ref: 2

ARM ASSY,VALVE ROCKER

€ 34.50

1284249220
ref: 3

SCREW,TAPPET ADJUSTING

€ 5.50

1284327A10
ref: 4

NUT,TAPPET ADJUSTING

€ 2.00

1286148H00
ref: 5

SHAFT,VALVE ROCKER ARM

€ 6.00

0916412018
ref: 6

WASHER

€ 1.50

1291120H10
ref: 7

VALVE,INTAKE

€ 10.00

1291220H10
ref: 8

VALVE,EXHAUST

€ 15.50

1292048H00
ref: 9

SPRING SET,VALVE

€ 31.00

1293127A30
ref: 10

RETAINER,VALVE SPRING

€ 3.00

1293227A10
ref: 11

COTTER VALVE

€ 1.50

1293381410
ref: 12

SEAT,VALVE SPRING

€ 3.00

0928905016
ref: 13

SEAL,OIL(5X10X8)

€ 6.00

1274148H00
ref: 14

SPROCKET,CAMSHAFT

€ 9.50

0911106027
ref: 15

BOLT(6X12.5)

€ 1.50

0939022002
ref: 16

C RING

€ 2.00

CAMSHAFT/VALVE

all assemblies
