STARTING MOTOR

GW250 INAZUMA 2014 (L4) USA (E03)

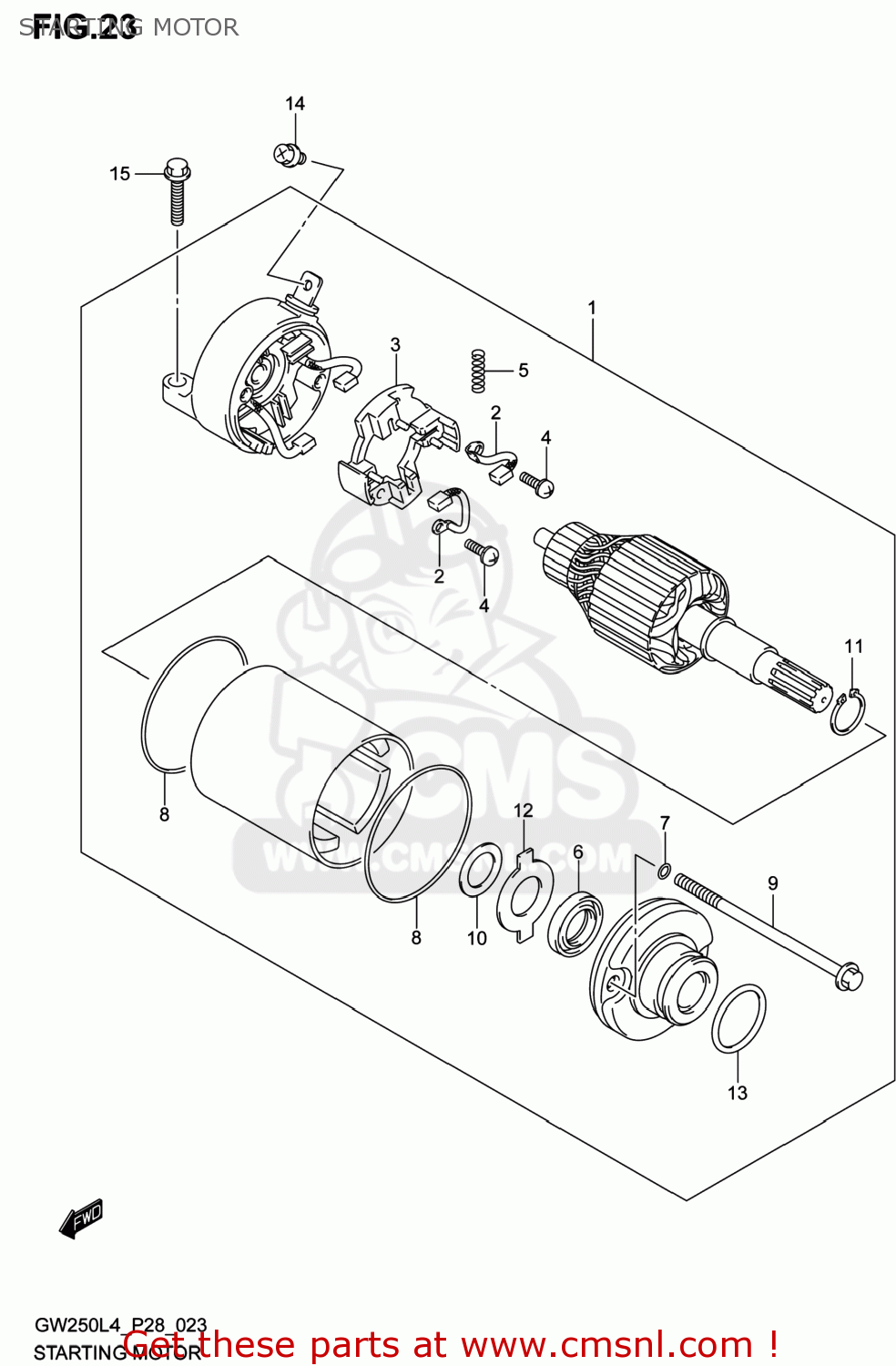

Starting motor diagram GW250 INAZUMA 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

3110048H00
ref: 1

MOTOR ASSY,STARTING

€ 97.00

3113225H00
ref: 2

BRUSH

€ 6.50

3113325H00
ref: 3

BRUSH HOLDER

€ 28.50

3113425H00
ref: 4

SCREW

€ 1.50

3113525H00
ref: 5

SPRING

€ 2.00

3115305530
ref: 6

SEAL,OIL

€ 10.00

3115625H00
ref: 7

O RING

€ 2.50

3126405530
ref: 8

O RING

€ 2.50

3128125H00
ref: 9

BOLT

€ 4.50

31361055A0
ref: 10

SHIM

€ 1.50

3136105530
ref: 11

RING,SNAP

€ 3.00

3136125H00
ref: 12

PLATE LOCK

€ 2.00

0928024003
ref: 13

O RING(D:3,ID:24.5)

€ 2.00

0913705004
ref: 14

SCREW(5X8)

€ 2.00

015470625A
ref: 15

BOLT

€ 2.50
