FRONT BRAKE HOSE

GW250 INAZUMA 2014 (L4) USA (E03)

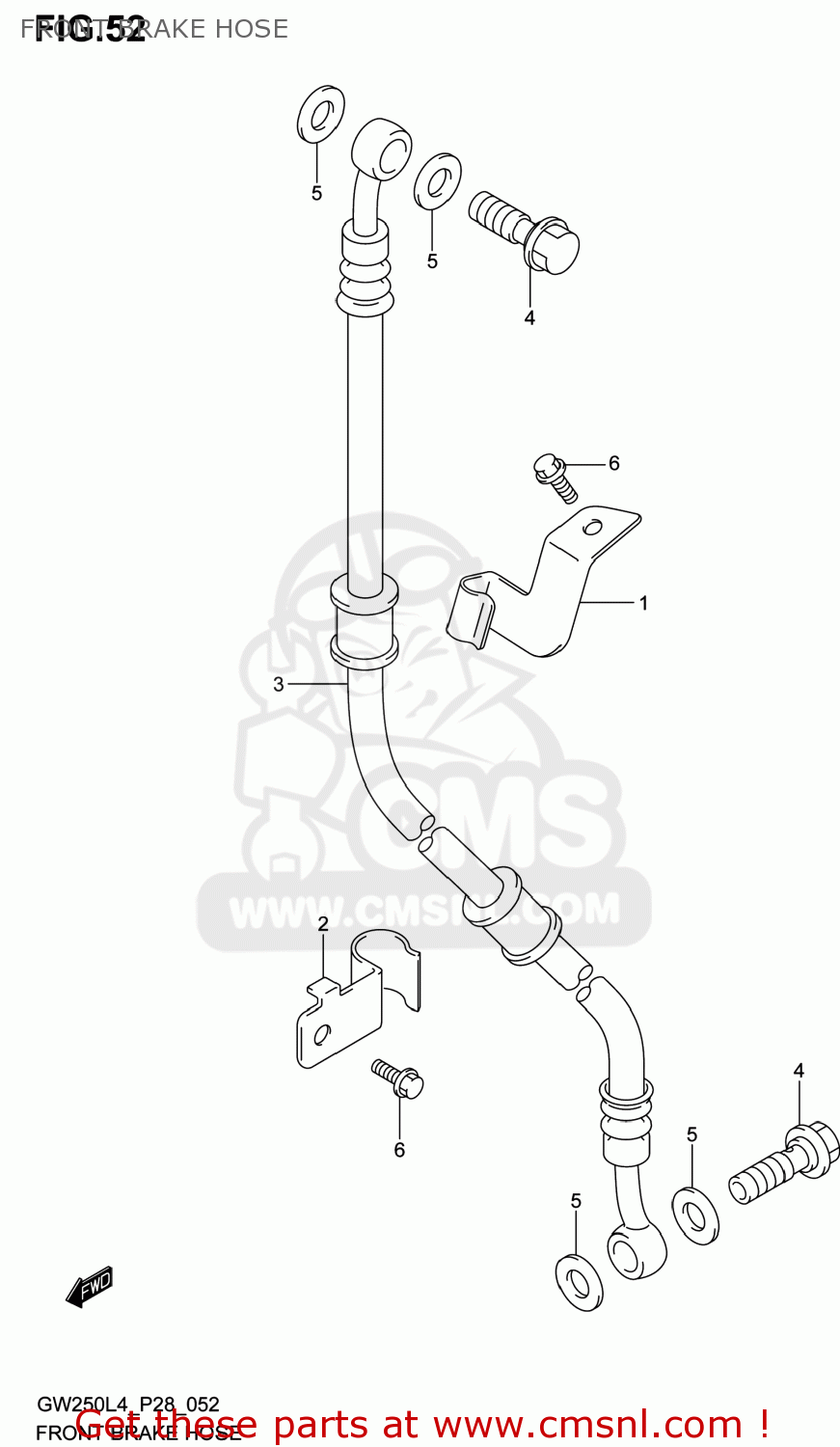

Front brake hose diagram GW250 INAZUMA 2014 (L4) USA (E03)

FRONT BRAKE HOSE GW250 INAZUMA 2014 (L4) USA (E03)

FRONT BRAKE HOSE GW250 INAZUMA 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5926148H00
ref: 1

CLAMP,FR BRAKE HOSE NO.1

€ 2.50

2

5926948H00
ref: 2

CLAMP,FR BRAKE HOSE NO.2

€ 2.50

3

5948048H00
ref: 3

HOSE,FR BRAKE

€ 38.00

4

5949248H00
ref: 4

BOLT,BRAKE FLUID

€ 3.50

5

5946448H00
ref: 5

WASHER,BRAKE FLUID

€ 2.00

6

015470612A
ref: 6

BOLT

€ 2.00
