WATER PUMP
GW250 INAZUMA 2014 (L4) USA (E03)

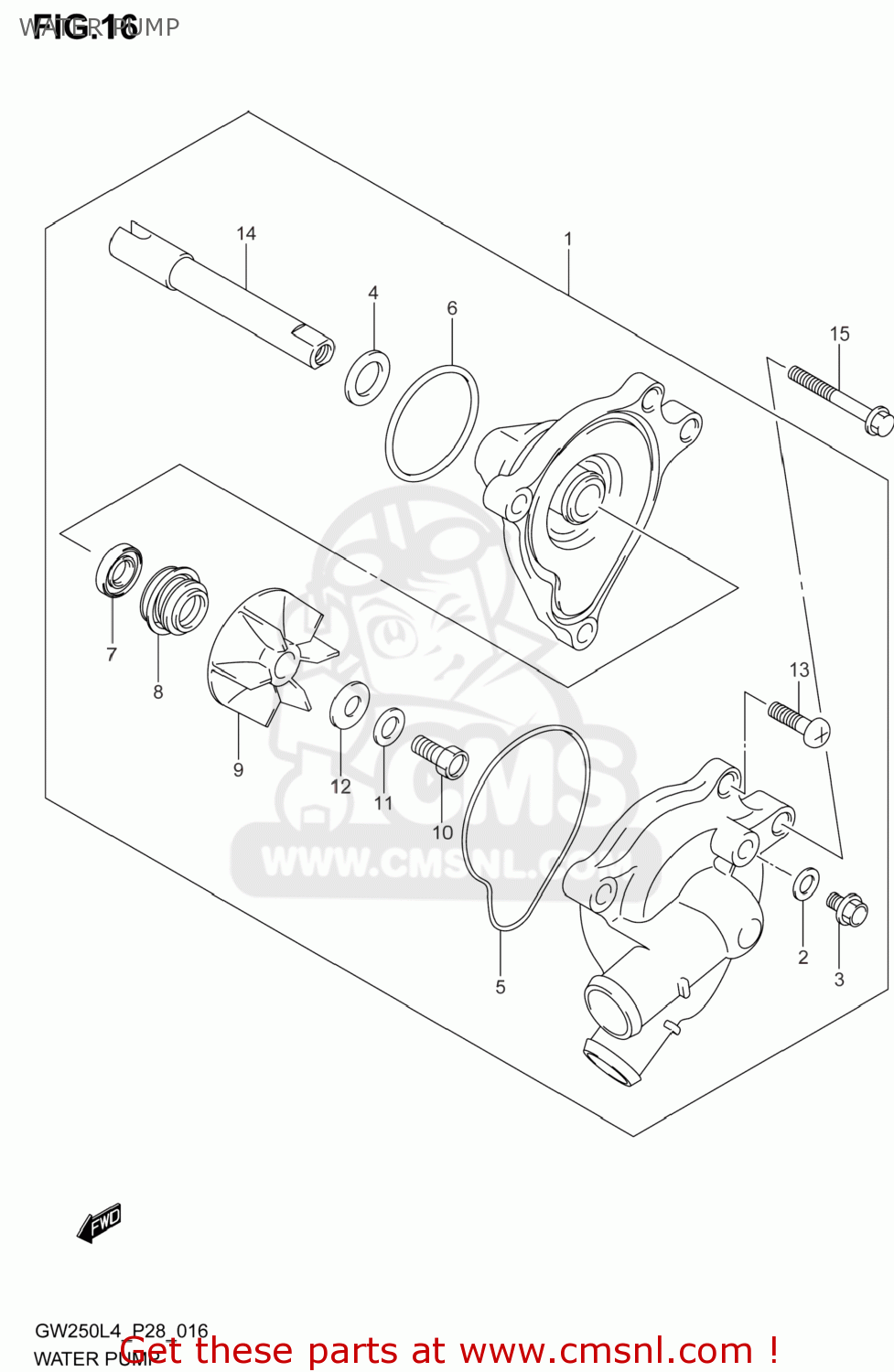

Water pump diagram GW250 INAZUMA 2014 (L4) USA (E03)
WATER PUMP GW250 INAZUMA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1740048H00
ref: 1
PUMP ASSY,WATER
€ 219.00
2
1741328C10
ref: 2
WASHER
€ 1.50
3
1741543D00
ref: 3
BOLT
€ 3.00
4
1743207G00
ref: 4
WASHER
€ 2.00
5
1743512C00
ref: 5
O RING,WATER PUMP CASE
€ 6.00
6
1743533400
ref: 6
O RING,WATER PUMP HOLDER
€ 13.00
7
1746101H00
ref: 7
SEAL,OIL
€ 15.50
8
1747002F10
ref: 8
SEAL,MECHANICAL
€ 21.50
9
1749112C00
ref: 9
IMPELLER,WATER PUMP
€ 11.50
10
0910006099
ref: 10
BOLT(6X13)
€ 2.00
11
0916406006
ref: 11
WASHER
€ 2.50
12
0916806025
ref: 12
GASKET(6X15X2.2) (NAS)
€ 3.00
13
021120616A
ref: 13
SCREW
€ 1.50
14
1751148H00
ref: 14
SHAFT
€ 7.50
15
015470635A
ref: 15
BOLT
€ 3.00
