HEADLAMP
GW250 INAZUMA 2014 (L4) USA (E03)

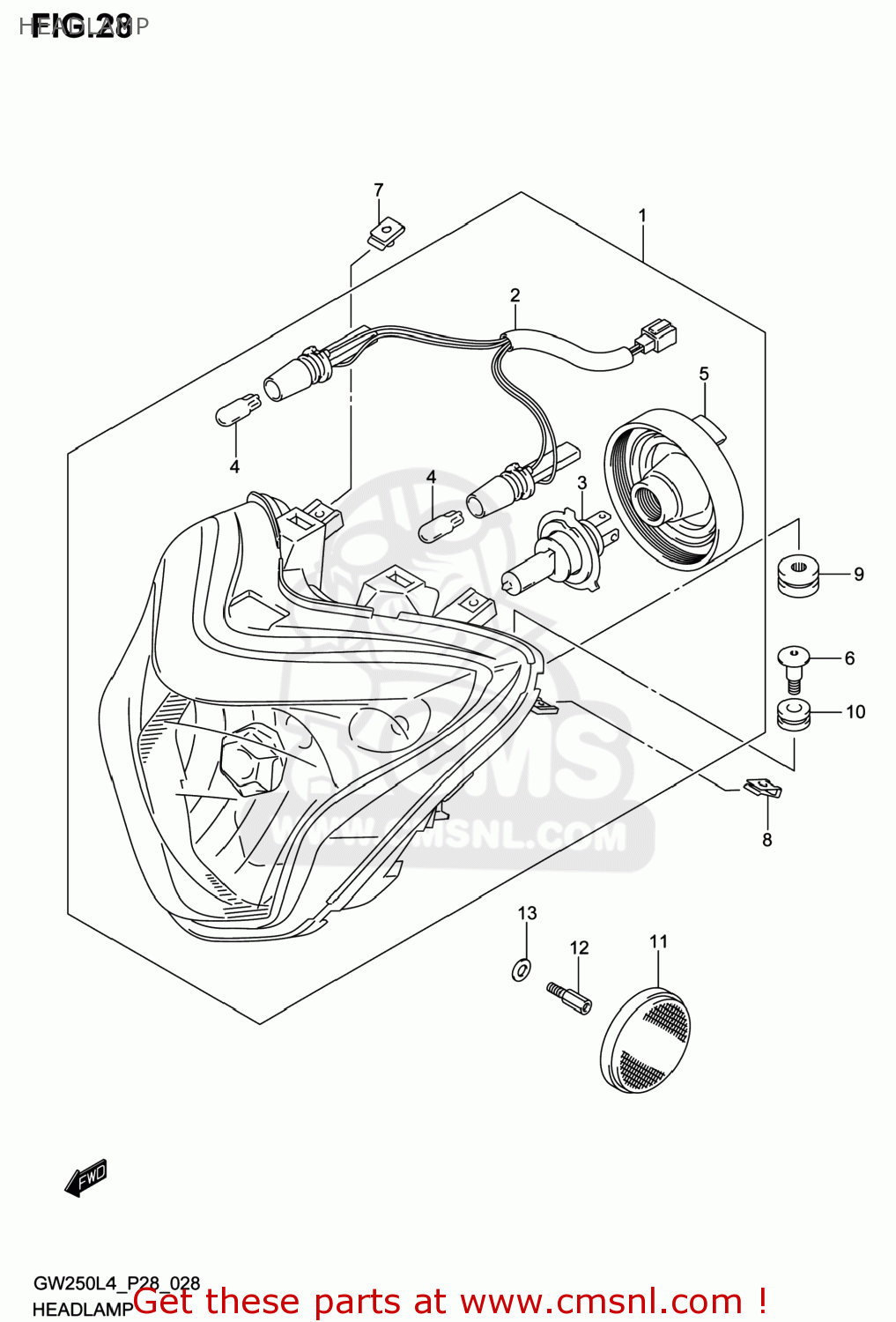

Headlamp diagram GW250 INAZUMA 2014 (L4) USA (E03)
HEADLAMP GW250 INAZUMA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3510048H30
ref: 1
HEADLAMP ASSY
€ 138.00
2
3611848H01
ref: 2
CORD ASSY
€ 8.50
3
0947112060
ref: 3
BULB(12V60/55W,H4)
€ 8.00
4
0947112216
ref: 4
BULB(12V5W)
€ 5.00
5
3517948H00
ref: 5
CAP
€ 9.50
6
3515148H00
ref: 6
SCREW,HEADLAMP
€ 2.00
7
3515548H00
ref: 7
NUT,HEADLAMP
€ 2.00
8
3515748H00
ref: 8
NUT,HEADLAMP
€ 2.00
9
3538248H00
ref: 9
CUSHION,HEADLAMP
€ 2.00
10
3538248H10
ref: 10
CUSHION,HEADLAMP
€ 2.50
11-1
3595004H50
ref: 11-1
REFLEX REFLECTOR ASSY,FR SIDE
€ 8.00
11-2
3595014A11
ref: 11-2
REFLEX REFLECTOR ASSY,FR SIDE
€ 11.00
12
0911906119
ref: 12
BOLT(6X18)
€ 2.50
13
083220106A
ref: 13
WASHER
€ 2.00
