STAND

GW250 INAZUMA 2014 (L4) USA (E03)

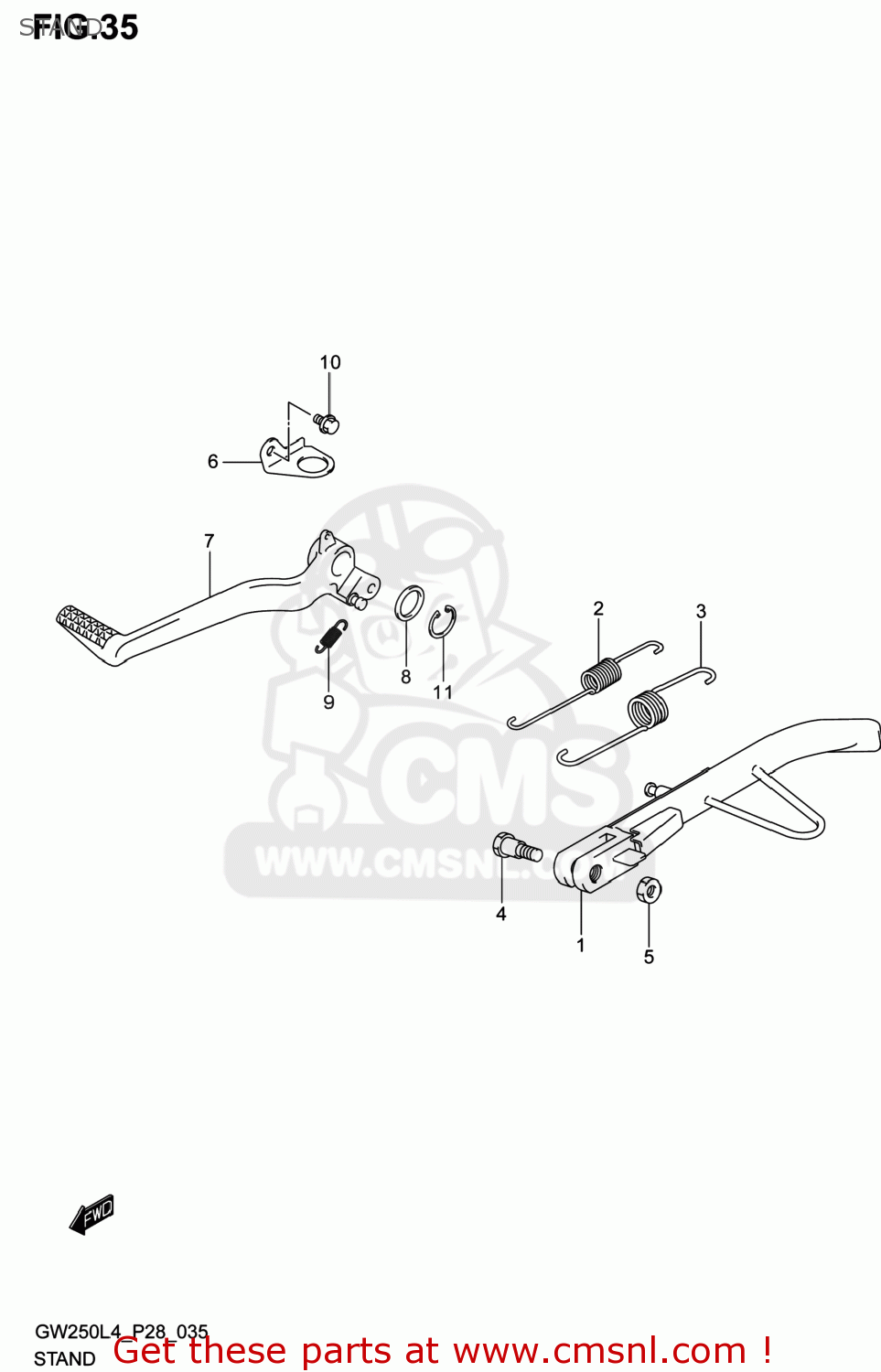

Stand diagram GW250 INAZUMA 2014 (L4) USA (E03)

STAND GW250 INAZUMA 2014 (L4) USA (E03)

STAND GW250 INAZUMA 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4231048H10
ref: 1

STAND,PROP

€ 40.50

2

4242348H00
ref: 2

SPRING,PROP STAND

€ 4.00

3

4242448H00
ref: 3

SPRING,PROP STAND OUTER

€ 4.00

4

0911110036
ref: 4

BOLT(10X38)

€ 5.50

5

4232148H00
ref: 5

NUT

€ 2.00

6

4157748H00
ref: 6

BRACKET,STOP LAMP SWITCH

€ 1.50

7

4311148H00
ref: 7

PEDAL,BRAKE

€ 138.50

8

0916018040
ref: 8

WASHER(18X24X1)

€ 1.50

9

0944311033
ref: 9

SPRING

€ 4.50

10

015500508A
ref: 10

BOLT

€ 2.00

11

083313118A
ref: 11

CIRCLIP

€ 2.00
