OIL PAN/OIL PUMP
GW250 INAZUMA 2014 (L4) USA (E03)

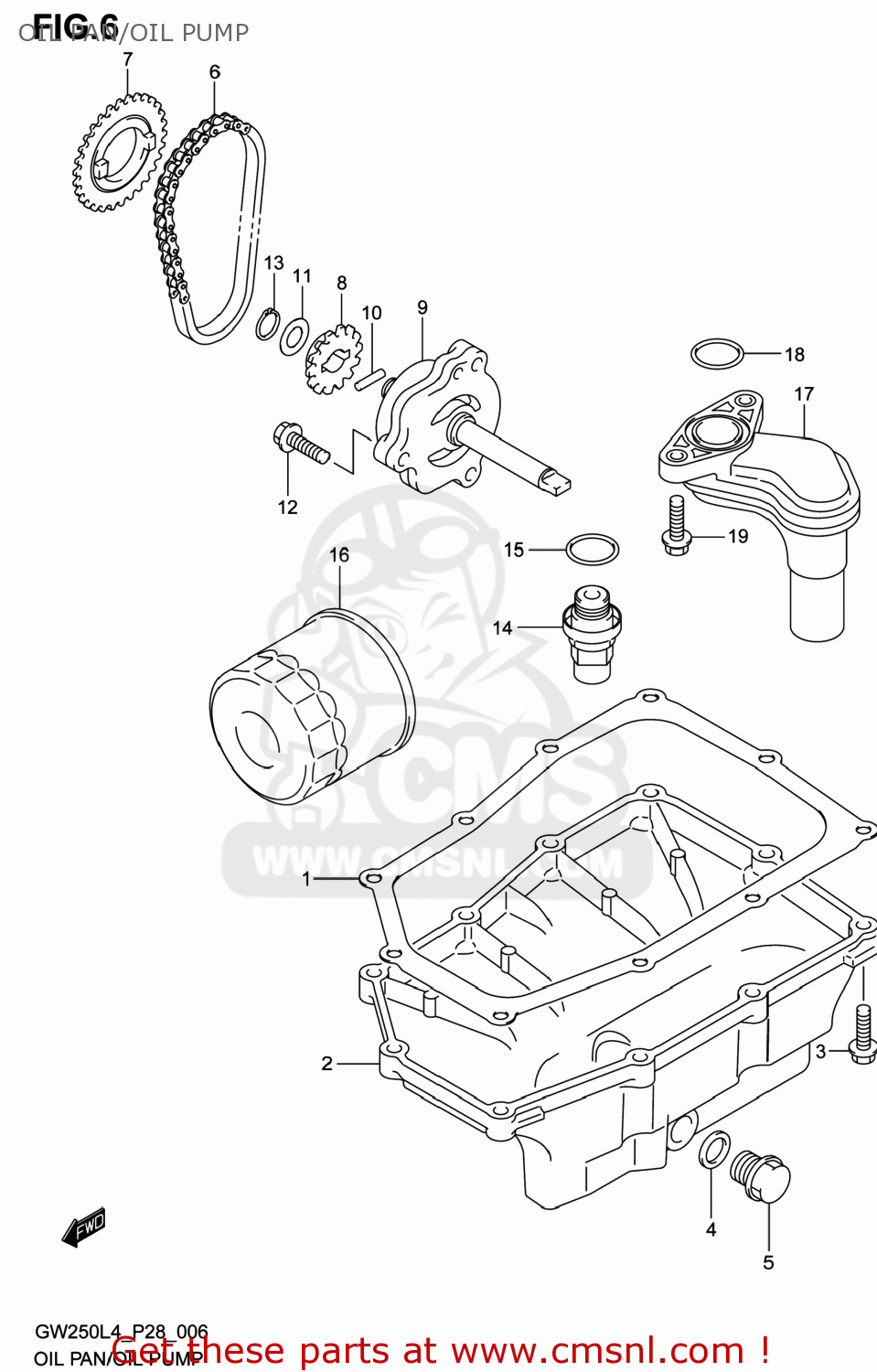

Oil pan/oil pump diagram GW250 INAZUMA 2014 (L4) USA (E03)
OIL PAN/OIL PUMP GW250 INAZUMA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1148948H00
ref: 1
GASKET,OIL PAN(ASB) (NAS)
€ 13.50
2
1151148H00
ref: 2
PAN,OIL
€ 105.00
3
015470625A
ref: 3
BOLT
€ 2.50
4
0916814L01
ref: 4
GASKET(13.8X18.8X4.8) (NAS)
€ 1.50
5
0924714043
ref: 5
PLUG(14X12)
€ 4.50
6
1631048H00
ref: 6
CHAIN,OIL PUMP DRIVE
€ 6.00
7
1632148H00
ref: 7
SPROCKET,OIL PUMP DRIVE
€ 14.00
7
1632148H00
ref: 7
SPROCKET,OIL PUMP DRIVE
€ 14.00
8
1633148H00
ref: 8
SPROCKET,OIL PUMP DRIVEN
€ 9.00
8
1633148H00
ref: 8
SPROCKET,OIL PUMP DRIVEN
€ 9.00
9
1640048H00
ref: 9
PUMP ASSY,OIL
€ 41.00
10
1642148H00
ref: 10
PIN,OIL PUMP
€ 2.00
11
1642248H00
ref: 11
WASHER,PUMP DRIVEN GEAR THR
€ 2.50
12
015470625A
ref: 12
BOLT
€ 2.50
13
0833131109
ref: 13
CIRCLIP
€ 2.00
14
1644048H00
ref: 14
VALVE ASSY,OIL RELIEF
€ 40.50
15
0916816010
ref: 15
GASKET(16X22X2) (NAS)
€ 2.00
16
1651007J00
ref: 16
FILTER ASSY,ENGINE OIL
€ 12.50
17
1652048H00
ref: 17
STRAINER,ENGINE OIL
€ 13.50
18
0928023L01
ref: 18
O RING(D:2.4,ID22.8)
€ 3.00
19
015500625A
ref: 19
BOLT
€ 2.50
