REAR SHOCK ABSORBER

GW250 INAZUMA 2014 (L4) USA (E03)

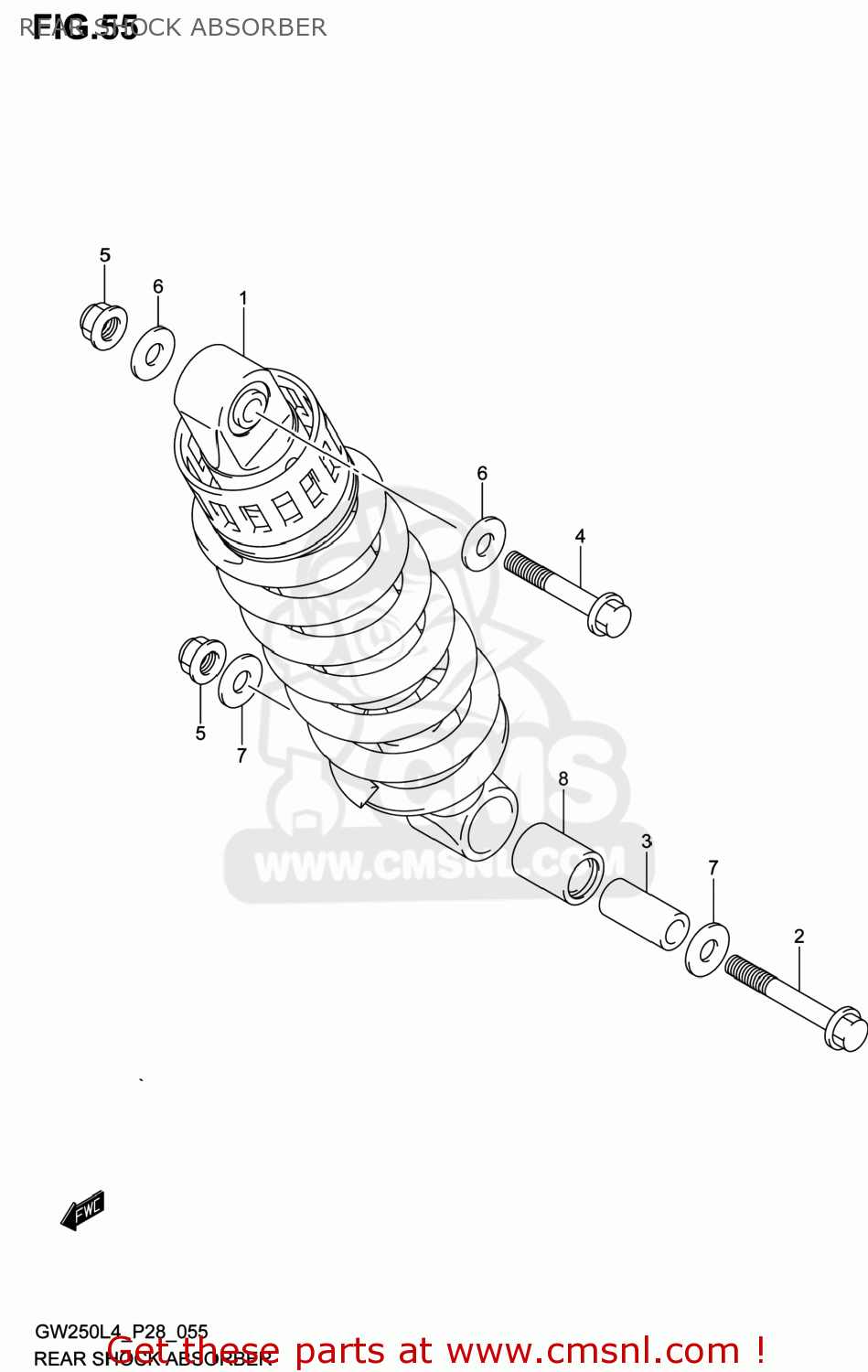

Rear shock absorber diagram GW250 INAZUMA 2014 (L4) USA (E03)

REAR SHOCK ABSORBER GW250 INAZUMA 2014 (L4) USA (E03)

REAR SHOCK ABSORBER GW250 INAZUMA 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6210048H2028W
ref: 1

ABSORBER ASSY,RR SHOCK

€ 623.00

1

6210048H2028W
ref: 1

ABSORBER ASSY,RR SHOCK

€ 623.00

2

6231348H00
ref: 2

BOLT,RR SHOCK ABSORBER LWR

€ 19.00

3

6231748H00
ref: 3

SPACER,RR SHOCK ABS LWR

€ 4.50

4

0910310213
ref: 4

BOLT(10X52)

€ 4.00

5

0915910115
ref: 5

NUT

€ 4.00

6

0916010020
ref: 6

WASHER(10.5X24X1)

€ 2.00

7

0916010093
ref: 7

WASHER(10.5X24X2.3)

€ 2.00

8

0926317L01
ref: 8

BEARING(17X24X32)

€ 6.50
