REAR FENDER

GW250 INAZUMA 2014 (L4) USA (E03)

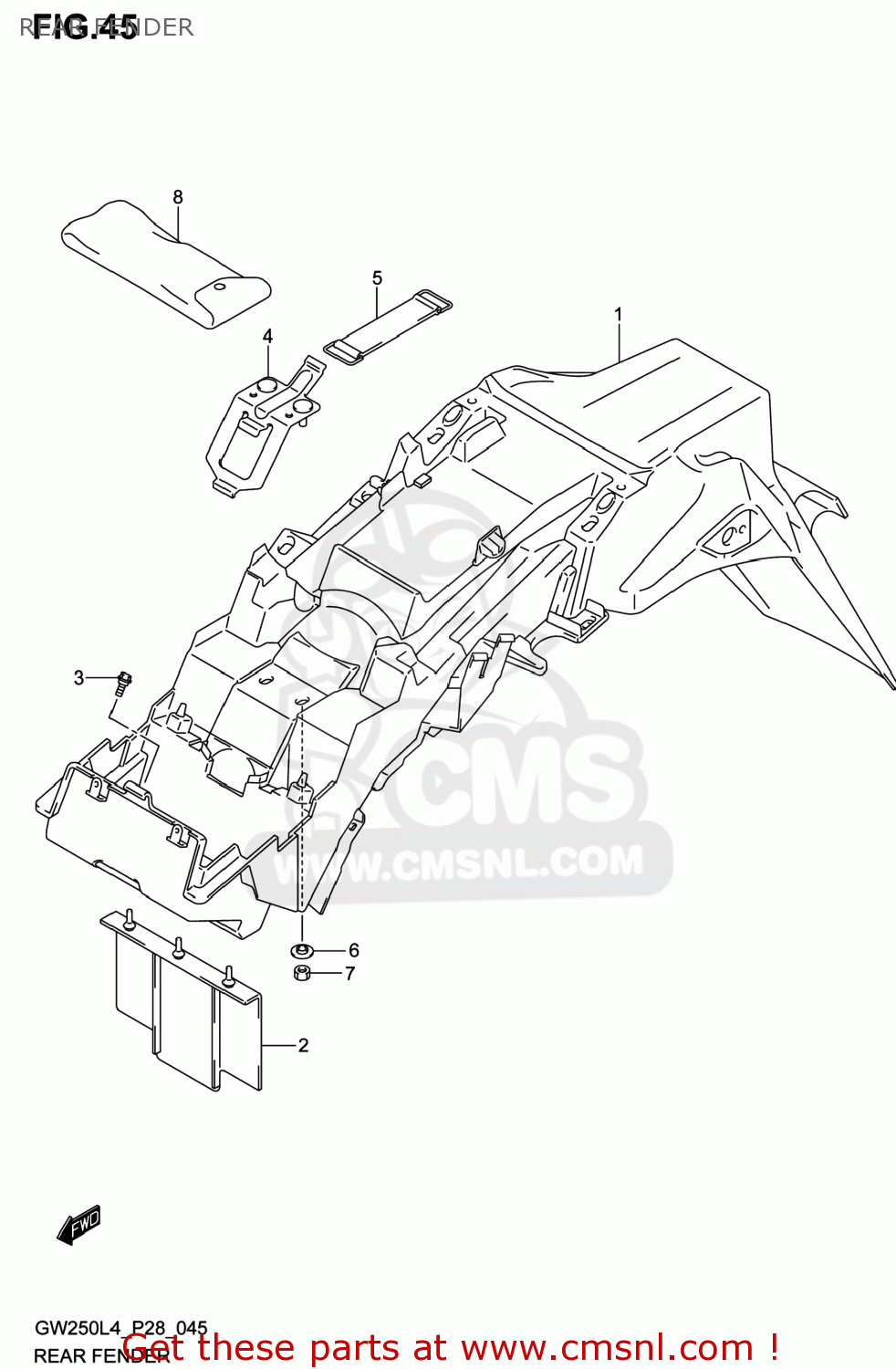

Rear fender diagram GW250 INAZUMA 2014 (L4) USA (E03)

REAR FENDER GW250 INAZUMA 2014 (L4) USA (E03)

REAR FENDER GW250 INAZUMA 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6311148H30
ref: 1

FENDER,REAR

€ 0.00

2

6311348H00
ref: 2

MUDGUARD,RR FENDER

€ 4.50

3

0911106107
ref: 3

BOLT(6X12)

€ 3.00

4

4155048H00
ref: 4

HOLDER,TOOL

€ 4.00

5

4743548H00
ref: 5

BAND,TOOL

€ 4.50

6

4744548H00
ref: 6

WASHER,TOOL HOLDER

€ 2.50

7

083161006A
ref: 7

NUT

€ 2.50

8

9651048H00
ref: 8

TOOL ASSY

€ 36.00
