CRANKCASE
GW250 INAZUMA 2014 (L4) USA (E03)

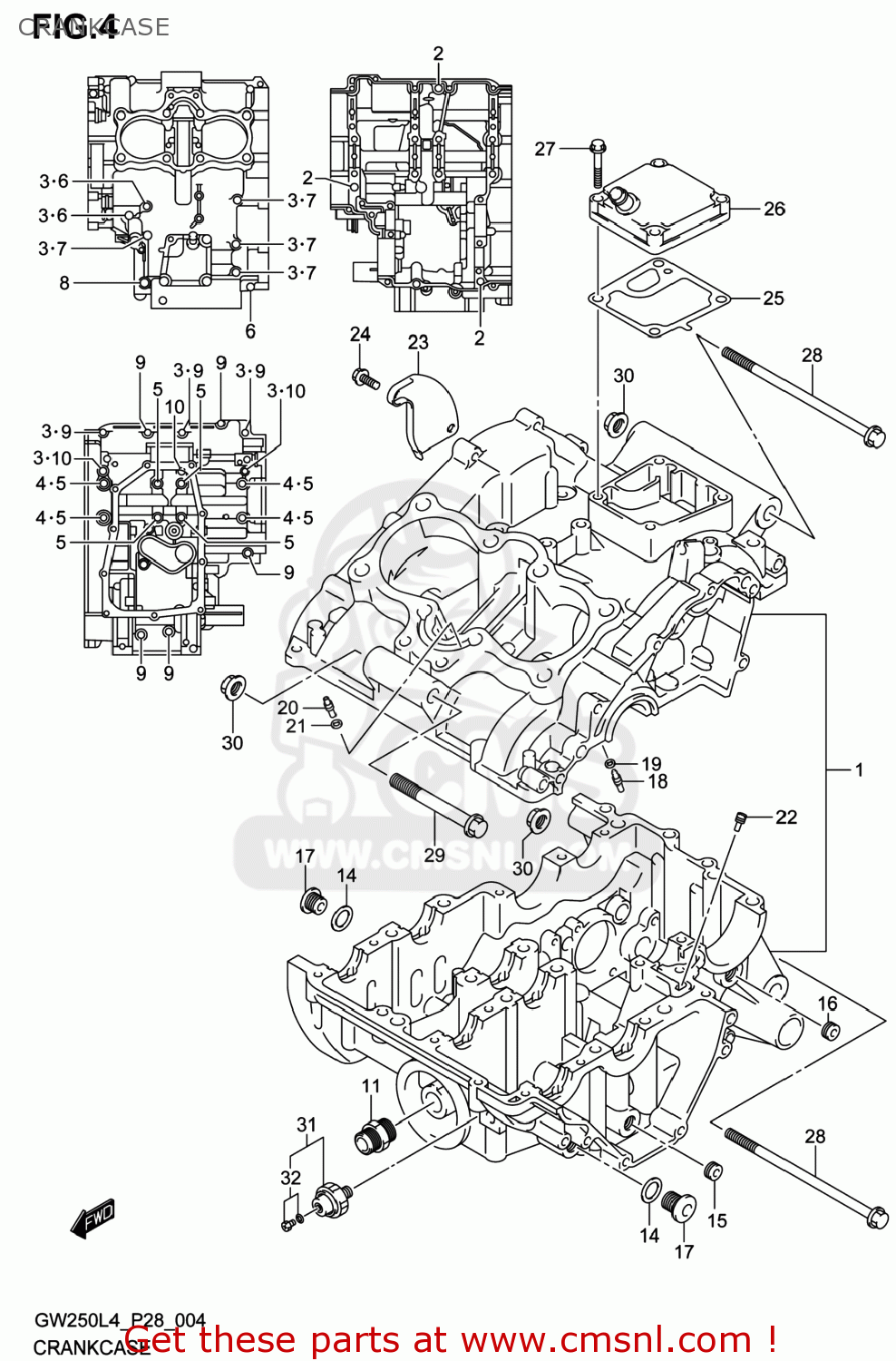

Crankcase diagram GW250 INAZUMA 2014 (L4) USA (E03)
CRANKCASE GW250 INAZUMA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130048871
ref: 1
CRANKCASE SET
€ 627.00
2
0421111169
ref: 2
PIN
€ 2.00
3
0916806L04
ref: 3
GASKET(5.8X13X1.8) (NAS)
€ 3.00
4
0916808035
ref: 4
GASKET(8.2X14X1) (NAS)
€ 1.50
5
0910308133
ref: 5
BOLT(8X105)
€ 4.50
6
015470635A
ref: 6
BOLT
€ 3.00
7
015470655A
ref: 7
BOLT
€ 2.50
8
015500855A
ref: 8
BOLT
€ 2.00
9
015470635A
ref: 9
BOLT
€ 3.00
10
015470690A
ref: 10
BOLT
€ 2.00
11
1659148H00
ref: 11
UNION,OIL FILTER STAND
€ 3.00
12
1222817E000E0
ref: 12
BEARING,CRANK THRUST(YELLOW)
€ 7.50
13-1
1222817E000E0
ref: 13-1
BEARING,CRANK THRUST(YELLOW)
€ 7.50
13-2
1222817E000F0
ref: 13-2
BEARING,CRANK THRUST(WHITE)
€ 7.50
13-3
1222817E000G0
ref: 13-3
BEARING,CRANK THRUST(ORANGE)
€ 9.50
13-4
1222817E000H0
ref: 13-4
BEARING,CRANK THRUST(PINK)
€ 9.50
13-5
1222817E000J0
ref: 13-5
BEARING,CRANK THRUST(BROWN)
€ 9.50
13-6
1222817E000K0
ref: 13-6
BEARING,CRANK THRUST(PURPLE)
€ 6.00
13-7
1222817E000L0
ref: 13-7
BEARING,CRANK THRUST(NO COLOR)
€ 6.00
13-7
1222817E000L0
ref: 13-7
BEARING,CRANK THRUST(NO COLOR)
€ 6.00
14
0916814L01
ref: 14
GASKET(13.8X18.8X4.8) (NAS)
€ 1.50
15
1132248H00
ref: 15
PLUG,OIL GALLERY
€ 3.00
16
0924606001
ref: 16
PLUG(1/4PT,H:7.5)
€ 2.00
17
0924814013
ref: 17
PLUG,14X12
€ 3.50
18
1139048H00
ref: 18
JET,PISTON COOLING
€ 6.50
19
0928004004
ref: 19
O RING(D:1.2,ID:4)
€ 2.00
20
1132948H00
ref: 20
JET,OIL GALLERY CYLINDER
€ 3.00
21
0928004004
ref: 21
O RING(D:1.2,ID:4)
€ 2.00
22
1131348H00
ref: 22
JET,T/M COOLING
€ 2.50
23
1131748H00
ref: 23
PLATE,OIL SEPARATOR
€ 2.50
24
015470612A
ref: 24
BOLT
€ 2.00
25
1131848H00
ref: 25
GASKET,BREATHER COVER(NA) (NAS)
€ 3.00
26
1133048H00
ref: 26
COVER,BREATHER
€ 11.50
27
015470630A
ref: 27
BOLT
€ 2.50
28
0910310115
ref: 28
BOLT(10X155)
€ 10.00
29
0910310445
ref: 29
BOLT(10X85)
€ 4.50
30
0915910L06
ref: 30
NUT
€ 1.50
31
3782033D10
ref: 31
SWITCH ASSY,OIL PRESSURE
€ 29.00
32
3782233D00
ref: 32
BOLT,OIL PRESSURE SWITCH
€ 3.00
