FRONT MASTER CYLINDER

GW250 INAZUMA 2014 (L4) USA (E03)

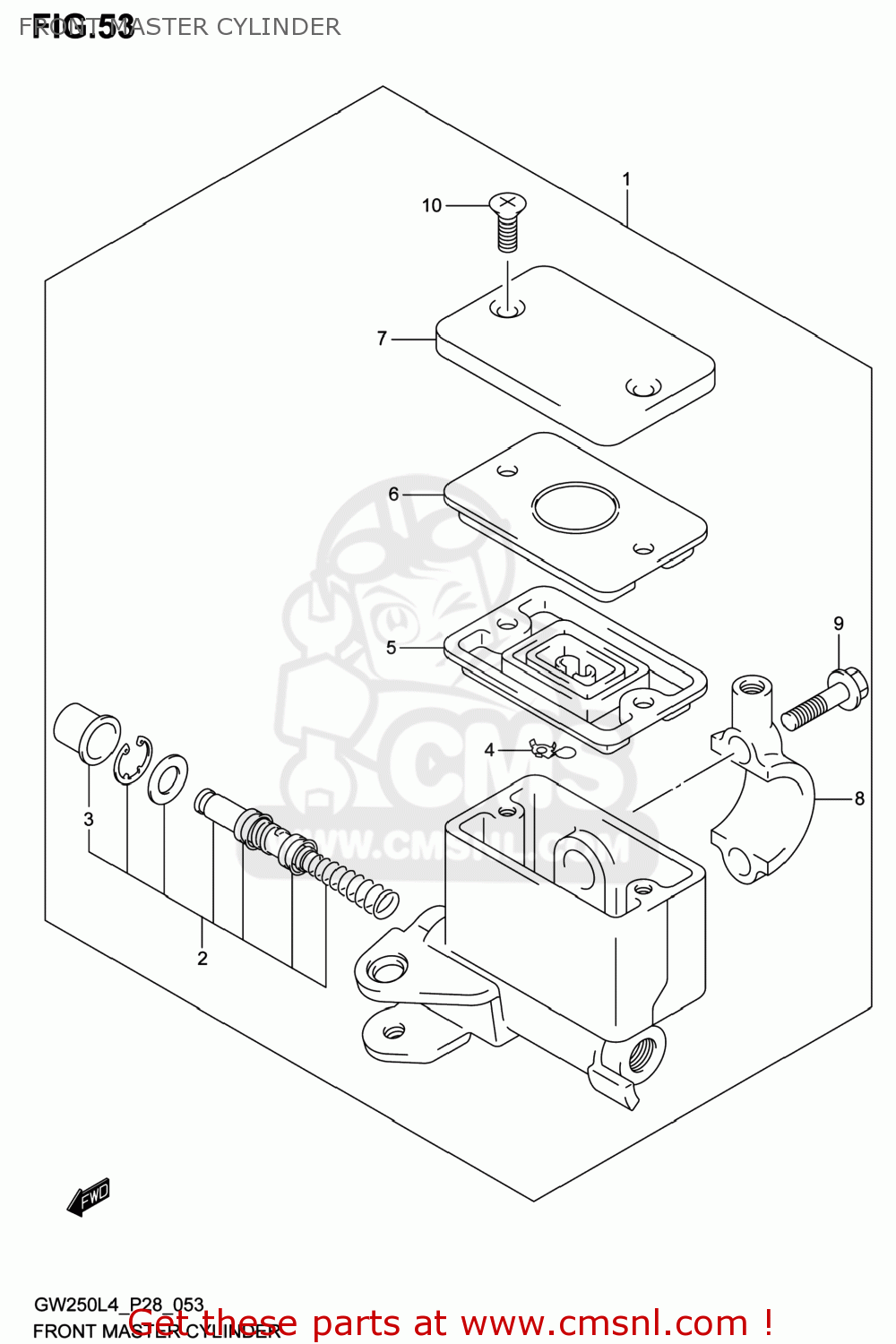

Front master cylinder diagram GW250 INAZUMA 2014 (L4) USA (E03)

FRONT MASTER CYLINDER GW250 INAZUMA 2014 (L4) USA (E03)

FRONT MASTER CYLINDER GW250 INAZUMA 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5960048H20
ref: 1

CYLINDER ASSY,FR MASTER

€ 134.50

2

5960003820
ref: 2

PISTON & CUP SET

€ 32.00

3

5966644300
ref: 3

BOOT

€ 6.00

4

5966432F00
ref: 4

PROTECTOR

€ 7.50

5

5966749460
ref: 5

5966749460

6

5966841C00
ref: 6

PLATE,DIAPHRAGM

€ 8.00

7

5966910G00
ref: 7

CAP

€ 19.00

8

5967132F00
ref: 8

HOLDER

€ 17.00

9

5967502FA0
ref: 9

BOLT(6X22)

€ 3.00

10

6968949300
ref: 10

SCREW

€ 1.50
