Buy Suzuki GW Parts Online
home
CRANK BALANCER
GW250 INAZUMA 2014 (L4) USA (E03)

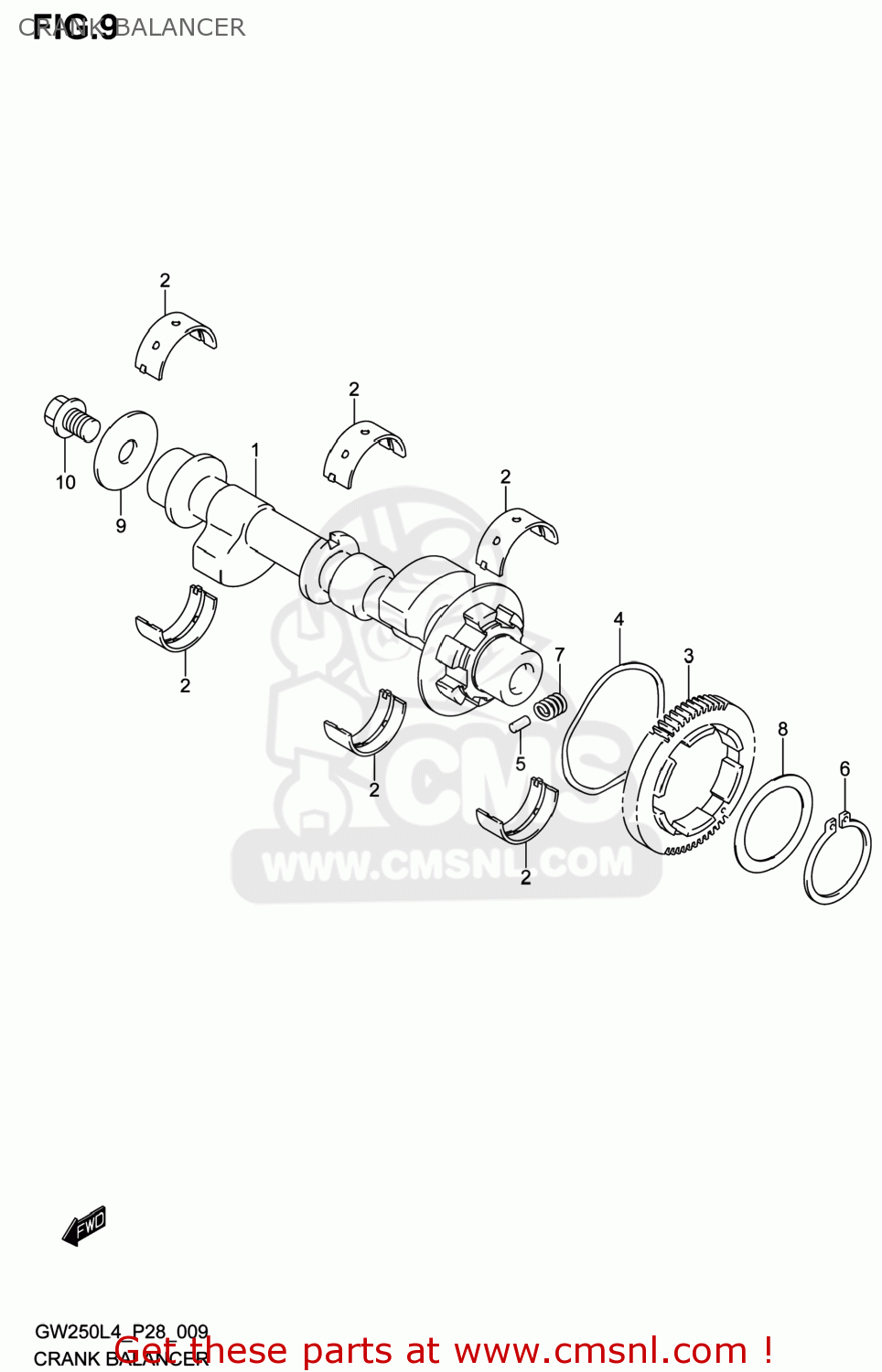

Crank balancer diagram GW250 INAZUMA 2014 (L4) USA (E03)
CRANK BALANCER GW250 INAZUMA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1265048H00
ref: 1
BALANCER,CRANK
€ 195.50
2-1
1222948H000A0
ref: 2-1
BEARING,CRANK BALANCER
€ 22.50
2-1
1222948H000A0
ref: 2-1
BEARING,CRANK BALANCER
€ 22.50
2-2
1222948H000B0
ref: 2-2
BEARING,CRANK BALANCER
€ 14.50
2-2
1222948H000B0
ref: 2-2
BEARING,CRANK BALANCER
€ 14.50
2-3
1222948H000C0
ref: 2-3
BEARING,CRANK BALANCER
€ 22.00
2-3
1222948H000C0
ref: 2-3
BEARING,CRANK BALANCER
€ 22.00
2-4
1222948H000D0
ref: 2-4
BEARING,CRANK BALANCER
€ 22.00
2-4
1222948H000D0
ref: 2-4
BEARING,CRANK BALANCER
€ 22.00
3
1266648H00
ref: 3
GEAR,CRANK BALANCER DRIVEN
€ 35.50
3
1266648H00
ref: 3
GEAR,CRANK BALANCER DRIVEN
€ 35.50
4
0916460001
ref: 4
WASHER
€ 13.00
5
0920204017
ref: 5
PIN(4.5X9.5)
€ 3.00
6
0938038008
ref: 6
CIRCLIP
€ 3.00
7
0944009031
ref: 7
SPRING
€ 3.00
8
0821138521
ref: 8
WASHER
€ 2.00
9
0916010151
ref: 9
WASHER(10X37X3)
€ 2.50
10
015501016A
ref: 10
BOLT
€ 3.00
