TRANSMISSION
GW250 INAZUMA 2014 (L4) USA (E03)

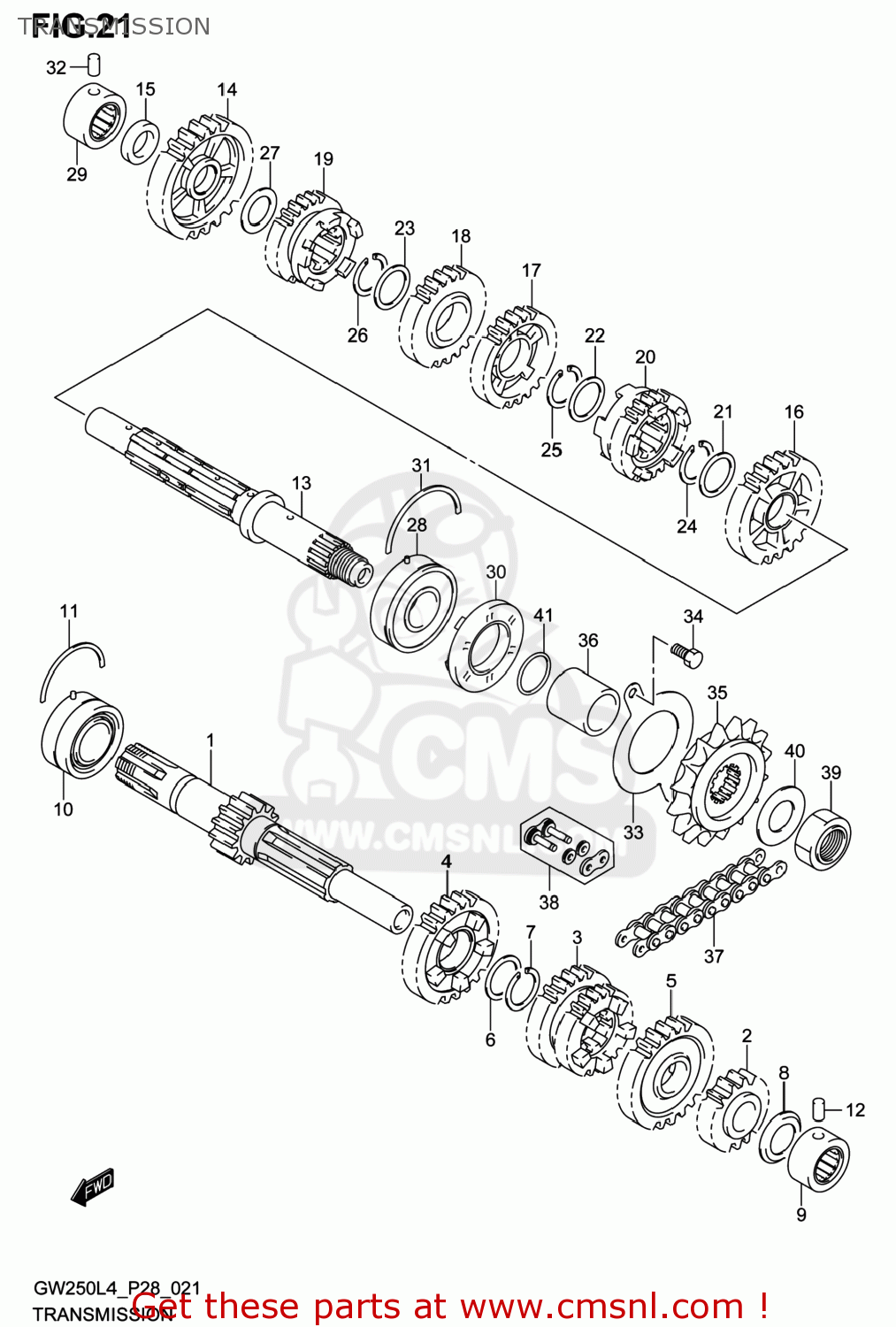

Transmission diagram GW250 INAZUMA 2014 (L4) USA (E03)
TRANSMISSION GW250 INAZUMA 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412048H00
ref: 1
SHAFT,COUNTER
€ 169.50
2
2422148H00
ref: 2
GEAR,2ND DRIVE
€ 12.00
3
2423148H00
ref: 3
GEAR,3RD & 4TH DRIVE
€ 19.00
3
2423148H00
ref: 3
GEAR,3RD & 4TH DRIVE
€ 19.00
4
2425148H00
ref: 4
GEAR,5TH DRIVE
€ 14.00
5
2426048H00
ref: 5
GEAR,6TH DRIVE
€ 15.50
6
0918122017
ref: 6
SHIM(22X28X1)
€ 2.00
7
0938022016
ref: 7
CIRCLIP
€ 1.50
8
2427148H00
ref: 8
SEAL,COUNTER SHAFT,L BEARING
€ 6.50
9
0926317050
ref: 9
BEARING(17X30X16)
€ 11.50
10
0926722001
ref: 10
BEARING(22X47X20.6)
€ 39.00
11
0939047008
ref: 11
C RING
€ 1.50
12
0422106129
ref: 12
PIN
€ 1.50
13
2413048H00
ref: 13
SHAFT,DRIVE
€ 32.00
14
2431048H00
ref: 14
GEAR,1ST DRIVEN
€ 16.50
15
2431348H00
ref: 15
SPACER,1ST DRIVEN GEAR
€ 1.50
16
2432048H00
ref: 16
GEAR,2ND DRIVEN
€ 16.00
17
2433148H00
ref: 17
GEAR,3RD DRIVEN
€ 13.00
18
2434148H00
ref: 18
GEAR,4TH DRIVEN
€ 12.50
19
2435148H00
ref: 19
GEAR,5TH DRIVEN
€ 19.50
20
2436148H00
ref: 20
GEAR,6TH DRIVEN
€ 14.00
21
0918122017
ref: 21
SHIM(22X28X1)
€ 2.00
22
0918122017
ref: 22
SHIM(22X28X1)
€ 2.00
23
0918122017
ref: 23
SHIM(22X28X1)
€ 2.00
24
0938022016
ref: 24
CIRCLIP
€ 1.50
25
0938022016
ref: 25
CIRCLIP
€ 1.50
26
0938022016
ref: 26
CIRCLIP
€ 1.50
27
0821117262
ref: 27
WASHER
€ 2.00
28
0926222039
ref: 28
BEARING(22X56X16)
€ 22.00
29
0926317050
ref: 29
BEARING(17X30X16)
€ 11.50
30
0928330L01
ref: 30
SEAL,OIL(30X56X9.5)
€ 6.50
31
0939056002
ref: 31
C RING
€ 1.50
32
0422106129
ref: 32
PIN
€ 1.50
33
2474148H00
ref: 33
RETAINER,DRIVE SHAFT OIL SEAL
€ 2.50
34
015000612A
ref: 34
BOLT
€ 2.00
35
2751048H10
ref: 35
SPROCKET,ENGINE
€ 10.00
36
2753148H00
ref: 36
SPACER,ENGINE SPROCKET
€ 8.00
37
2760048H10116
ref: 37
CHAIN,DRIVE(DID 520VF)
€ 210.00
38
2762048H10
ref: 38
JOINT SET,CHAIN
€ 26.00
39
0914018008
ref: 39
NUT
€ 4.50
40
0918122016
ref: 40
SHIM(22X36X1)
€ 1.50
41
0928021008
ref: 41
O RING(D:2.5,ID:21)
€ 2.00
