AIR CLEANER

GSX750R 1986 (G) GENERAL EXPORT (E01)

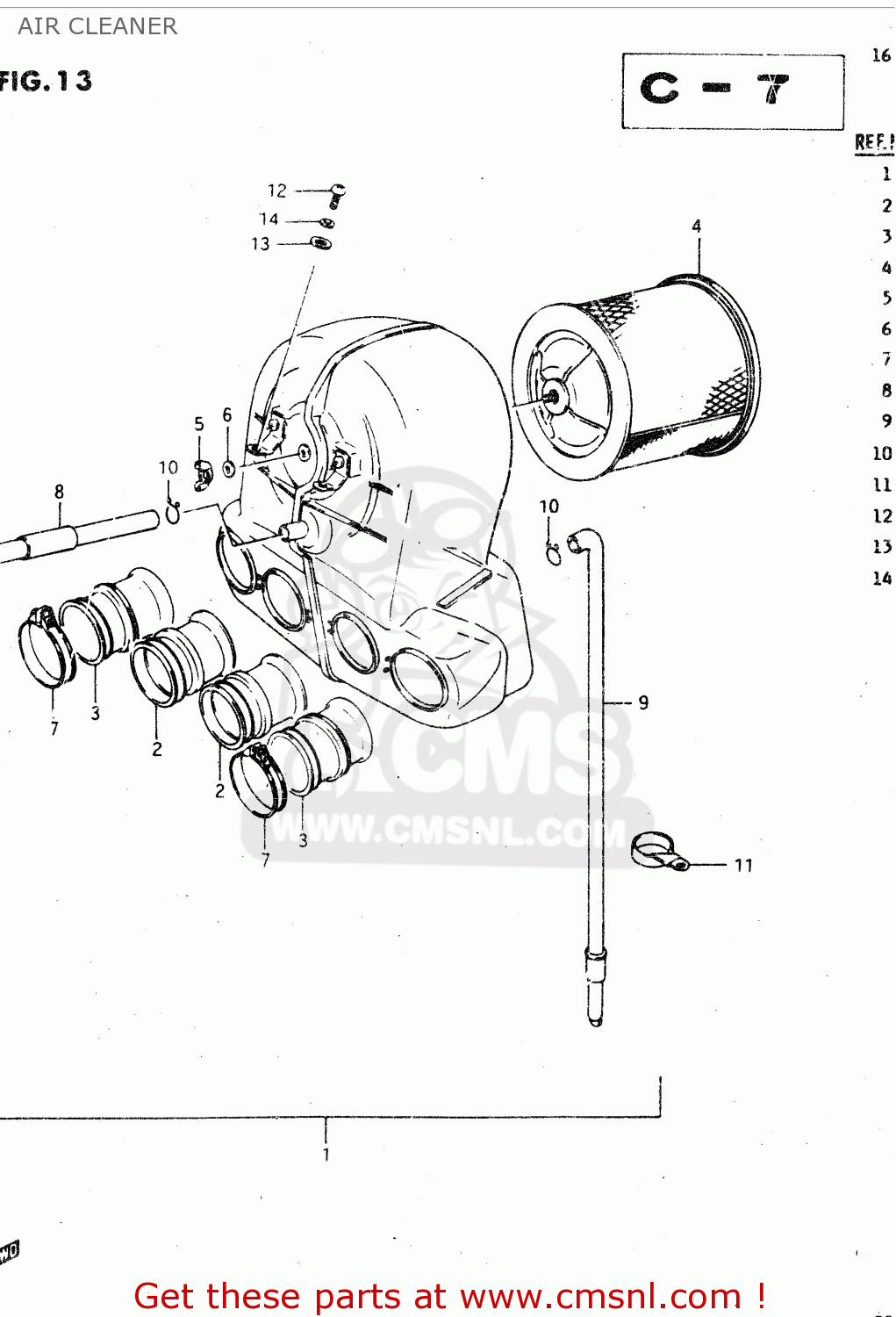

Air cleaner diagram GSX750R 1986 (G) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1370027A01
ref: 1

CLEANER ASSEMBLY,AIR

€ 206.50

1388127A00
ref: 2

TUBE,OUTLET NO.1

€ 16.00

1388227A00
ref: 3

TUBE,OUTLET NO.2

€ 17.50

1378027A00
ref: 4

FILTER ASSY

€ 46.00

0831712058
ref: 5

NUT, WING

€ 2.00

0832211058
ref: 6

WASHER 5MM

€ 2.50

0940256207
ref: 7

CLAMP

€ 3.50

1385027A00
ref: 8

TUBE,BREATHER

€ 6.00

1387021447
ref: 9

DRAIN TUBE

€ 23.50

0940114301
ref: 10

CLIP

€ 2.00

1387927A01
ref: 11

CLAMP,AIR CLEANER DRAIN TUBE

€ 4.50

0211206208
ref: 12

SCREW

€ 2.00

0916006019
ref: 13

WASHER(6.5X16X1.2)

€ 1.50

0832121067
ref: 14

WASHER,LOCK

€ 2.50
