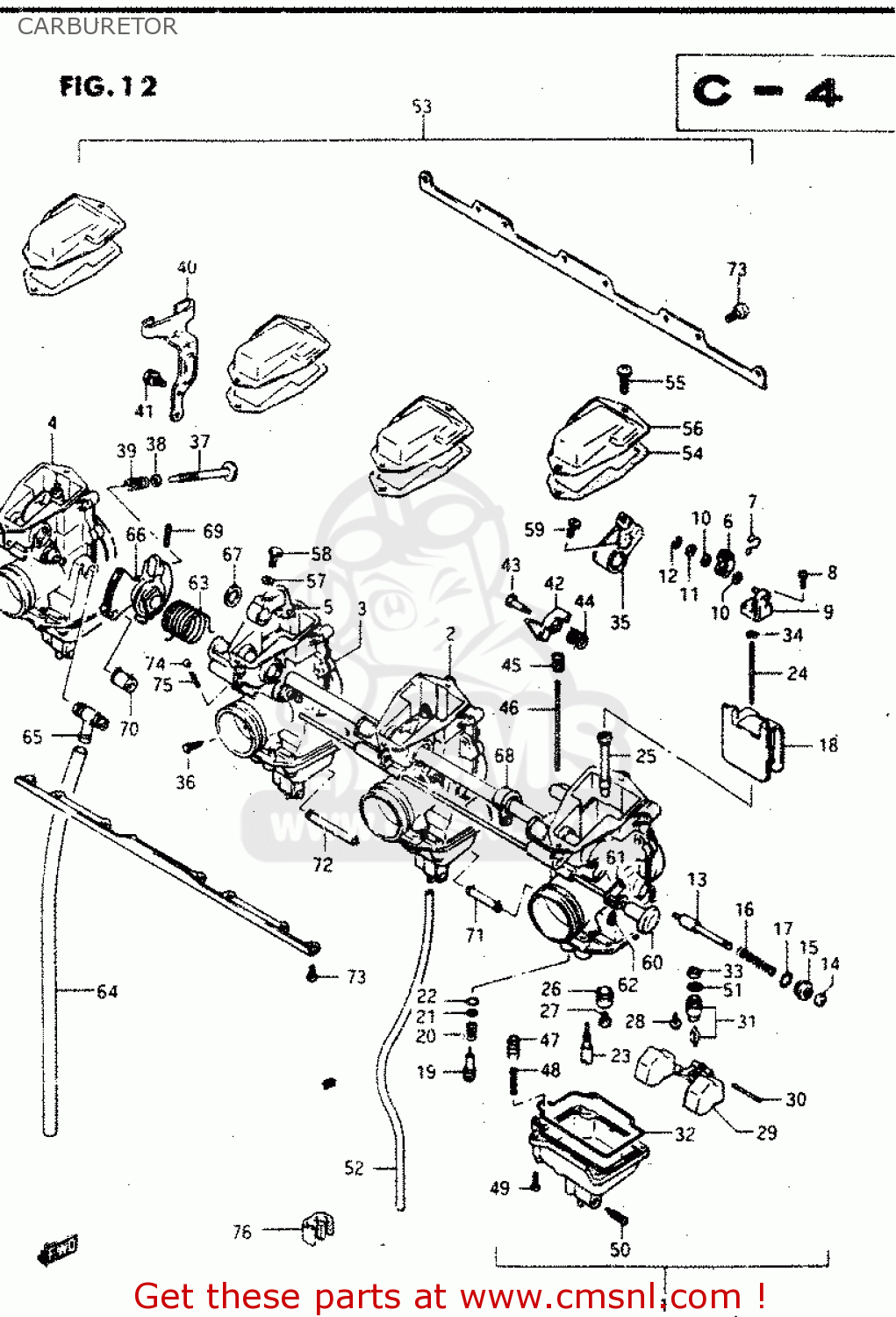

CARBURETOR

ref

part #

description

quantity

1

1320127A02
ref: 1

CARBURETOR ASSY, LH

€ 519.50

2

1320227A02
ref: 2

CARBURETOR ASSY, ML

€ 535.50

3

1320327A02
ref: 3

CARBURETOR ASSY, MR

€ 628.00

4

1320427A02
ref: 4

CARBURETOR ASSY, RH

€ 628.00

5

1354114A00
ref: 5
MR

ARM,THROTTLE

€ 34.50

6

1344714A00
ref: 6

PLATE

€ 16.50

7

1326827A02
ref: 7

SPRING

€ 9.50

8

1356614A00
ref: 8

SCREW

€ 2.50

9

1339827A02
ref: 9

CONNECTOR

€ 18.00

10

1344514A00
ref: 10

GASKET (NAS)

€ 3.00

11

1344914A00
ref: 11

WASHER

€ 2.00

12

1329849000
ref: 12

E-RING

€ 2.00

13

1341105300
ref: 13

PLUNGER

€ 23.50

14

1368231210
ref: 14

CAP,STARTER VALVE

€ 5.00

15

1341844080
ref: 15

GUIDE SCREW,PLUNGER

€ 8.00

16

1341743010
ref: 16

SPRING

€ 3.50

17

1327847090
ref: 17

O RING

€ 2.00

18

1355127A12
ref: 18
CA:1.5

VALVE, PISTON

€ 126.00

19

1327947070
ref: 19
1/2

SCREW,PILOT

€ 11.50

20

1326847070
ref: 20

SPRING

€ 5.00

21

1327744080
ref: 21

GASKET

€ 2.00

22

1327844080
ref: 22

O-RING

€ 4.00

23

0949232004
ref: 23

JET,PILOT(32.5)

€ 14.50

24

1330327A00
ref: 24
6DP2-3

NEEDLE, JET

€ 0.00

25

0949400496
ref: 25

JET,NEEDLE(P-5)

€ 24.00

26

1333113A00
ref: 26

RING,MAIN JET FIXING

€ 5.50

27

0949197003
ref: 27

JET,MAIN(97.5)

€ 8.50

28

1360243410
ref: 28

SCREW

€ 2.50

29

1325227A00
ref: 29

FLOAT

€ 27.00

30

1325492311
ref: 30

PIN,FLOAT

€ 2.00

31

1337044500
ref: 31

VALVE ASSY,NEEDLE

€ 40.50

32

1325127A00
ref: 32

O RING,FLOAT CHAMBER

€ 9.00

33

1337665010
ref: 33

FILTER

€ 6.50

34

1339410010
ref: 34

CLIP

€ 4.50

35

1354127A00
ref: 35
LH,ML,RH

LEVER ASSY

€ 44.00

36

1360527A02
ref: 36

SCREW

€ 7.50

37

1326701400
ref: 37
MR

SCREW,THROTTLE STOP

€ 10.00

38

1342738300
ref: 38
MR

WASHER

€ 1.50

39

1326849310
ref: 39
MR

SPRING

€ 4.50

40

1362127A00
ref: 40
MR

BRACKET

€ 18.50

41

1360327A00
ref: 41
MR

SCREW

€ 1.50

42

1349027A00
ref: 42
LH,MR

LEVER

€ 9.50

43

1361314A00
ref: 43
LH,MR

BOLT

€ 8.00

44

1349427A00
ref: 44
LH,MR

SPRING,PLUNGER

€ 6.00

45

1349944500
ref: 45
LH,MR

BOOT, ACCELE PUMP ROD

€ 11.00

46

1348727A00
ref: 46
LH,MR

ROD

€ 9.50

47

1349327A00
ref: 47
LH,MR

PLUNGER

€ 9.00

48

1327109400
ref: 48
LH,MR

SPRING

€ 4.50

49

1360227A10
ref: 49

SCREW

€ 1.50

50

1324713A00
ref: 50

SCREW,DRAIN

€ 5.50

51

6626399050
ref: 51

O RING

€ 6.00

52

1368027A30
ref: 52

HOSE SET (3X5X525)

€ 15.50

53

1321027A02
ref: 53

FLANG SET

€ 0.00

54

1326627A00
ref: 54

GASKET,CARBURETOR TOP (NAS)

€ 6.00

55

1360127A00
ref: 55

SCREW

€ 2.00

56

1326127A00
ref: 56

COVER,CARBURETOR,TOP

€ 14.50

57

1361445010
ref: 57

WASHER

€ 2.50

58

1361343010
ref: 58

BOLT

€ 1.50

59

1337184100
ref: 59

SCREW

€ 2.50

60

1341027A00
ref: 60

SHAFT ASSY

€ 36.00

61

1342227A00
ref: 61

LEVER

€ 6.50

62

1360509300
ref: 62

SCREW,THROTTLE ADJUST

€ 3.50

63

1357327A02
ref: 63

SPRING

€ 8.00

64

1368427A00
ref: 64

HOSE

€ 18.00

65

1368547070
ref: 65

NIPPLE

€ 25.00

66

1355527A00
ref: 66

LEVER ASSY

€ 74.50

67

1357438200
ref: 67

RING,THROTTLE SHAFT

€ 4.00

68

1355327A00
ref: 68

SHAFT ASSY

€ 0.00

69

1356347070
ref: 69

PIN,THROTTLE SHAFT

€ 0.00

70

1368027A00
ref: 70

HOSE SET (3X5X18)

€ 6.00

71

1368027A10
ref: 71

HOSE SET (3X5X60)

€ 9.50

72

1368027A20
ref: 72

HOSE SET (3X5X72)

€ 9.50

73

0211205128
ref: 73

SCREW

€ 2.50

74

1359693010
ref: 74

BALL,CARBURETOR

€ 3.50

75

1343443010
ref: 75

SPRING

€ 6.50

76

0940800066
ref: 76

CLIP

€ 1.50

all assemblies
