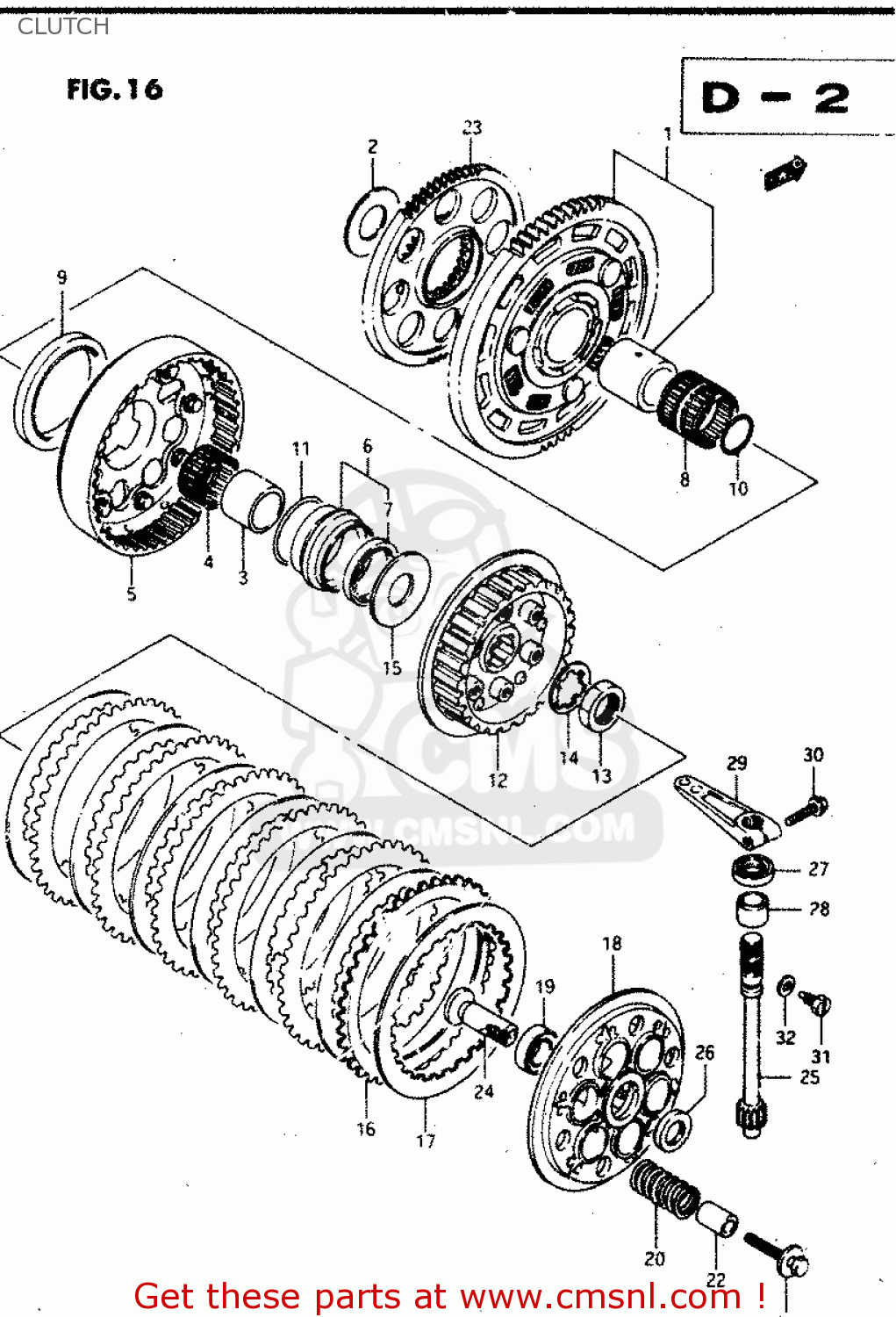

CLUTCH

ref

part #

description

quantity

1

2120027850
ref: 1
NT:75

GEAR ASSEMBLY,PRIMARY DRIVE

€ 384.50

2

0916025062
ref: 2

WASHER

€ 9.00

3

0916025086
ref: 3

SPACER (25X35X25)

€ 0.00

4

2125327A50
ref: 4

ROLLER BEARING,PRIMARY DRIVE

€ 11.50

5

2122027A31
ref: 5

HOUSING,CLUTCH

€ 901.50

6

2125027A30
ref: 6

COLLAR,CLUTCH HOUSING

€ 129.00

7

0928335023
ref: 7

SEAL,OIL(35X45X6)

€ 9.50

8

0926335017
ref: 8

BEARING(35X40X35.8)

€ 36.50

9

0920262001
ref: 9

OIL SEAL

€ 0.00

10

0928025006
ref: 10

O-RING

€ 4.00

11

0928046001
ref: 11

O-RING (D:2.4 ID:45.7)

€ 9.50

12

2141027032
ref: 12

HUB, SLEEVE

€ 0.00

13

0914022010
ref: 13

NUT

€ 8.50

14

0916722010
ref: 14

WASHER,LOCK

€ 4.00

15

0916022015
ref: 15

WASHER (22X51X2.5)

€ 5.50

16

2144127A50
ref: 16

PLATE,CLUTCH DRIVE

€ 167.50

17

2145127A31
ref: 17

PLATE,CLUTCH DRIVEN

€ 130.50

18

2146027A32
ref: 18

PLATE,CLUTCH PRESSURE

€ 81.00

19

2141327A51
ref: 19

SPRING,CLUTCH

€ 33.50

20

0944019019
ref: 20

SPRING

€ 6.00

21

0911606137
ref: 21

BOLT

€ 9.00

22

0918006186
ref: 22

SPACER(6.2X12.6X21)

€ 5.00

23

2272127A01
ref: 23

GEAR,GENERATOR DRIVE

€ 230.00

24

2312127A30
ref: 24

RACK,CLUTCH RELEASE

€ 22.00

25

2326127A30
ref: 25

PINION,CLUTCH RELEASE

€ 43.50

26

0928215006
ref: 26

SEAL,OIL(15X25X4)

€ 6.00

27

0928313002
ref: 27

SEAL,OIL(13X23X5)

€ 5.50

28

2314142000
ref: 28

BUSHING,CLUTCH RELEASE PIN

€ 9.00

29

2327127A30
ref: 29

ARM,CLUTCH RELEASE

€ 52.50

30

0154706167
ref: 30

BOLT

€ 2.00

31

2314242000
ref: 31

BOLT

€ 19.50

32

0916406006
ref: 32

WASHER

€ 2.50

all assemblies
