CYLINDER HEAD COVER

GSX750R 1986 (G) GENERAL EXPORT (E01)

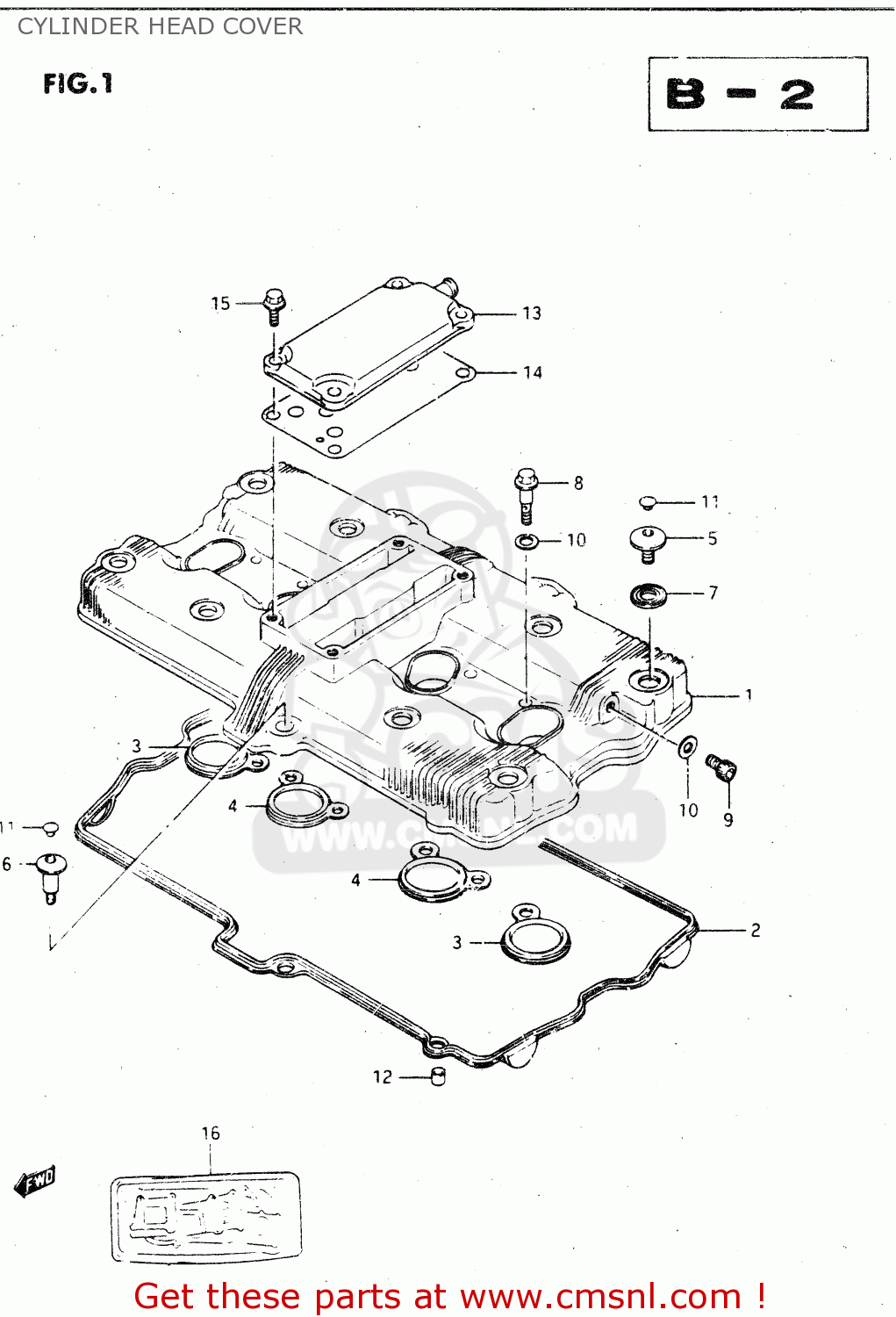

Cylinder head cover diagram GSX750R 1986 (G) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1117127A03
ref: 1

COVER,CYLINDER HEAD

€ 448.50

1117327A01
ref: 2

GASKET,CYLINDER HEAD COVER (NAS)

€ 34.00

1117827A00
ref: 3

GASKET (NAS)

€ 5.50

1117927A01
ref: 4

GASKET,HEAD COVER NO.3 (NAS)

€ 7.50

0910607009
ref: 5

BOLT(7X17.5)

€ 4.50

0910607010
ref: 6

BOLT(7X31)

€ 4.50

0916111006
ref: 7

WASHER

€ 4.50

0936008009
ref: 8

BOLT,UNION 8X35

€ 26.50

0711008125
ref: 9

PLUG, HEAD COVER

€ 2.50

0916808008
ref: 10

GASKET 8.2X14X1 (NAS)

€ 1.00

0925006008
ref: 11

CAP(OD:10)

€ 3.00

0422108129
ref: 12

PIN

€ 2.00

1117627A00
ref: 13

COVER,BREATHER

€ 31.50

1117727A00
ref: 14

GASKET (NAS)

€ 11.00

0151706205
ref: 15

BOLT

€ 2.50

1140027860
ref: 16
OPT

GASKET SET

€ 134.00

CYLINDER HEAD COVER

all assemblies
