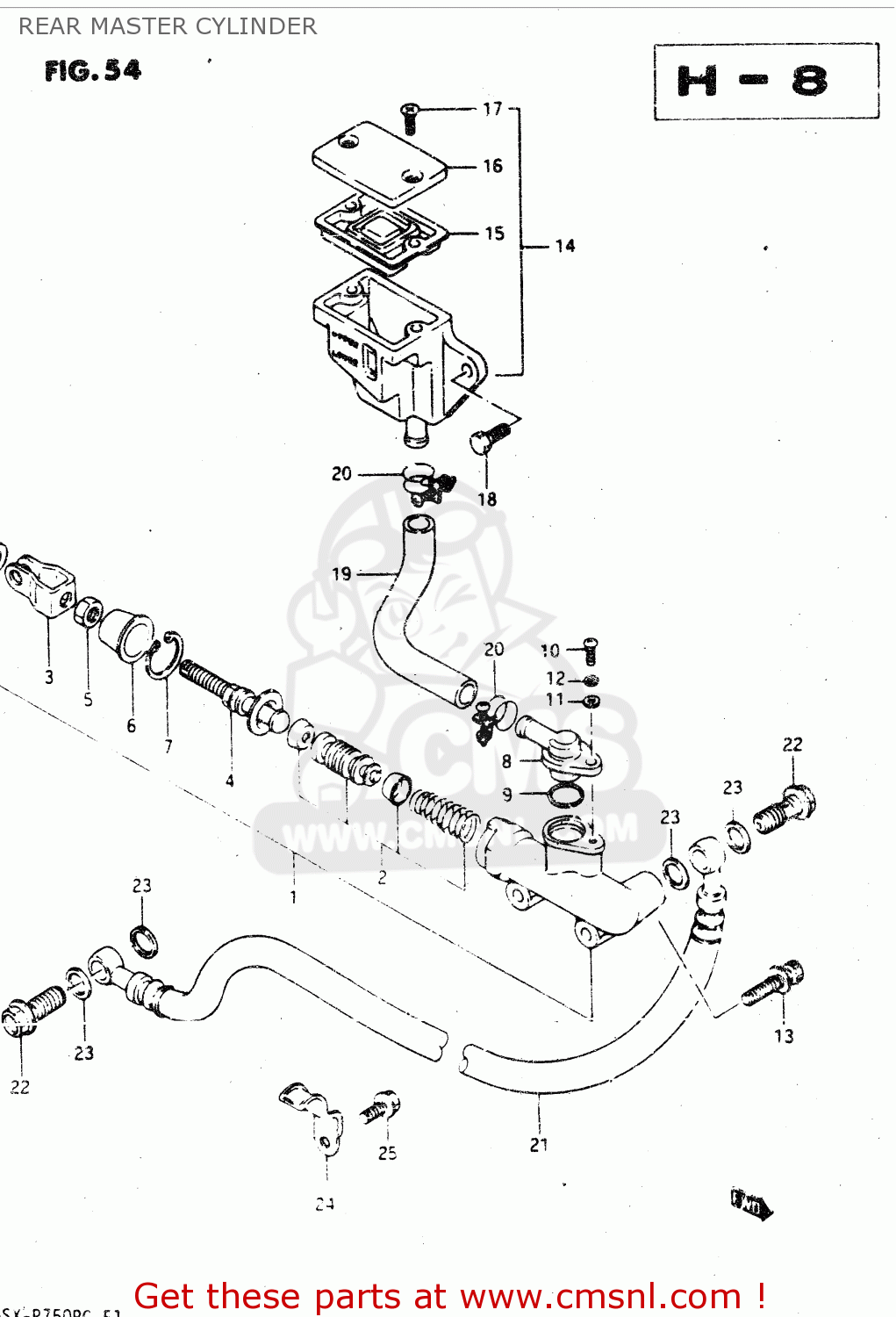

REAR MASTER CYLINDER

ref

part #

description

quantity

1

6960027A30
ref: 1

CYLINDER ASSY,RR MASTER

€ 178.00

2

6960016820
ref: 2

PISTON/CUP SET

€ 42.50

3

6969227A30
ref: 3

YOKE

€ 12.50

4

6967027A30
ref: 4

ROD,PUSH

€ 13.50

5

6969327A30
ref: 5

NUT

€ 0.00

6

6969100A00
ref: 6

BOOT

€ 3.50

7

5116270040
ref: 7

CIRCLIP

€ 3.00

8

6967205A00
ref: 8

CONNECTOR

€ 4.50

9

6968634200
ref: 9

O RING

€ 3.50

10

0211204124
ref: 10

SCREW

€ 1.50

11

0832221045
ref: 11

WASHER

€ 5.00

12

0832121045
ref: 12

LOCK WASHER

€ 2.00

13

0910606062
ref: 13

BOLT

€ 3.00

14

6974027A31
ref: 14

TANK ASSEMBLY,RESERVOIR

€ 58.00

15

5966704700
ref: 15

DIAPHRAGM

€ 8.00

16

5966904710
ref: 16

CAP

€ 12.00

17

6968904A00
ref: 17

SCREW

€ 2.00

18

0110706128
ref: 18

BOLT

€ 2.00

19

6973127A00
ref: 19

HOSE,RESERVOIR TANK

€ 12.00

20

0940016302
ref: 20

CLAMP

€ 4.50

21

6948027A10
ref: 21

HOSE,REAR BRAKE

€ 104.50

22

0936010017
ref: 22

BOLT UNION

€ 6.50

23

0916110009
ref: 23

WASHER(10X15X1.5)

€ 2.00

24

6119606801
ref: 24

CLAMP

€ 0.00

25

0151705128
ref: 25

BOLT

€ 2.50
