REAR FENDER
GSX750R 1986 (G) GENERAL EXPORT (E01)

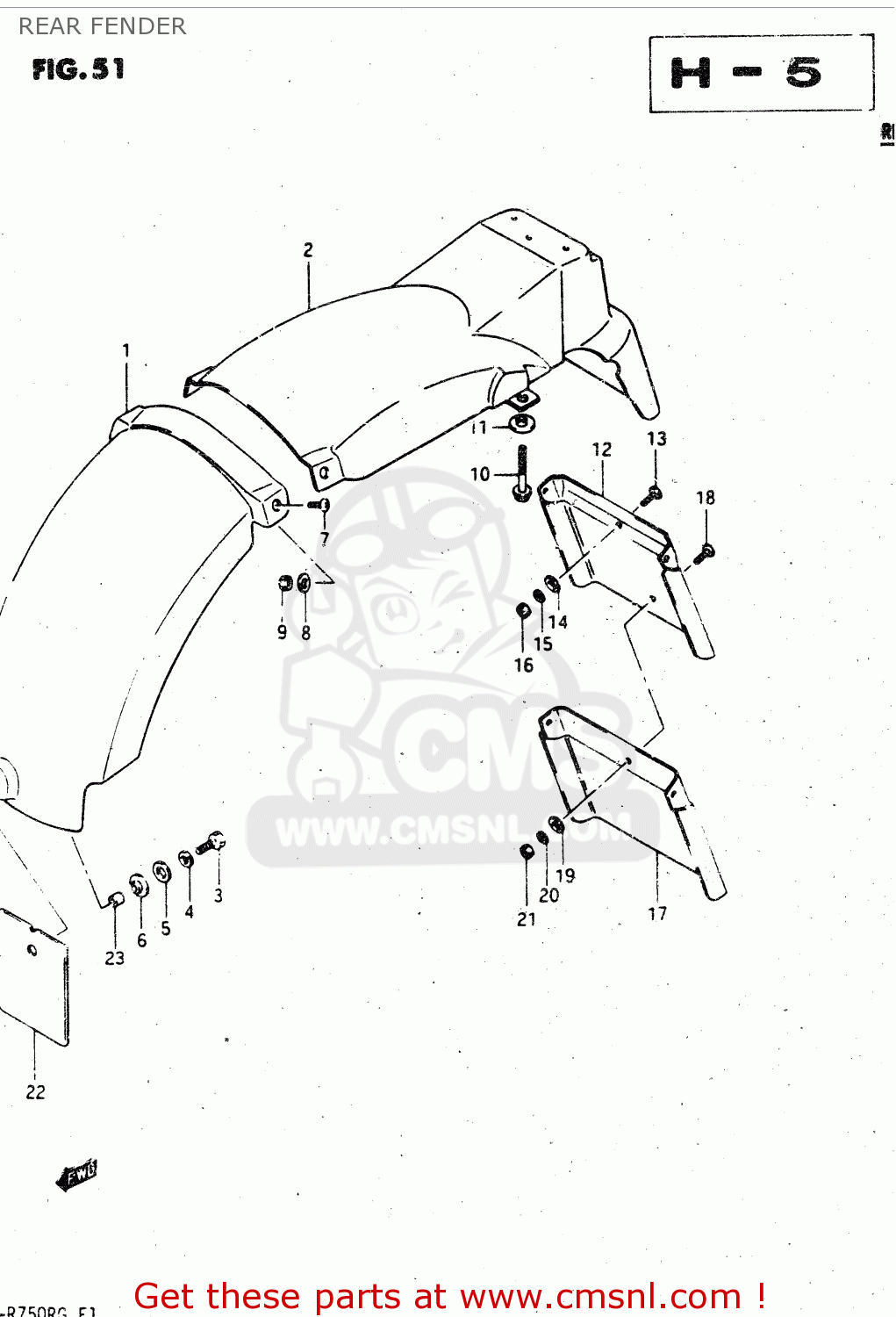

Rear fender diagram GSX750R 1986 (G) GENERAL EXPORT (E01)
REAR FENDER GSX750R 1986 (G) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1
6311227A30
ref: 1
FENDER,REAR
€ 59.00
2-1
6311306B00
ref: 2-1
FENDER,REAR
€ 83.00
2-2
6311306B20
ref: 2-2
E15,E16,E17,E18,E22
BODY, REAR FENDER REAR
€ 83.00
3
0110706307
ref: 3
BOLT 6X30
€ 2.50
4
0832121067
ref: 4
WASHER,LOCK
€ 2.50
5
0916006007
ref: 5
WASHER
€ 2.00
6
0916906038
ref: 6
WASHER
€ 2.50
7
0214206166
ref: 7
SCREW
€ 2.50
8
0916006006
ref: 8
WASHER
€ 2.00
9
0831921068
ref: 9
NUT 6MM
€ 2.00
10
0151708555
ref: 10
BOLT
€ 3.00
11
0916908034
ref: 11
WASHER
€ 2.00
12
6331127A20
ref: 12
E15,E16,E17,E18,E22
EXTENSION
€ 18.00
13
0214206125
ref: 13
E15,E16,E17,E18,E22
SCREW 6X12
€ 2.00
14
0916006006
ref: 14
E15,E16,E17,E18,E22
WASHER
€ 2.00
15
0832121066
ref: 15
E15,E16,E17,E18,E22
WASHER,LOCK
€ 2.00
16
0831022066
ref: 16
E15,E16,E17,E18,E22
NUT
€ 2.00
17
6333127A20
ref: 17
E15,E16,E17,E18,E22
MUD GUARD
€ 22.50
18
0214206165
ref: 18
E15,E16,E17,E18,E22
SCREW
€ 2.50
19
0916006019
ref: 19
E15,E16,E17,E18,E22
WASHER(6.5X16X1.2)
€ 1.50
20
0832121067
ref: 20
E15,E16,E17,E18,E22
WASHER,LOCK
€ 2.50
21
0831022066
ref: 21
E15,E16,E17,E18,E22
NUT
€ 2.00
22
6341127A00
ref: 22
MUD GUARD,REAR FENDER,FRONT
€ 9.50
23
0918006030
ref: 23
SPACER (6.8X10X10)
€ 2.00
