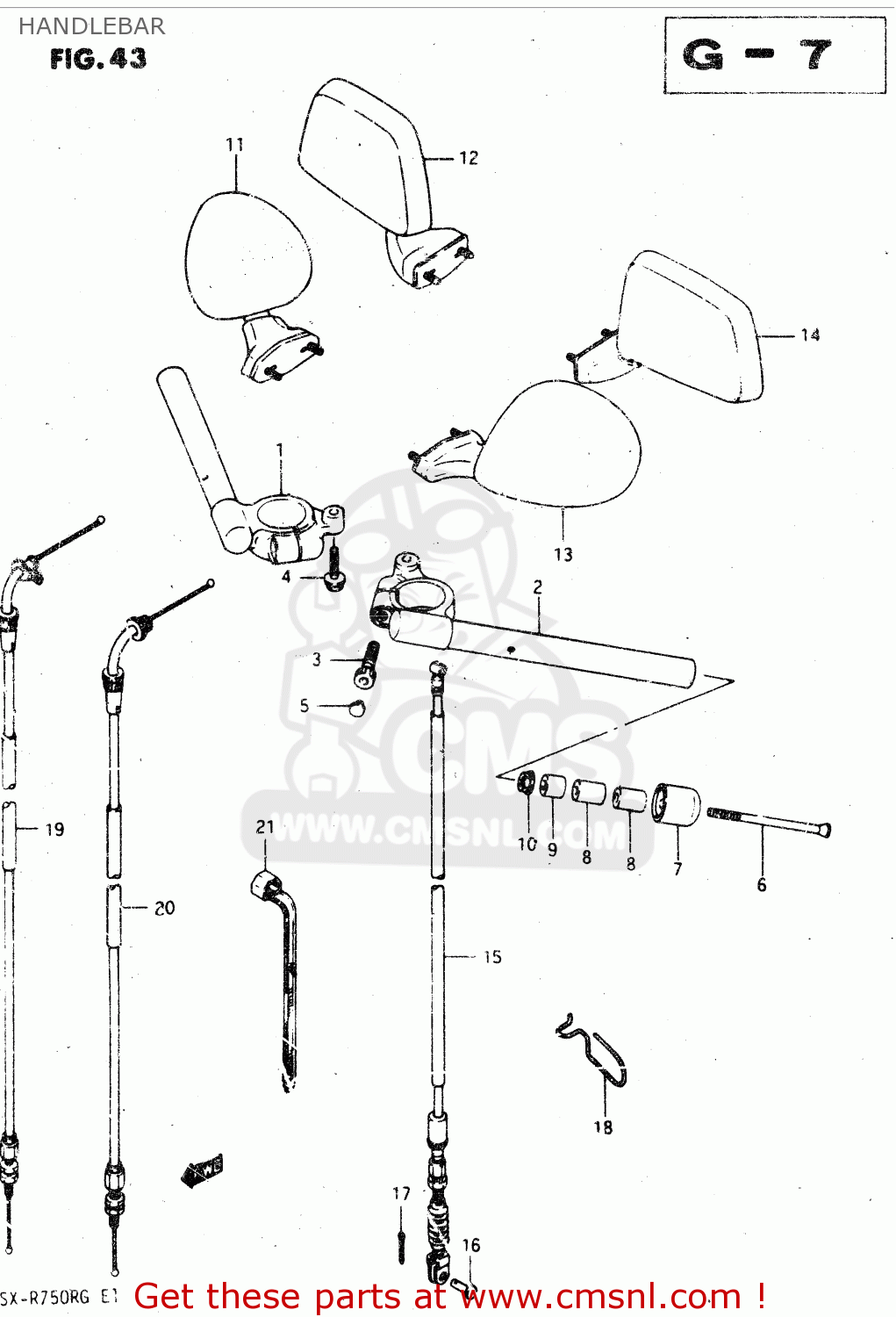

HANDLEBAR

ref

part #

description

quantity

1-1

5611127A40
ref: 1-1

HANDLEBAR,RIGHT

€ 263.50

1-2

5611127A50
ref: 1-2
E22

HANDLEBAR,RIGHT

€ 263.50

2-1

5615127A40
ref: 2-1

HANDLEBAR,LEFT

€ 263.50

2-2

5615127A50
ref: 2-2
E22

HANDLEBAR,LEFT

€ 263.50

3

0711008
ref: 3

BOLT, HANDLEBAR

€ 0.00

4

0151706205
ref: 4

BOLT

€ 2.50

5

0925006008
ref: 5

CAP(OD:10)

€ 3.00

6

0912706014
ref: 6

SCREW(6X85)

€ 7.50

7

5627427A00
ref: 7

CAP,BALANCER

€ 23.50

8

5627143500
ref: 8

BALANCER,HANDLEBAR INNER

€ 11.50

9

5627244500
ref: 9

EXPANDER,HANDLE BALANCER

€ 3.00

10

0915906024
ref: 10

NUT

€ 2.00

11-1

5650027A00
ref: 11-1

MIRROR ASSEMBLY,RIGHT

€ 55.00

11-2

5650027A20
ref: 11-2
E16,E18,E24

MIRROR ASSY, REAR VIEW RH

€ 55.00

12

5650027A10
ref: 12
E2,E4,E21,E22,E34

MIRROR ASSY,RH

€ 53.50

13-1

5660027A00
ref: 13-1

MIRROR ASSEMBLY,LEFT

€ 49.50

13-2

5660027A20
ref: 13-2
E16,E18,E24

MIRROR ASSY, REAR VIEW LH

€ 49.50

14

5660027A10
ref: 14
E2,E4,E21,E22,E34

MIRROR ASSY,LH

€ 53.50

15

5820027A00
ref: 15

CABLE ASSY,CLUTCH

€ 31.00

16

0920006011
ref: 16

PIN(L:15)

€ 2.50

17

0411120158
ref: 17

PIN

€ 1.50

18

5862627A10
ref: 18

GUIDE, CLUTCH CABLE

€ 0.00

19

5830027A30
ref: 19

CABLE ASSY, THROTTLE NO.2

€ 30.50

20

5830027A30
ref: 20

CABLE ASSY, THROTTLE NO.2

€ 30.50

21

0940718402
ref: 21

CLAMP(L:165)

€ 2.50

all assemblies
