CYLINDER

GSX750R 1986 (G) GENERAL EXPORT (E01)

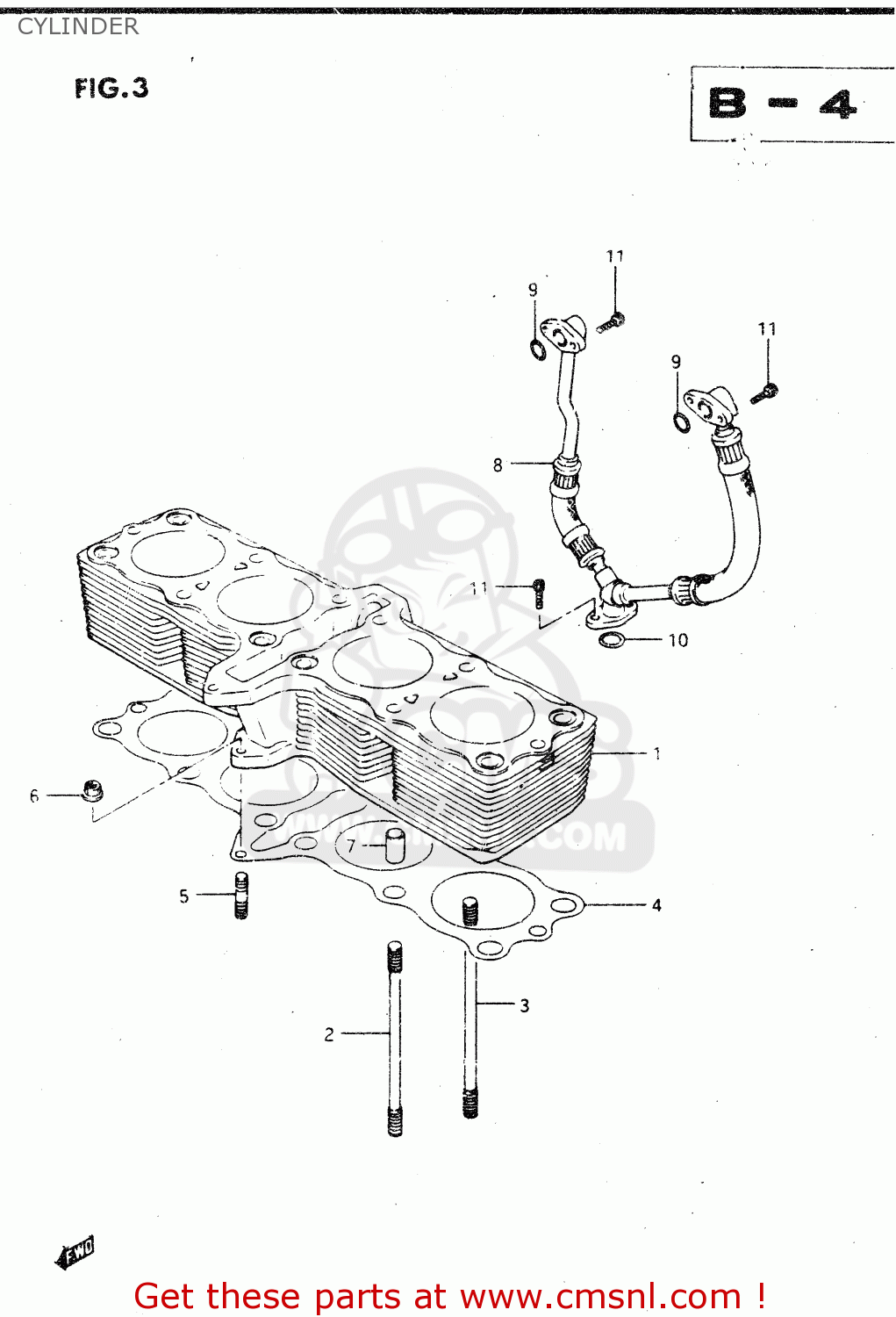

Cylinder diagram GSX750R 1986 (G) GENERAL EXPORT (E01)

CYLINDER GSX750R 1986 (G) GENERAL EXPORT (E01)

CYLINDER GSX750R 1986 (G) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

1121027A03
ref: 1

CYLINDER

€ 896.00

2

0910810074
ref: 2

STUD

€ 11.00

3

0910810073
ref: 3

BOLT,STUD

€ 9.50

4

1124127A02
ref: 4

GASKET,CYLINDER (NAS)

€ 20.00

5

0142106205
ref: 5

STUD BOLT L:20

€ 2.50

6

0831616064
ref: 6

NUT 6MM

€ 2.50

7

0920613006
ref: 7

PIN

€ 9.00

8

1132827A01
ref: 8

HOSE

€ 241.00

9

0928012008
ref: 9

O RING(D:2.4,ID:12.3)

€ 3.00

10

0928015007
ref: 10

O RING(D:2.4,ID:15.8)

€ 2.00

11

0711006165
ref: 11

BOLT

€ 3.00
