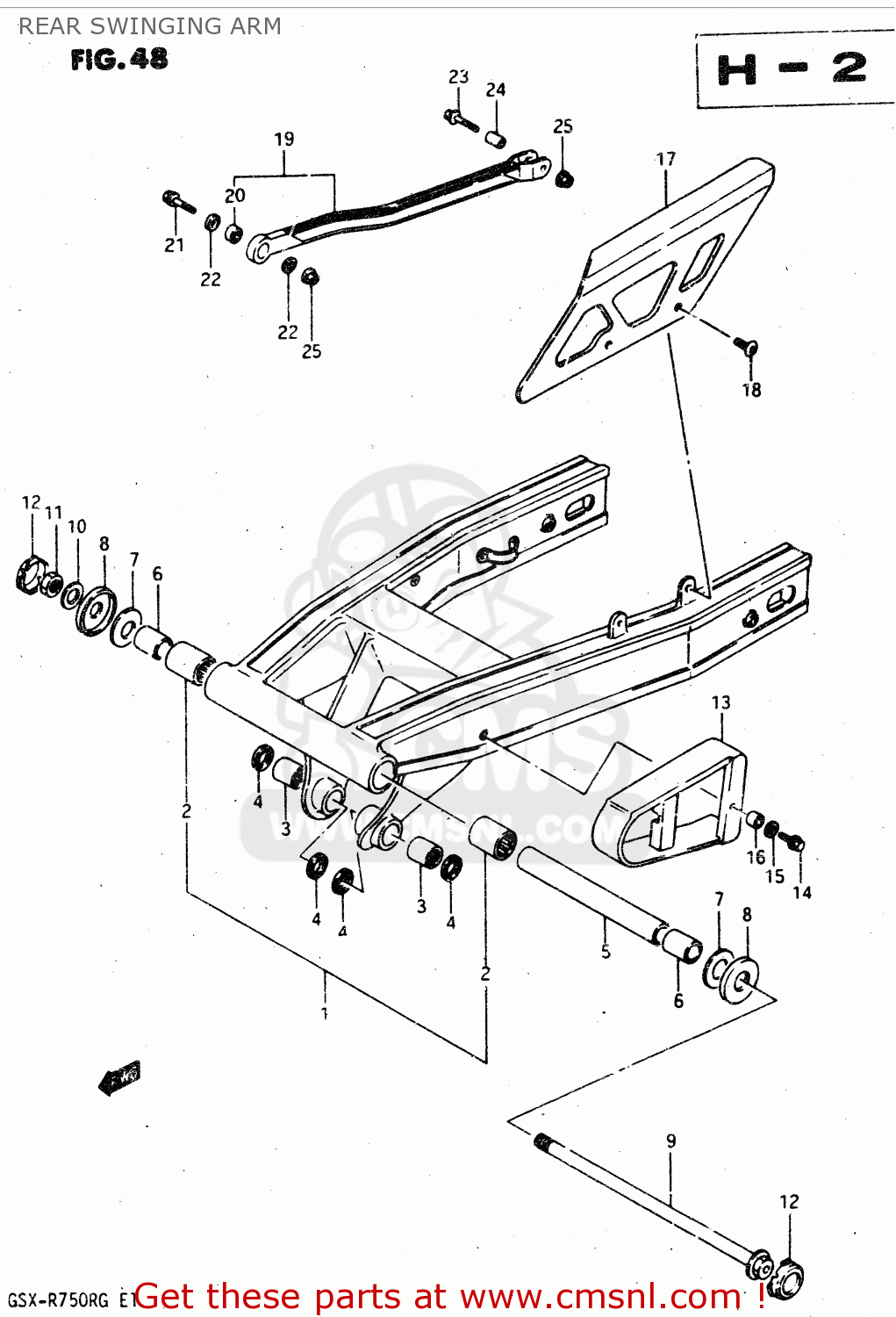

REAR SWINGING ARM

ref

part #

description

quantity

1

6100027A40
ref: 1

SWING ARM ASSEMBLY,REAR

€ 958.50

2

0924122025
ref: 2

BEARING

€ 0.00

3

0926317029
ref: 3

ROLLER BEARING (17X24X25))

€ 19.00

4

6264702B00
ref: 4

SPACER,REAR CUSHION ROD

€ 3.50

5

6128227A00
ref: 5

SPACER,RR SWGARM PIVOT CTR

€ 20.50

6

6125127A00
ref: 6

SPACER,RR SWGARM PIVOT BEARING

€ 23.00

7

0821116381
ref: 7

WASHER

€ 2.50

8

6126249000
ref: 8

COVER,RR SWGARM DUST SEAL

€ 17.50

9

6121127A01
ref: 9

SHAFT,REAR SWING ARM

€ 43.50

10

0916014015
ref: 10

WASHER(14X27X3)

€ 4.00

11

0915914013
ref: 11

NUT

€ 8.50

12

6122243400
ref: 12

CAP,SWINGINGARM PIVOT

€ 4.00

13

6127327A00
ref: 13

BUFFER,CHAIN TOUCH DEFENSE

€ 26.00

14

0110706206
ref: 14

BOLT,M6X1X20

€ 2.00

15

0916006019
ref: 15

WASHER(6.5X16X1.2)

€ 1.50

16

0918006135
ref: 16

SPACER(6.5X8.5X5.8)

€ 2.00

17

6131127A30
ref: 17

CASE,CHAIN

€ 167.50

18

0913906027
ref: 18

SCREW(6X12)

€ 3.00

19

6430027840
ref: 19

TORQUE LINK SET,REAR

€ 120.50

20

6435240411
ref: 20

SPHERICAL BEARING,TORQUE

€ 69.50

21

0910308178
ref: 21

BOLT(8X38)

€ 5.00

22

6433940410
ref: 22

6433940410

23

0910308142
ref: 23

BOLT(8X35)

€ 3.00

24

6433620A00
ref: 24

SPACER,RR TORQUE LINK RR

€ 8.00

25

0931931087
ref: 25

NUT

€ 0.00
