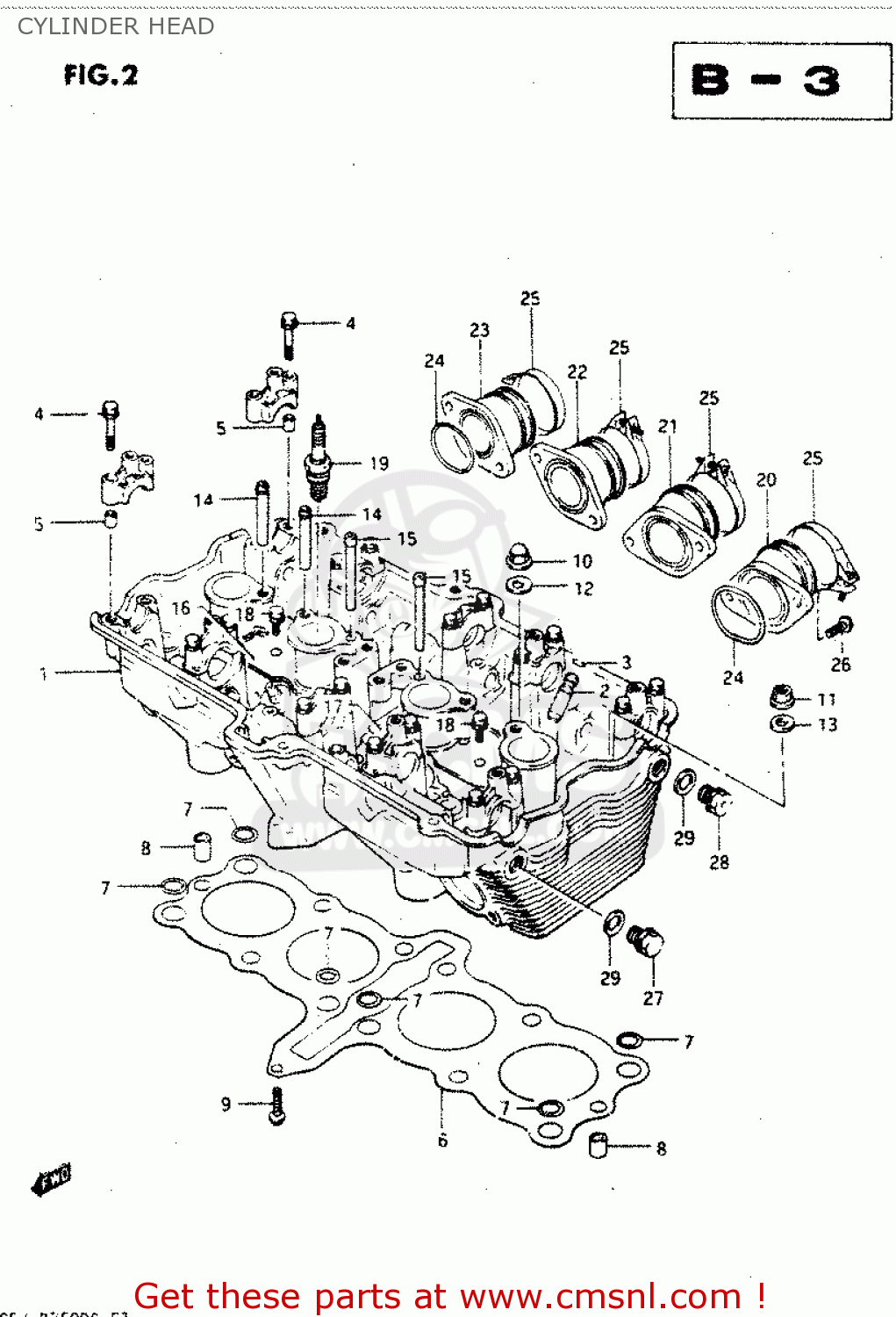

CYLINDER HEAD

ref

part #

description

quantity

1

1110027A04
ref: 1

HEAD ASSY, CYLINDER

€ 1,588.00

2

1111527A70
ref: 2

GUIDE,VALVE

€ 43.00

3

0938110004
ref: 3

RING,SNAP

€ 1.50

4

0910306026
ref: 4

BOLT(6X39)

€ 2.00

5

0920608001
ref: 5

PIN(6.2X8X11)

€ 2.00

6

1114127A01
ref: 6

GASKET,CYLINDER HEAD (NAS)

€ 99.50

7

0928012008
ref: 7

O RING(D:2.4,ID:12.3)

€ 3.00

8

0421111189
ref: 8

PIN

€ 2.00

9

0151706254
ref: 9

BOLT

€ 2.50

10

0915910054
ref: 10

NUT

€ 7.50

11

0831616106
ref: 11

NUT

€ 2.00

12

0916810031
ref: 12

GASKET(10.2X20X2).3 (NAS)

€ 2.00

13

0916010060
ref: 13

WASHER (10.5X22X2.3)

€ 2.50

14

1113127A00
ref: 14

PIPE,OIL NO.1

€ 6.00

15

1113327A00
ref: 15

PIPE,OIL NO.3

€ 7.00

16

1113527A02
ref: 16

PLATE,OIL PIPE,R

€ 4.00

17

1113627A02
ref: 17

PLATE,OIL PIPE,L

€ 4.00

18

0151706128
ref: 18

BOLT

€ 2.50

19-1

0948200184
ref: 19-1

SPARK PLUG D9EA

€ 6.50

19-2

0948200221
ref: 19-2
E2,E4,E15,E16,E17,E1

PLUG,SPARK(DR8ES)

€ 5.50

20-1

1311027A00
ref: 20-1
LH

PIPE,INTAKE

€ 37.00

20-2

1310127A10
ref: 20-2
E18,LH

PIPE, INTAKE NO.1

€ 37.00

21-1

1312027A00
ref: 21-1
ML

PIPE,INTAKE

€ 49.50

21-2

1310227A10
ref: 21-2
E18,ML

PIPE, INTAKE NO.2

€ 49.50

22-1

1313027A00
ref: 22-1
MR

NET,INTAKE

€ 37.00

22-2

1310327A10
ref: 22-2
E18,MR

PIPE, INTAKE NO.3

€ 37.00

23-1

1314027A00
ref: 23-1
RH

PIPE,INTAKE

€ 39.00

23-2

1310427A10
ref: 23-2
E18,RH

PIPE, INTAKE NO.4

€ 39.00

24

1311527A01
ref: 24
EXCEPT E18

O RING(D:2.4,ID:39.7)

€ 3.50

25

0940250208
ref: 25

CLAMP

€ 5.00

26

0215206165
ref: 26

SCREW

€ 2.00

27

0924714034
ref: 27

PLUG

€ 3.50

28

0924714032
ref: 28

PLUG

€ 5.00

29

0916814004
ref: 29

GASKET(14X19.2X2) (NAS)

€ 2.50
