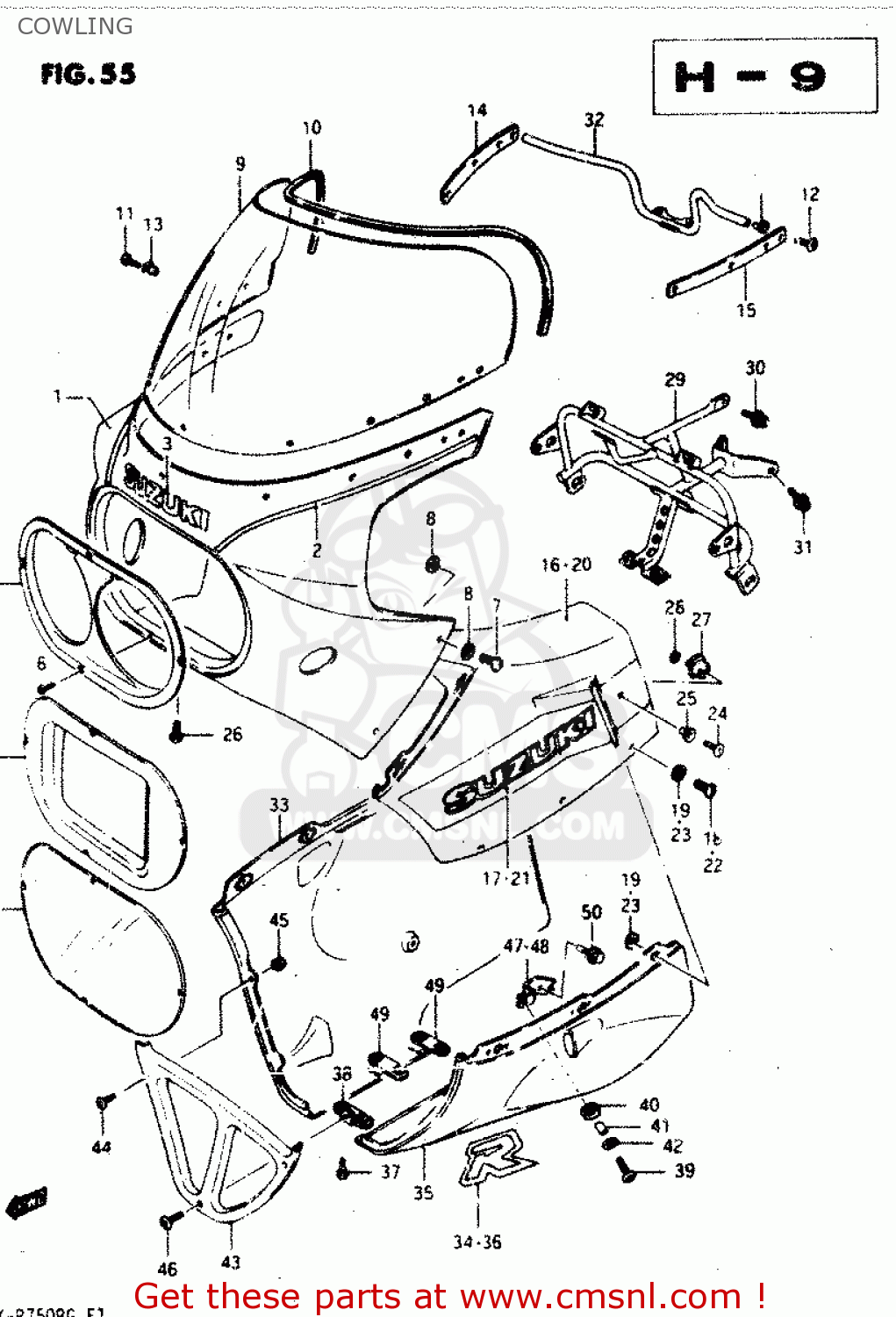

ref
part #
description
quantity
1-1
BODY ASSEMBLY,COWLING SUB
1-2
BODY ASSY, COWLING (WHITE/BLUE)
2
TAPE SET,BODY COWLING STRIPE
3
EMBLEM,COVER SEAT TAIL
4
COVER,COWLING FR
5
COVER, FRONT (BLUE)
6
SCREW
7
FASTENER
8
WASHER,FASTENER
10-1
MOLDING,SCREEN
11
SCREW(5X14)
12
SCREW(5X18)
13
NUT,COWLING SCREEN
14
PLATE,RR VIEW MIRROR,R
15
PLATE,RR VIEW MIRROR,L
16-1
COVER, SIDE RH (WHITE/BLUE)
16-2
COVER ASSEMBLY,COWLING
17
TAPE SET,SIDE COWLING,S,RIGHT
18
FASTENER
19
WASHER,FASTENER
20-1
COVER, SIDE LH (WHITE/BLUE)
20-2
COVER,COWLING SIDE,LEFT
21
TAPE SET,SIDE COWLING,S,LEFT
22
FASTENER
23
WASHER,FASTENER
24
SCREW(6X12)
25
WASHER
26
SCREW(6X16)
27
CUSHION,COWLING
28
WASHER,LOCK
29
BRACE,COWLING FR
32
BRACE,COWLING BODY RR
33
COVER,COWLING,LOWER,RIGHT
35
COVER,COWLING,LOWER,LEFT
37
SCREW(6X16)
38
BRACE,COWLING LWR COVER
39
SCREW(6X20)
40
CUSHION
41
SPACER
42
WASHER(6.5X18X1)
43
COVER,COWLING,LOWER,FRONT
44
SCREW(5X14)
45
NUT
46
SCREW(6X16)
47
BRACE,COWLING LWR,R
48
BRACE,COWLING LWR,L
49
BRACE,COWLING LWR COVER RR
51
COVER,HEADLAMP
