WIRING HARNESS
GSX750R 1986 (G) GENERAL EXPORT (E01)

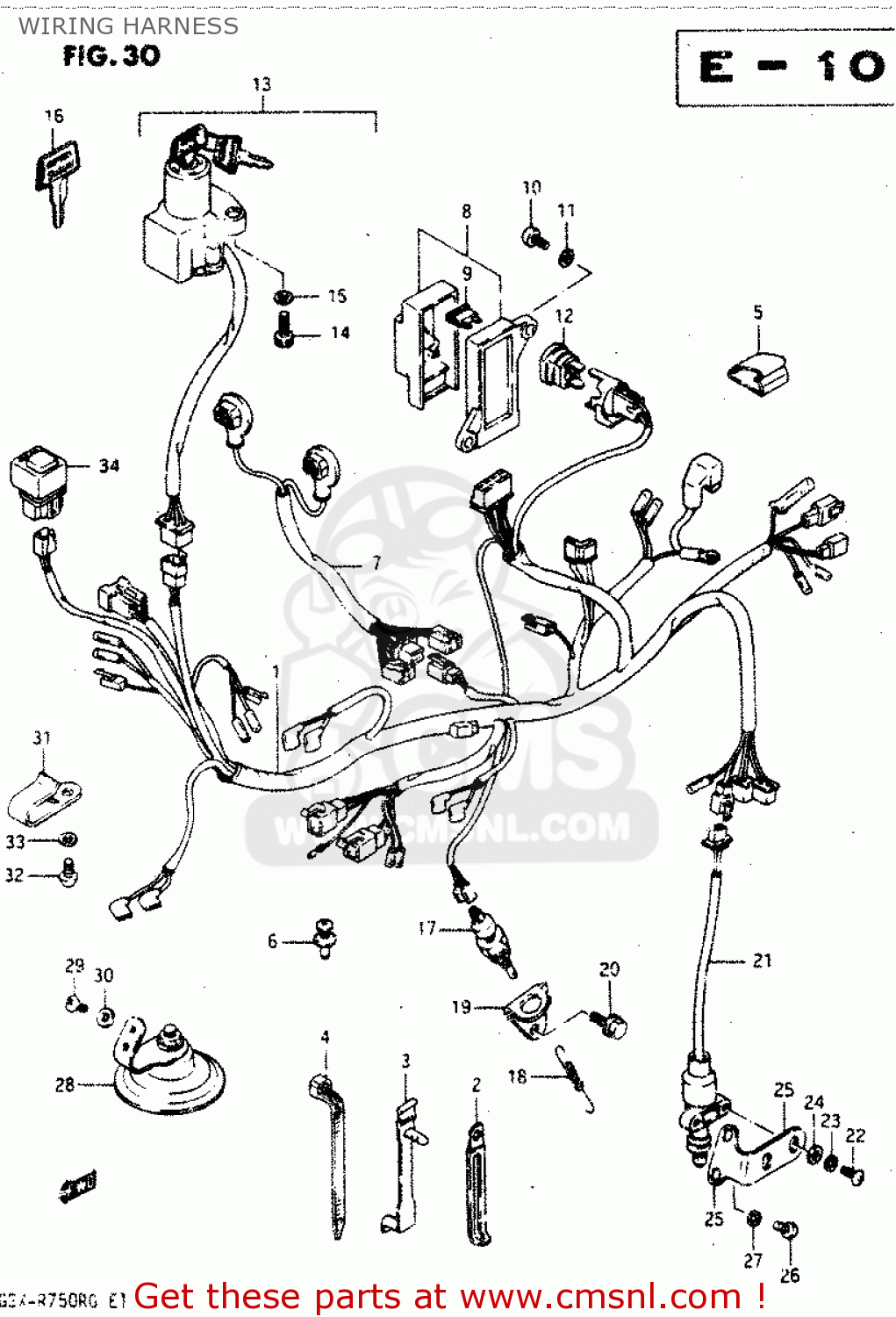

Wiring harness diagram GSX750R 1986 (G) GENERAL EXPORT (E01)
WIRING HARNESS GSX750R 1986 (G) GENERAL EXPORT (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661027A50
ref: 1-1
HARNESS,WIRING
€ 342.00
1-2
3661027A60
ref: 1-2
E15,E16,E18,E22
HARNESS, WIRING
€ 342.00
2
0940906415
ref: 2
CLAMP
€ 0.00
3
0940707401
ref: 3
CLAMP(L:55)
€ 1.50
4-1
0940711401
ref: 4-1
CLAMP(L:95)
€ 2.50
4-2
0940714403
ref: 4-2
CLAMP(L:125)
€ 2.50
4-3
0940718402
ref: 4-3
CLAMP(L:165)
€ 2.50
4-4
0940725403
ref: 4-4
CLAMP
€ 4.00
5
0940800052
ref: 5
CLIP
€ 0.00
6
0940907305
ref: 6
CLIP
€ 1.50
7-1
3685606B10
ref: 7-1
E1,E24
WIRE
€ 72.50
7-2
3685606B00
ref: 7-2
E2,E16,E21,
WIRE, HEADLAMP LEAD
€ 72.50
7-3
3685606B20
ref: 7-3
E4,E15,E17,E22,E39
WIRE, HEADLAMP LEAD
€ 0.00
7-4
3685606B30
ref: 7-4
E18,E34
WIRE, HEADLAMP LEAD
€ 0.00
8
3674005A01
ref: 8
BOX ASSEMBLY,FUSE
€ 77.50
9
0948110101
ref: 9
FUSE(10A)
€ 2.50
10
0211206128
ref: 10
SCREW 6X12
€ 2.00
11
0832221067
ref: 11
WASHER
€ 2.00
12
3675005A00
ref: 12
BREAKER ASSY,CIRCUT
€ 36.50
13
3711006B00
ref: 13
SWITCH ASSY,IGNITION
€ 148.00
14
3715247011
ref: 14
BOLT
€ 3.00
15
0832121067
ref: 15
WASHER,LOCK
€ 2.50
16
3714516700
ref: 16
OPT
KEY,BLANK
€ 11.00
17
3774024A00
ref: 17
SWITCH ASSY,STOP LAMP
€ 20.50
18
0944306056
ref: 18
SPRING
€ 3.50
19
4325127A00
ref: 19
BRACKET,STOP LAMP SWITCH
€ 3.50
20
0154706208
ref: 20
BOLT (6X20)
€ 2.50
21
3784014A01
ref: 21
SWITCH ASSY,SIDE STAND WARN
€ 75.00
22
0211205205
ref: 22
SCREW 5X20
€ 2.50
23
0832121055
ref: 23
WASHER,LOCK
€ 3.00
24
0832221055
ref: 24
WASHER,5MM
€ 2.50
25
4236127A00
ref: 25
BRACKET,PROP STAND WARNING
€ 3.50
26
0211206128
ref: 26
SCREW 6X12
€ 2.00
27
0832121067
ref: 27
WASHER,LOCK
€ 2.50
28-1
3850028A00
ref: 28-1
HORN ASSEMBLY
€ 0.00
28-2
3850028A20
ref: 28-2
E4,E18,E34,E39
HORN ASSY
€ 0.00
29
0211206104
ref: 29
SCREW
€ 1.50
30
0832221064
ref: 30
WASHER
€ 2.00
31
3661906B00
ref: 31
CLAMP,HANDLE SWITCH LEVER
€ 4.00
32
0211206125
ref: 32
SCREW
€ 1.50
33
0832121064
ref: 33
WASHER,LOCK
€ 2.00
34
3864006B00
ref: 34
RELAY, ANTINOSE DIVE FORK
€ 37.50
