SEAT

GSX750R 1986 (G) GENERAL EXPORT (E01)

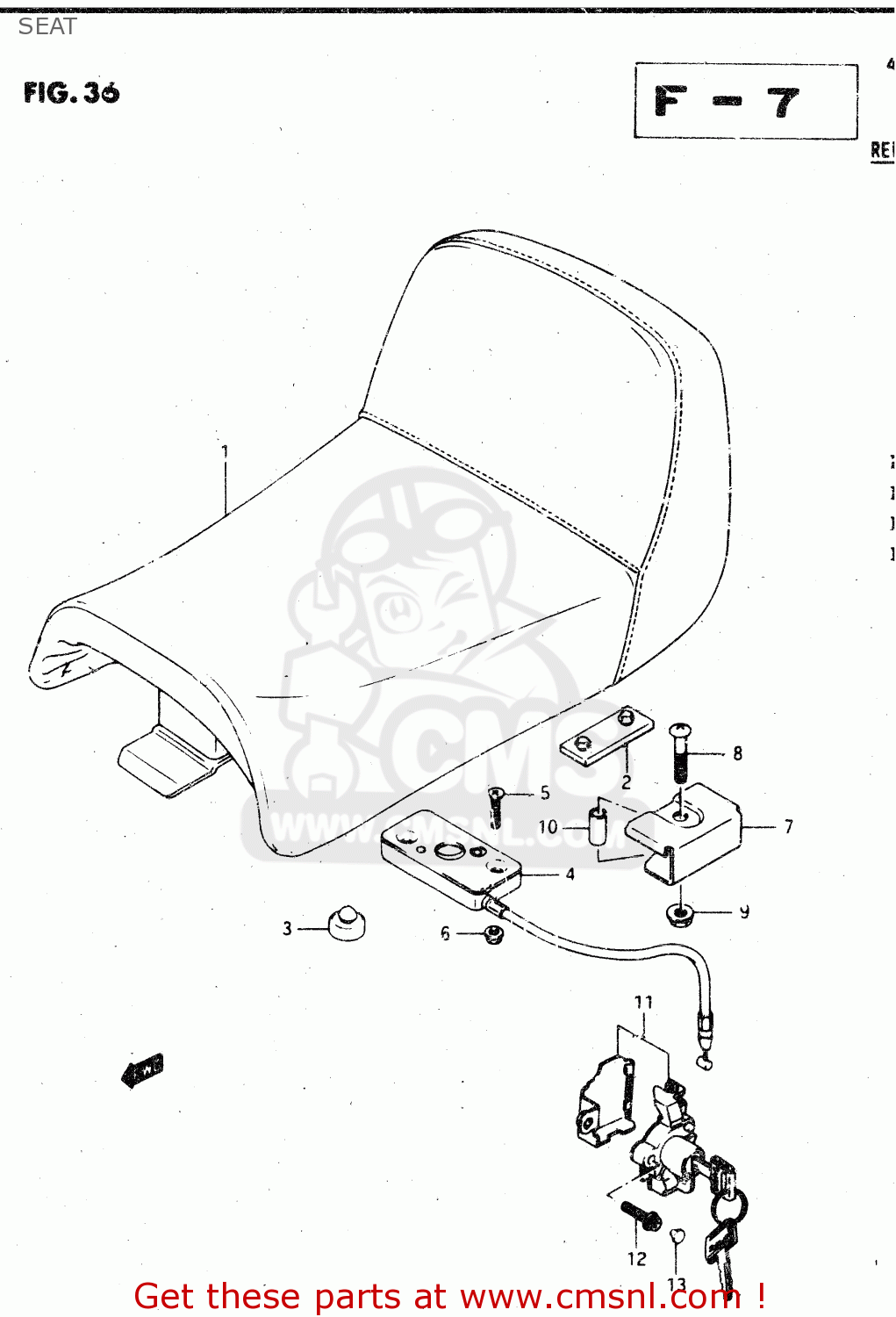

Seat diagram GSX750R 1986 (G) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

SEAT ASSEMBLY

€ 370.00

0932116710
ref: 2

CUSHION

€ 4.00

0932110002
ref: 3

CUSHION(11.5X22X20)

€ 2.00

4522027A01
ref: 4

BRACKET,SEAT SUPPORT,R

€ 20.50

0211206255
ref: 5

SCREW

€ 1.50

0831626065
ref: 6

NUT

€ 2.00

4513827A30
ref: 7

PLATE,SEAT CUSHION

€ 0.00

0214206357
ref: 8

SCREW

€ 2.00

0831931067
ref: 9

NUT

€ 2.50

0918006185
ref: 10

SPACER (6.4X9X17.5)

€ 0.00

LOCK SET

€ 65.50

0712006205
ref: 12

PLUG ,6X20

€ 3.50

0925005009
ref: 13

CAP(OD:10)

€ 2.50
