FRONT MASTER CYLINDER

GSX750R 1986 (G) GENERAL EXPORT (E01)

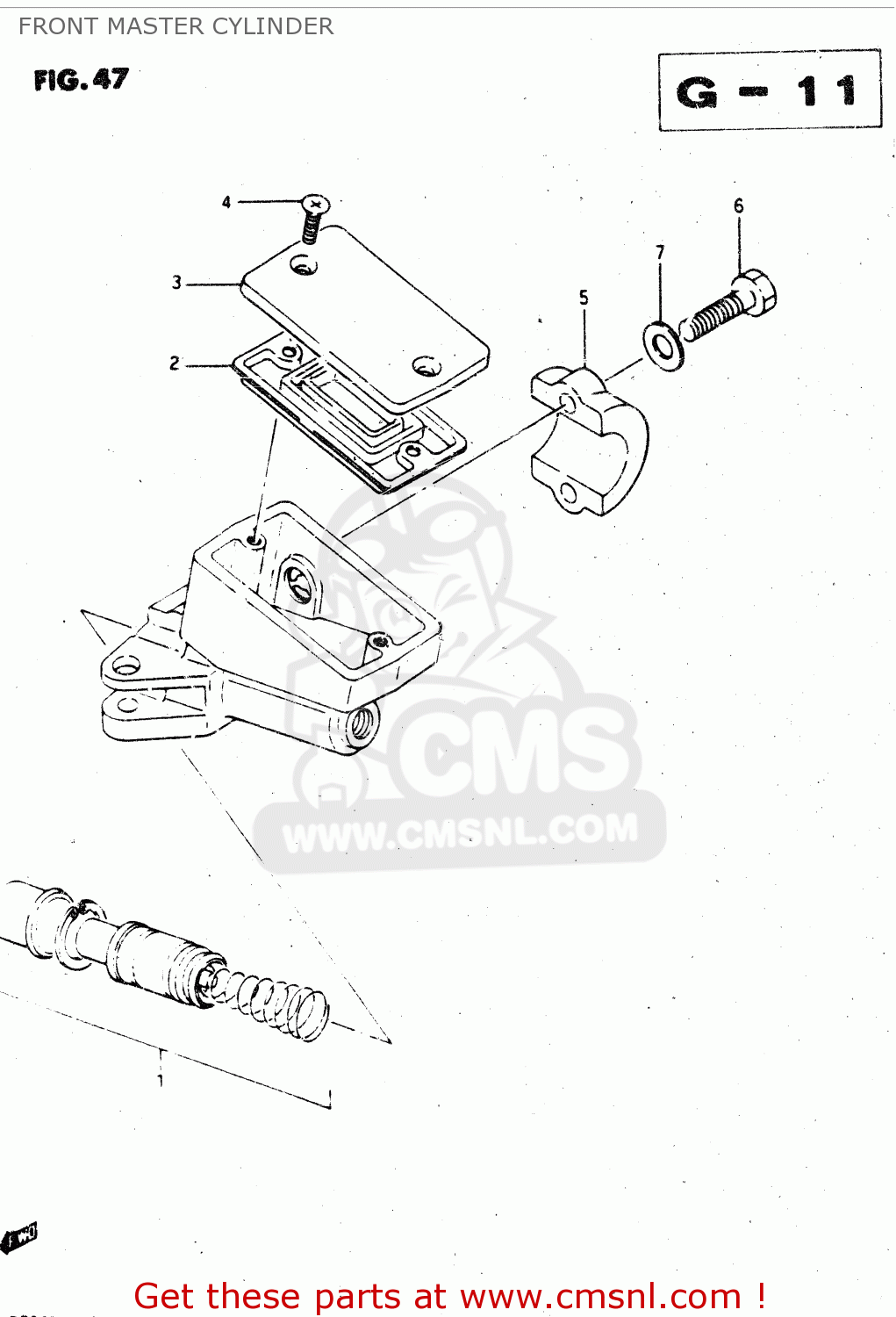

Front master cylinder diagram GSX750R 1986 (G) GENERAL EXPORT (E01)

FRONT MASTER CYLINDER GSX750R 1986 (G) GENERAL EXPORT (E01)

FRONT MASTER CYLINDER GSX750R 1986 (G) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

0

5960008A10
ref: 0

CYLINDER ASSEMBLY,FRONT MASTER

€ 150.00

1

5960045860
ref: 1

PISTON & CUP SET

€ 44.00

2

5966749460
ref: 2

5966749460

3

5966904A10
ref: 3

CAP

€ 30.00

4

6968949300
ref: 4

SCREW

€ 1.50

5

5967116700
ref: 5

HOLDER,MASTER CYLINDER

€ 18.50

6

0110706255
ref: 6

BOLT

€ 2.50

7

0832221064
ref: 7

WASHER

€ 2.00
