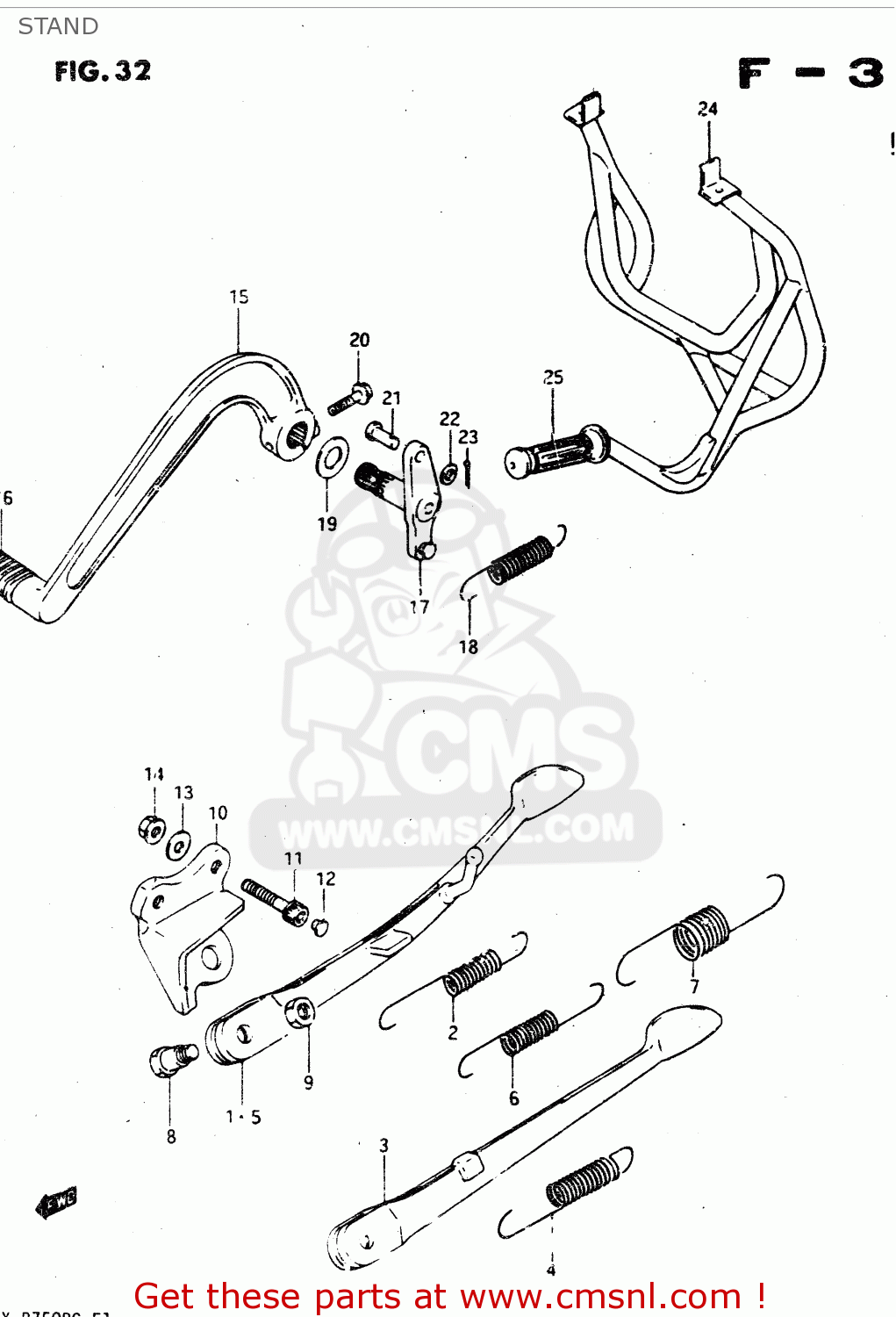

STAND

ref

part #

description

quantity

1

4231027A0113L
ref: 1

STAND,SIDE

€ 59.50

2

0944314040
ref: 2

SPRING

€ 4.00

3

4231027A1113L
ref: 3
E2,E15,E16,E18

STAND, PROP (SILVER)

€ 0.00

4

0944318016
ref: 4
E2,E15,E16,E18

SPRING

€ 21.00

5

4231027A2113L
ref: 5
E22

STAND, PROP (SILVER)

€ 0.00

6

0944314030
ref: 6
E22

SPRING

€ 6.00

7

0944322003
ref: 7
E22

SPRING

€ 7.00

8

0911110036
ref: 8

BOLT(10X38)

€ 5.50

9

0831022108
ref: 9

NUT

€ 2.50

10-1

4233027A0113L
ref: 10-1

BRACKET,SIDE STAND

€ 40.50

10-2

4233027A1113L
ref: 10-2
E2,E15,E16,E18,E22

BRACKET, PROP STAND (SILVER)

€ 29.50

11

0711008338
ref: 11

BOLT

€ 0.00

12

4157504A00
ref: 12

CAP,ENGINE MOUNTING

€ 2.00

13

0916408015
ref: 13

WASHER

€ 3.00

14

0831616088
ref: 14

NUT

€ 2.50

15

4311027A01
ref: 15

PEDAL,BRAKE

€ 129.00

16

4315104701
ref: 16

RUBBER,BRAKE PEDAL

€ 6.00

17

4312027A00
ref: 17

ARM COMP,BRAKE ROD

€ 28.50

18

0944314044
ref: 18

SPRING

€ 4.00

19

4321204A00
ref: 19

WASHER,BRAKE PEDAL

€ 2.00

20

0154706208
ref: 20

BOLT (6X20)

€ 2.50

21

0920006037
ref: 21

PIN

€ 5.00

22

0832221067
ref: 22

WASHER

€ 2.00

23

0411120158
ref: 23

PIN

€ 1.50

24

4210027A30
ref: 24
OPT

STAND,CENTER

€ 0.00

25

5721149510
ref: 25
OPT

GRIP,L

€ 26.50

all assemblies
