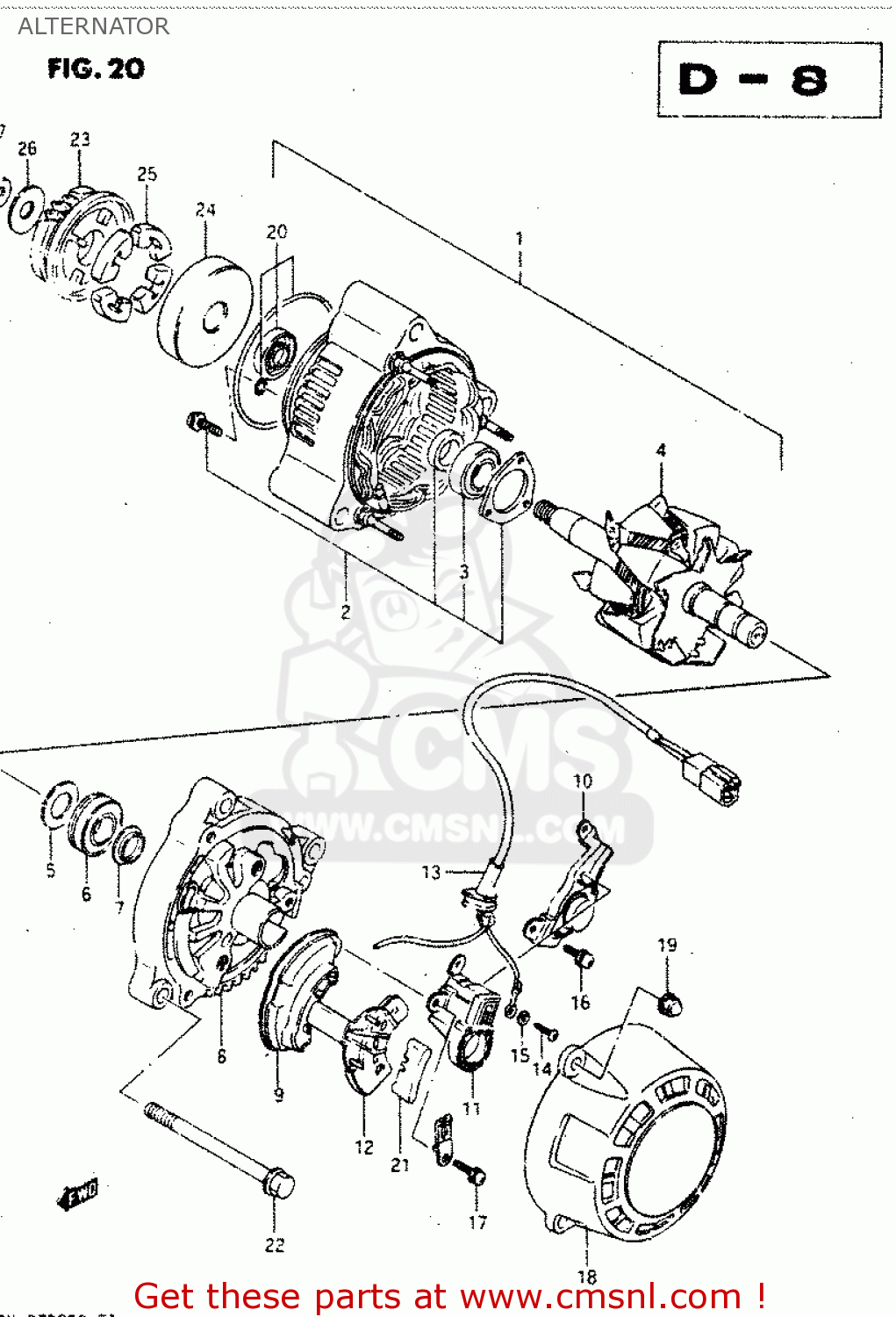

ALTERNATOR

ref

part #

description

quantity

1

3140006B00
ref: 1

ALTERNATOR ASSEMBLY

€ 1,063.50

2

3158006B00
ref: 2

FRAME,DRIVE END

€ 1,063.50

3

3161206B00
ref: 3

BEARING

€ 36.50

4

3171006B00
ref: 4

ROTOR

€ 176.00

5

3161327A00
ref: 5

COVER (2)

€ 3.50

6

3161227A00
ref: 6

BALL BEARING,ALTERNATOR

€ 42.50

7

3161327A10
ref: 7

COVER(2)

€ 5.50

8

3161106B00
ref: 8

FRAME,END

€ 102.00

9

3162127A00
ref: 9

HOLDER,RECTIFIER

€ 225.50

10

3250027A00
ref: 10

REGULATOR

€ 321.00

11

3165606B00
ref: 11

HOLDER,BRUSH

€ 55.50

12

3168727A00
ref: 12

COVER,RECTIFIER

€ 4.50

13

3148027A00
ref: 13

WIRE,LEAD

€ 22.00

14

0211204086
ref: 14

SCREW

€ 2.00

15

0832121046
ref: 15

LOCK WASHER

€ 2.00

16

3168827A00
ref: 16

SCREW

€ 2.50

17

3168806B00
ref: 17

SCREW

€ 2.50

18

3161427A00
ref: 18

COVER

€ 75.50

19

3169227A00
ref: 19

NUT

€ 1.50

20

3178006B00
ref: 20

OIL SEAL SET

€ 47.50

21

3151427A00
ref: 21

BUSH

€ 4.50

22

0151708905
ref: 22

BOLT (8X90)

€ 3.50

23

2273027A01
ref: 23

GEAR,GENERATOR DRIVEN

€ 183.50

24

2273327A03
ref: 24

HOUSING,GENERATOR GEAR

€ 95.00

25

2123106B00
ref: 25

DAMPER,GENERATOR DRIVEN

€ 5.50

26

0821110283
ref: 26

WASHER

€ 3.00

27

0831626106
ref: 27

NUT

€ 3.50
