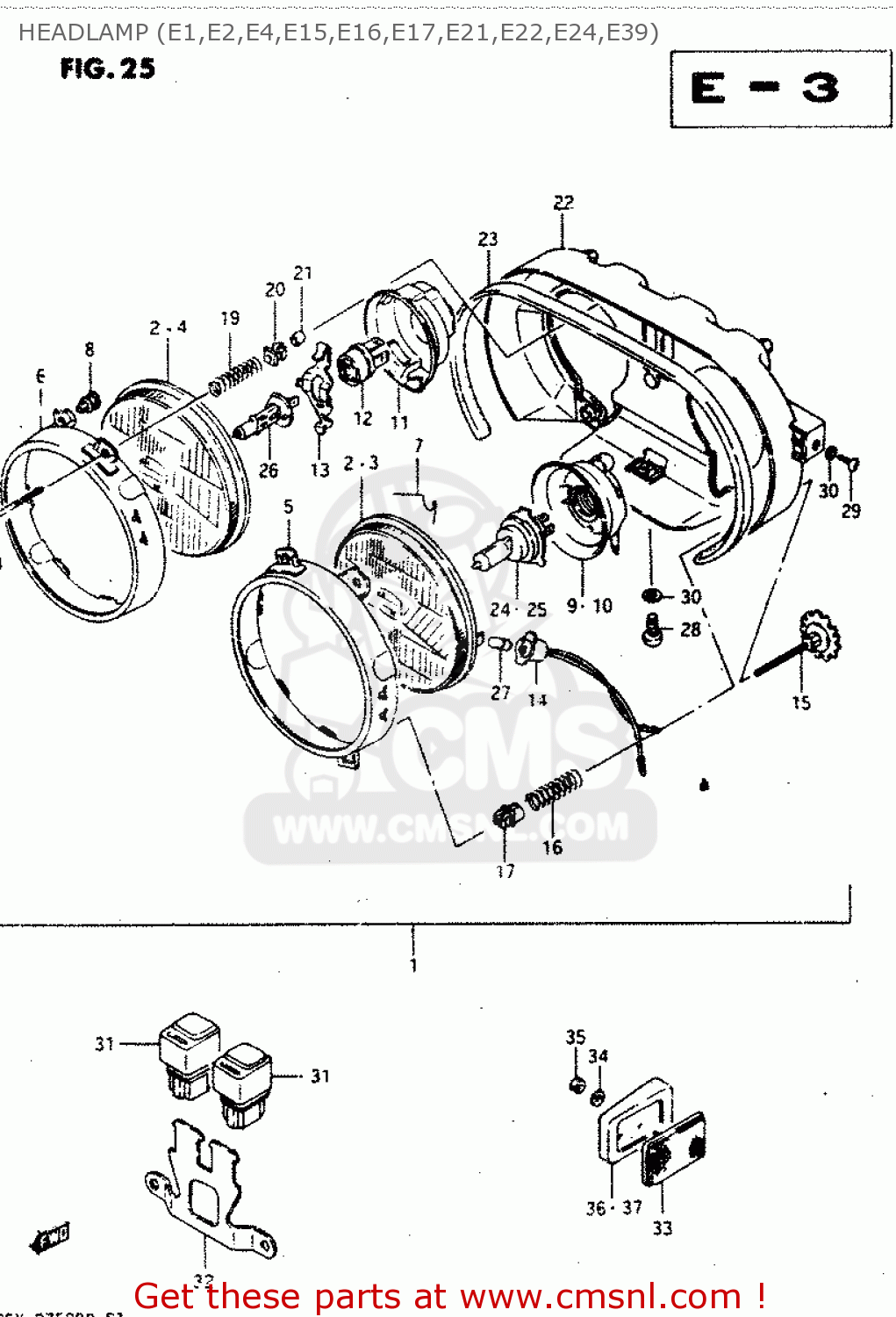

HEADLAMP (E1,E2,E4,E15,E16,E17,E21,E22,E24,E39)

ref

part #

description

quantity

1-1

3510006B30999
ref: 1-1
E1,E24

HEADLAMP ASSY

€ 306.00

1-2

3510006B00999
ref: 1-2
E2

HEADLAMP ASSY

€ 325.00

1-3

3510006B40999
ref: 1-3
E4

HEADLAMP ASSY

€ 0.00

1-4

3510006B50999
ref: 1-4
E15,E17,E22,E39

HEADLAMP ASSY

€ 328.00

1-5

3510006B60999
ref: 1-5
E16,E21

HEADLAMP ASSY

€ 0.00

2-1

3512106B30
ref: 2-1
E1,E24

LAMP UNIT

€ 109.00

2-2

3512106B00
ref: 2-2
E2

UNIT

€ 82.00

2-3

3512106B50
ref: 2-3
E16,E21

LAMP UNIT,L

€ 80.50

3

3512106B50
ref: 3
E4,E15,E17,E22,E39

LAMP UNIT,L

€ 80.50

4-1

3522106B40
ref: 4-1
E4

UNIT, RH

€ 0.00

4-2

3522106B50
ref: 4-2
E15,E17,E22,E39

UNIT, RH

€ 81.00

5

3912627A00
ref: 5

RING, RETAINING LH

€ 0.00

6

3512727A00
ref: 6

RING,RETAINING,RIGHT

€ 24.00

7

3512046720
ref: 7

SPRING, SUPPORT

€ 0.00

8

3516204A00
ref: 8

SCREW,SPHERICAL

€ 2.00

9

3517320A01
ref: 9
E1,E2,E16,E21,E24

COVER,SOCKET

€ 14.50

10

3517320A01
ref: 10
E4,E15,E17,E22,E39

COVER,SOCKET

€ 14.50

11

3517306B50
ref: 11
E4,E15,E17,E22,E39

COVER, SOCKET,LH

€ 10.00

12

3517506B50
ref: 12
E4,E15,E17,E22,E39

ADAPTER

€ 8.50

13

3517206B50
ref: 13
E4,E15,E17,E22,E39

SPRING,PLATE

€ 10.00

14-1

3611804A00
ref: 14-1
E2

SOCKET

€ 11.50

14-2

3611030500
ref: 14-2
E16,E21

SOCKET

€ 0.00

14-3

3611804A00
ref: 14-3
E4,E15,E17,E22,E39

SOCKET

€ 11.50

15

3515327A00
ref: 15

SCREW,ADJUSTER

€ 3.50

16

3515404A00
ref: 16

SPRING

€ 4.00

17

3515227A00
ref: 17

NUT

€ 3.00

18

3515104A00
ref: 18

SCREW,ADJUSTER

€ 4.00

19

3515404A00
ref: 19

SPRING

€ 4.00

20

3515504A00
ref: 20

NUT

€ 5.50

21

3515843400
ref: 21

CAP,SCREW

€ 2.00

22

3524027A02
ref: 22

HOUSING,HEADLAMP

€ 76.50

23

3524227A00
ref: 23

GASKET (NAS)

€ 12.50

24

0947112060
ref: 24
E1,E2,E16,E21,E24

BULB(12V60/55W,H4)

€ 8.00

25-1

0947112061
ref: 25-1
E4,EXECUTED LOCALLY

BULB (12V, 60/55W, H4)

€ 0.00

25-2

0947112060
ref: 25-2
E15,E17,E22,E39

BULB(12V60/55W,H4)

€ 8.00

26

0947112122
ref: 26
E4,E15,E17,E22,E39 E

BULB(12V55W/H1/P14.5S/OSRA,PHI

€ 4.00

27-1

0947112063
ref: 27-1
E2,E16,E21

BULB(12V4W)

€ 6.00

27-2

0947112063
ref: 27-2
E4,E15,E17,E22,E39

BULB(12V4W)

€ 6.00

28

0211206166
ref: 28

SCREW

€ 2.00

29

0211206106
ref: 29

SCREW

€ 1.50

30

0832121066
ref: 30

WASHER,LOCK

€ 2.00

31-1

3864006B00
ref: 31-1
E1,E2,E16,E21,E24

RELAY, ANTINOSE DIVE FORK

€ 37.50

31-2

3864006B00
ref: 31-2
E4,E15,E17,E22,E39

RELAY, ANTINOSE DIVE FORK

€ 37.50

32

3864106B00
ref: 32

BRACKET,HEADLAMP RELAY

€ 7.50

33

3595001A30
ref: 33
E39

REFLEX REFLECTOR, FRONT SIDE

€ 9.00

34

0832221055
ref: 34
E39

WASHER,5MM

€ 2.50

35

0831012055
ref: 35
E39

NUT ,5MM

€ 2.50

36

3595427A00
ref: 36
E39

SPACER,FRONT SIDE,REAR,RIGHT

€ 3.50

37

3595527A00
ref: 37
E39

SPACER,FRONT SIDE,REAR,LEFT

€ 0.00
